Pin No Pin definition

1 Alarm-in 1

2 Alarm-in 2

3 Alarm-in 3

4 Alarm-in 4

5 COM

6 NC

7 NO

8 Do not connect to any cable.

9 GND

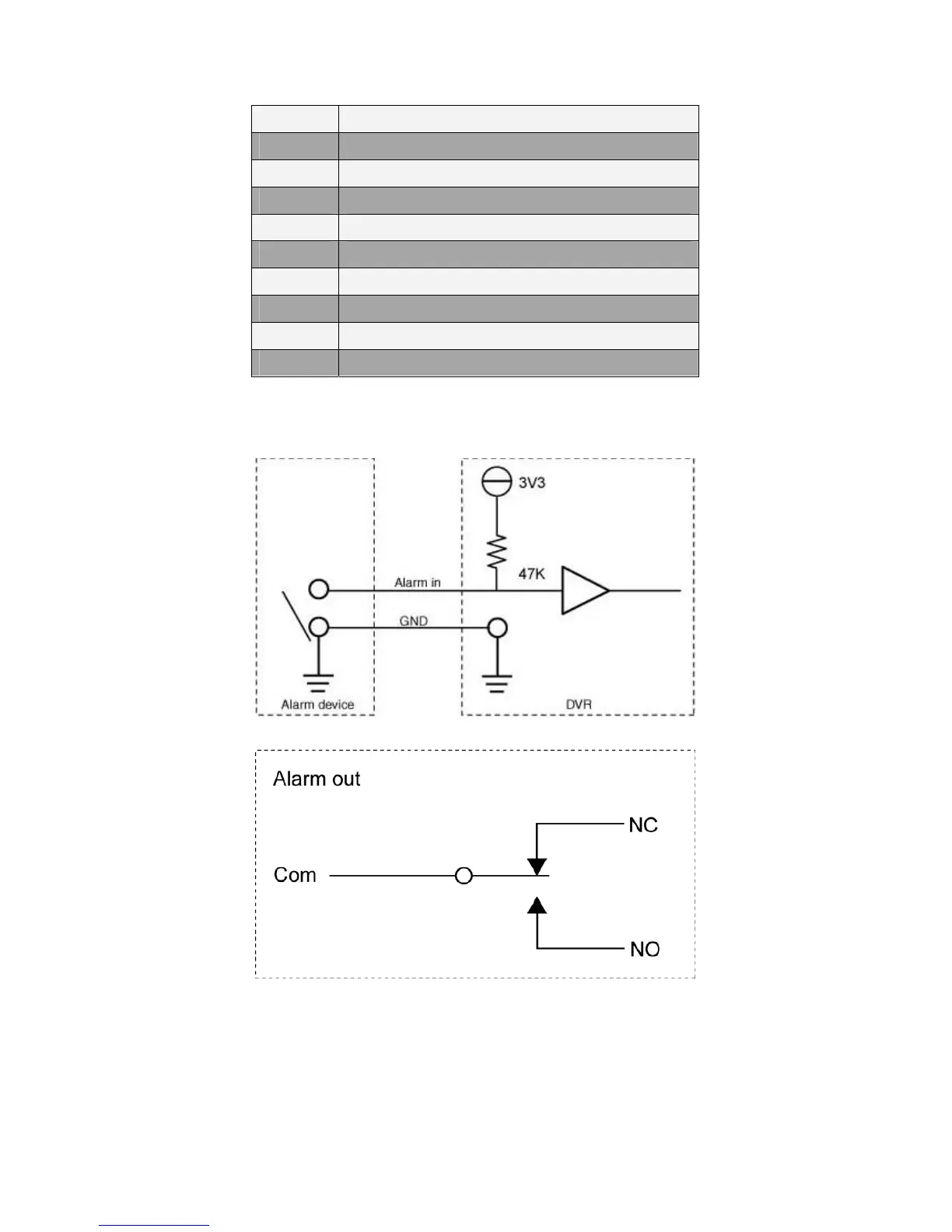

larm figures

(normal open) or NC (normal close) alarm device:

A

Connect to NO
