SecurView DVR4CHSOUH264 - Rear Panel; Alarm Installation

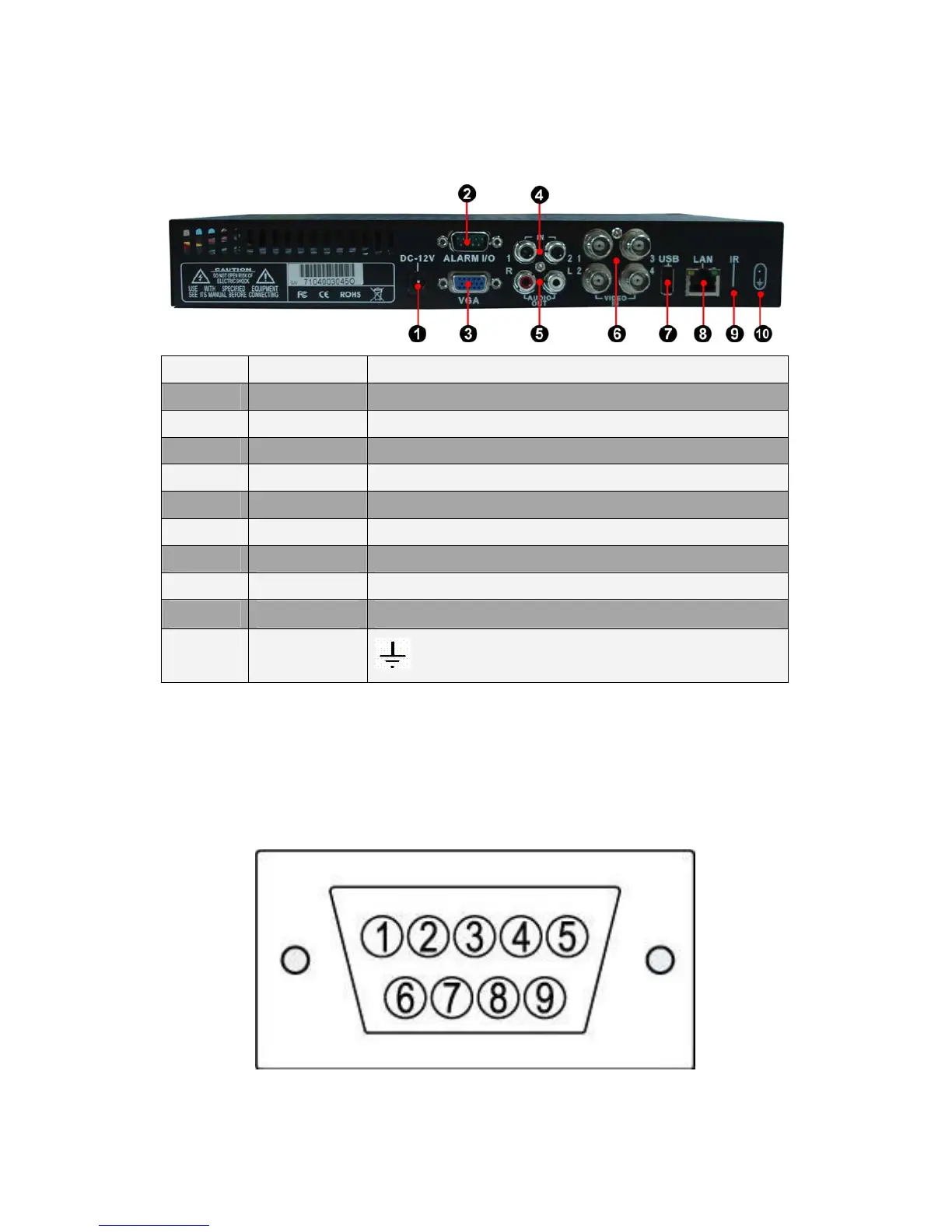

Rear Panel
Item Name Description
1 Power DC 12V
2 D-SUB 9-pin For alarm device: Relay, NO, NC
3 VGA Video output
4 Audio in RCAx2 (1Vp-p)
5 Audio out RCA (L, R) (1Vp-p)
6 BNC input BNC video input x 4
7 USB port For mouse control
8 LAN RJ-45
9 IR IR extension jack
10 GND
GND hole
Alarm Installation
Pin Definition
