Secutron MR-2312-DDR User Manual

20
Mechanical Installation
5.2 MMX-BBX-1024DS and MMX-BBX-1024DSR Mechanical
Installation
The MMX-BBX-1024DS and MMX-BBX-1024DSR are suitable for flush or surface mounting,
and have a built-in trim ring.

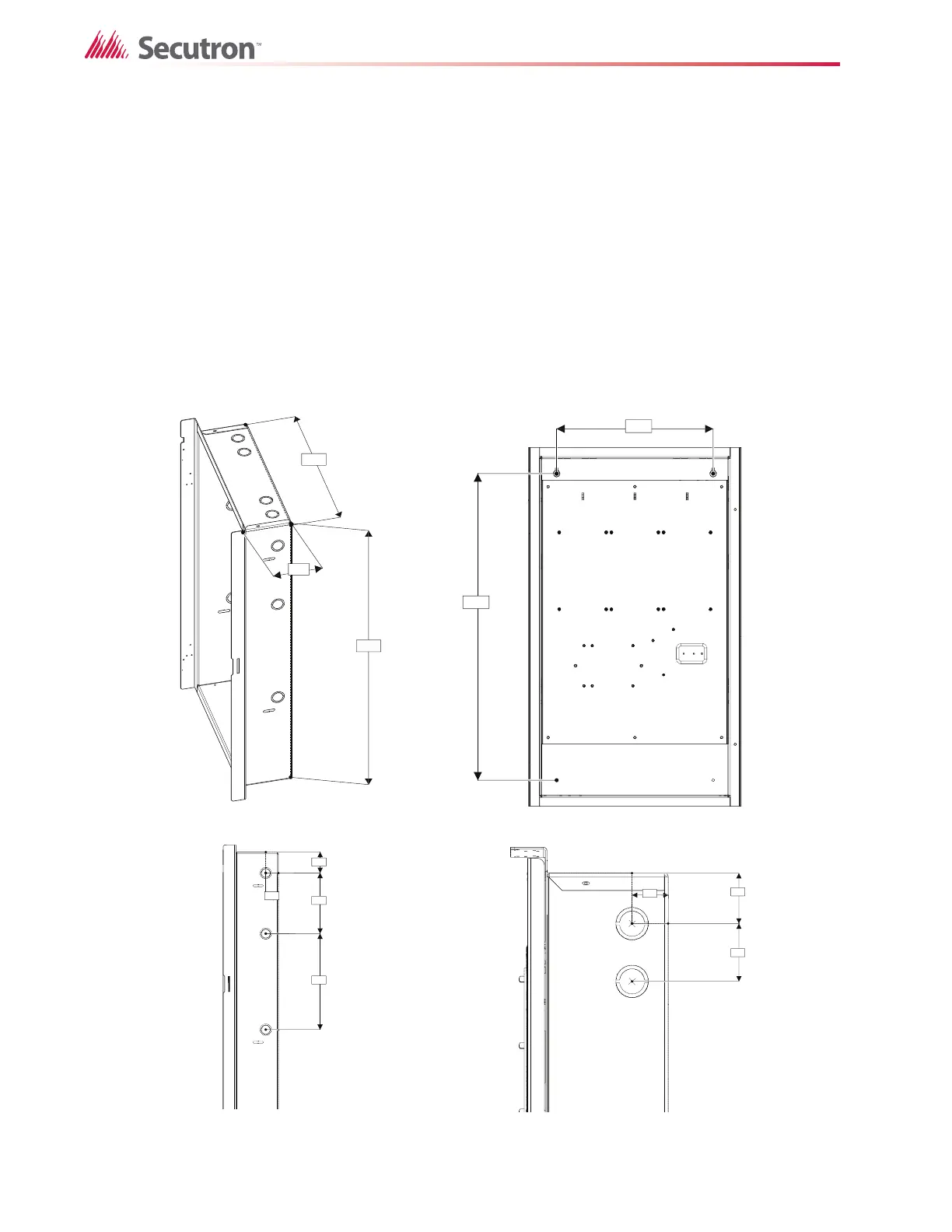

Figure 5 MMX-BBX-1024DS and MMX-BBX-1024DSR Installation Instructions and
Dimensions
Dimensions of Enclosure (minus built in trim ring) 14.5” x 4.2” x 26”
Distance between horizontal mounting screws 12”
Distance between vertical mounting screws 23.5”
Complete Dimensions of Enclosures 16.3” x 5.5” x 27.5”
26.0 "
14.5 "
4.2 "
External Dimensions
12.0 "
23.5 "
Mounting Dimensions
2.1 "
1.3 "
6.0 "
9.5 "
Side View
1.3 "
1.7 "
2.0 "
Top View
