Sega Initial D4 User Manual

86
PARTS LIST
19
ITEM NO. PART NO. DESCRIPTION NOTE
1 TFF-2501 MECHA BASE
2 TOF-2502 MECHA BASE LID
3 TFF-2502 HANDLE SHAFT
4 TFF-2503 SPACER COLLAR A
5 TFF-2504 STOPPER BLOCK A
6 TFF-2505 STOPPER BLOCK B
7 TFF-2506 SPACER COLLAR B
8 TFF-2507 STOPPER BOLT S
9 TFF-2508-01 STOPPER RUBBER S
10 TFF-2509 STOPPER BLOCK SHAFT
11 SPG-2505 PULLEY 60 S5M
12 DYN-1270 STOPPER KEY
13 TFF-2511 STOPPER HOLDER
14 TFF-2512 STOPPER RUBBER
15 TFF-2513 STOPPER BOLT
16 TFF-2514 VR BRKT
17 TOF-2515 GEAR HOLDER
18 601-6172 GEAR 48
19 SPG-2504 PULLEY 20 S5M
20 ORA-2503 MOTOR BRKT
21 SPG-2453 KEY 4×4×40
22 ORA-2507 MOTOR SHAFT COLLAR
23 253-5592 MOTOR INSULATOR A
24 253-5593 MOTOR INSULATOR B
25 TFF-2515 SPACER COLLAR C
101 350-5805-01 SERVO MOTOR Y21C-5010S
102 220-5484 VOL CONT B-5K OHM
102 220-5753 VOL CONT B-5K OHM (TOCOS)
103 310-5029-F20 SUMITUBE F F 20MM
104 601-11089 TIMING BELT (150 S5M 520)
105 100-5168 BEARING 20 (NSK 6904ZZ)
106 100-5285 BEARING 20(6804ZZ)
107 280-5275-SR10 CORD CLAMP SR10
201 028-A00408-P SET SCR HEX SKT CUP P M4×8
202 030-000820-S HEX BLT W/S M8×20
203 065-S012S0-Z STP RING BLK OZ S12
204 000-P00410-W M SCR PH W/FS M4×10
205 030-000612-S HEX BLT W/S M6×12
206 060-F00600 FLT WSHR M6
207 030-000840-S HEX BLT W/S M8×40
208 068-852216 FLT WSHR 8.5-22×1.6
209 050-U00800 U NUT M8
210 060-F00800 FLT WSHR M8
211 012-P00412 TAP SCR #2 PH 4×12
212 050-U00400 U NUT M4
213 020-000612-0Z HEX SKT H CAP SCR BLK 0Z M6×12
214 060-S00600 SPR WSHR M6
215 FAS-650021 WAVE WSHR WW-20
301 600-6866-01 WIRE HARN ASSY HANDLE MECHA VR

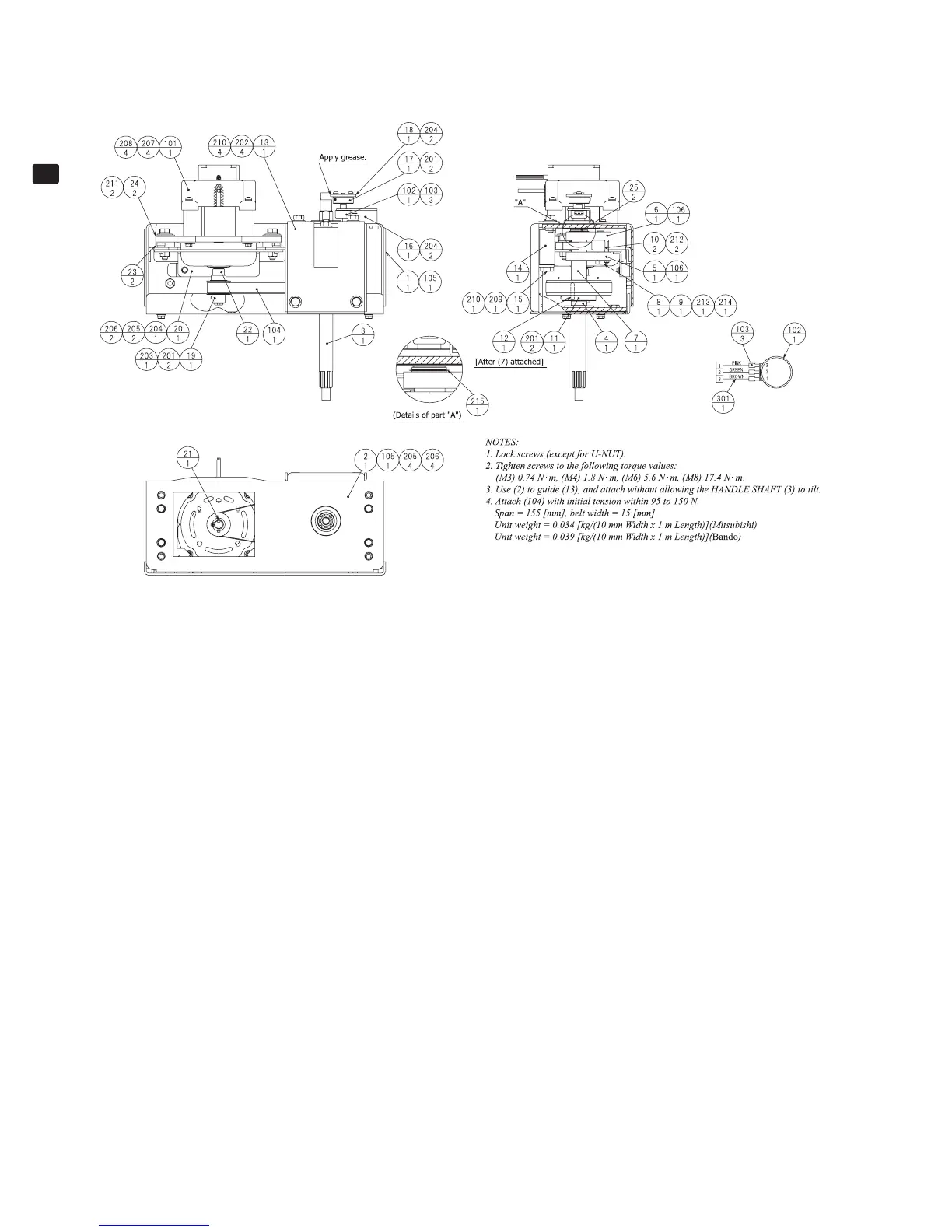

ASSY HANDLE MECHA (TFF-2500-01)
