PARTS LIST
19

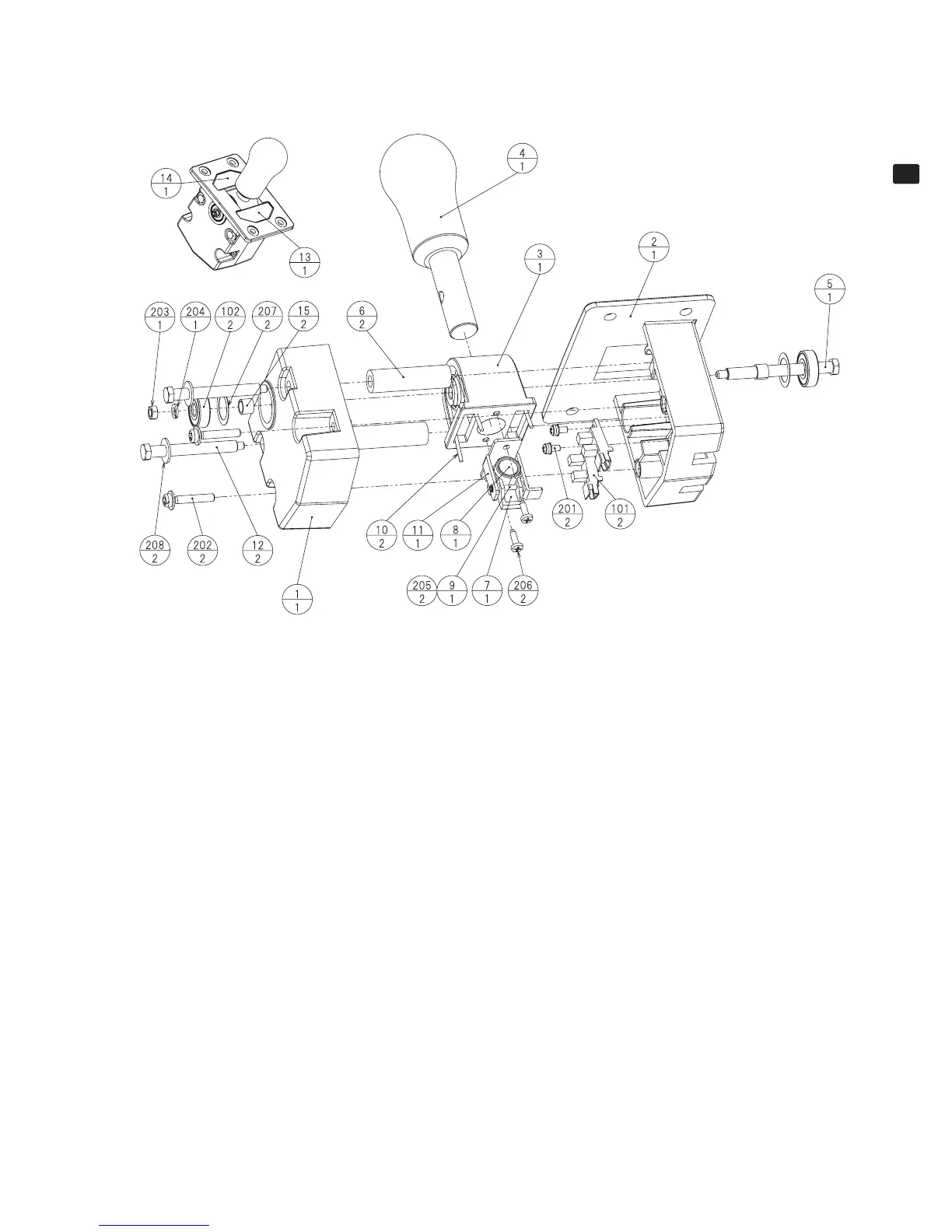

ASSY UP/DOWN SHIFTER (TFF-2400)
ITEM NO. PART NO. DESCRIPTION NOTE
1 TFF-2401 SHIFTER BASE R
2 TFF-2402 SHIFTER BASE L
3 TFF-2403 BOSS
4 TFF-2404 SHIFT LEVER
5 TFF-2405 LEVER SHAFT
6 TFF-2406 STOPPER RUBBER
7 TFF-2407 MAGNET HOLDER
8 TFF-2408 MAGNET
9 TFF-2409 KNOCK SHAFT
10 TFF-2410 CENTERING SPRING
11 TFF-2411 KNOCK BASE
12 TFF-2412 STOPPER SHAFT
13 TFF-2413 DESIGN PLT SHIFT UP
14 TFF-2414 DESIGN PLT SHIFT DOWN
15 TFF-2415 SPACER
101 370-5297 PHOTO INTERRUPTER GP1A75EJ000F
102 100-5301 BEARING 6 (626ZZ)
201 FAS-000142 M SCR PH W/SMALL FS M3×6
202 000-P00420-W M SCR PH W/FS M4×20
203 050-H00400 HEX NUT M4
204 060-S00400 SPR WSHR M4
205 065-E00150 E RING 1.5MM
206 FAS-120037 TAP SCR P-TITE BI H 3×10
207 FAS-650020 WAVE WSHR BWW-626
208 FAS-680030 FLT WSHR 6-13×1
To Next Page
