72
COIN HANDLING
12

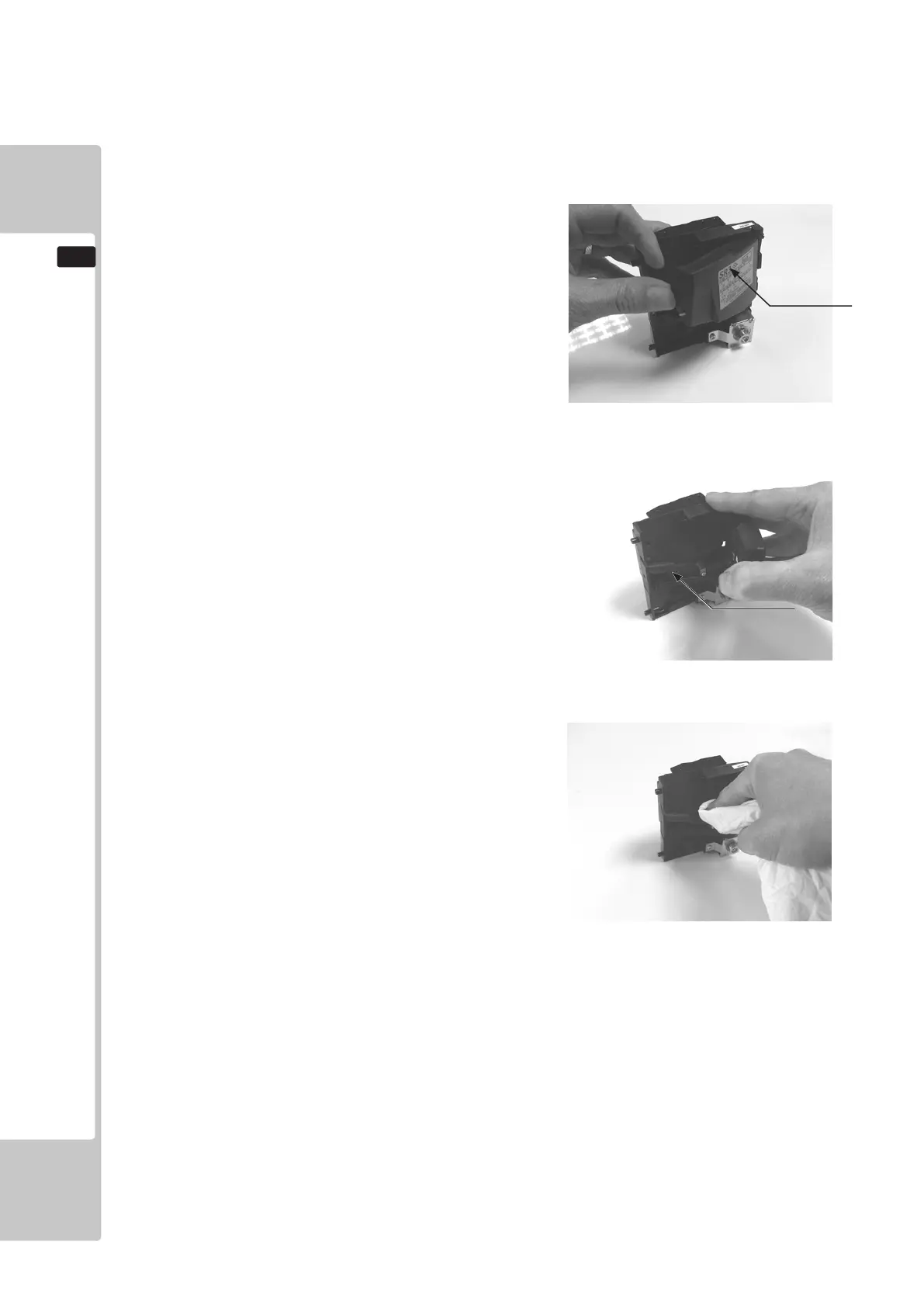

FIG . 12-1d
FIG . 12-1e
FIG . 12-1f
Pictures for illustration purposes only..
Model shown is SR3 Coin validator. Visual differences
between models but process remain the same.
Remove and clean smears by using a damp soft
cloth dipped in water. DO NOT use any diluted
chemical detergent or cleansing agent as this will
impair the workings of the component.
Open the reject gate to gain access to the rundown
path.
Remove the dirt and stains from the runway by
wiping off with a soft damp cloth.
After wiping off as per previous step, further apply
a dry cloth to completely dry the coin Selector.
CLEANING THE COIN SELECTOR (SR3/NRI)
1
2
3
4
GATE
RUNWAY
