Seintek S2401 User Manual
4
of 1
of 1 rating
78 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
2-1
1
2.2.

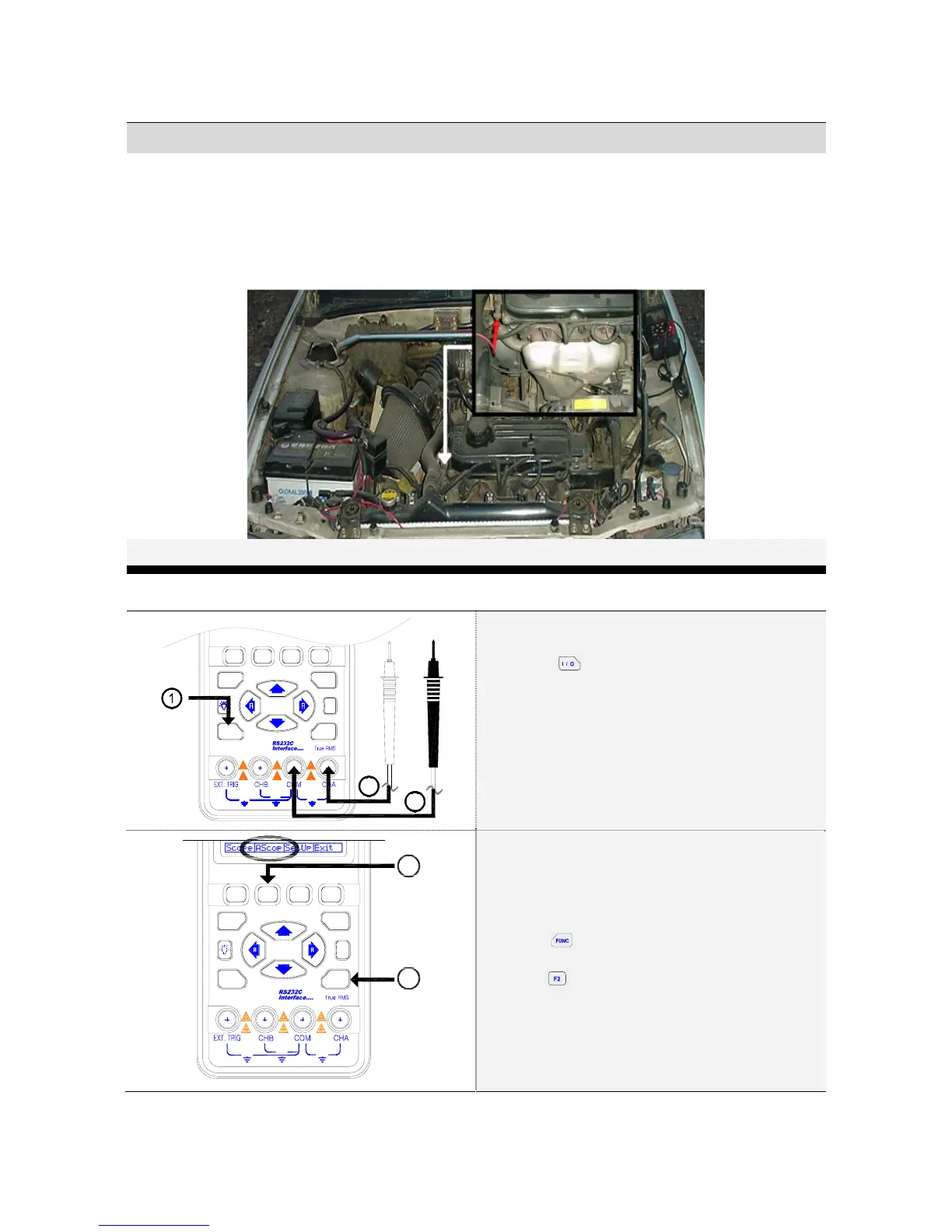

O2 Sensor (Oxygen Sensor)
O2 Sensor location and test
?
I / O
600V
MAX
600V
MAX
600V
MAX
FUNC
DIV
F1
F2
F3
F4
TRIG
2
3
Press
①
for 3 seconds to turn on the
meter
.
Insert the black
②
lead in the COM input
sockets.
Insert the red lead in the CHA
input socket
s.
③
?
I / O
600V
MAX
600V
MAX
600V
MAX
FUNC
DIV
F1
F2
F3
F4
TRIG
5
4
Press
④
.
Press
⑤
(ASCOP).
15
17
Table of Contents
Default Chapter
3
Table of Contents
3
1 Easy Manual
6
Turning on and off
6
Division, Trigger and Function Key
7
Input Terminals
7
Command, Arrow, Backlight and Help Key
7
Primary Menu Map
8
Positioning the Waveform on the Screen
8
Division Key Map
9
Changing Vertical (A/DIV or B/DIV) Division
9
Changing Horizontal Division
10
Trigger Key Map
10
Trigger Level Control
11
Function Key Map
11
Sensor Tests
12
Actuator Tests
12
Ignition & Electrical
13
2 Test Examples
14
Battery Voltage Test
14
O2 Sensor (Oxygen Sensor)
16
3 Introduction
20
Main Features
20
Unpacking the Test Tool Kit
20
Specification
21
General Specifications
21
Technical Specification
22
4 Product Description
24
LCD Area
25
Keys Area
26
Terminal Area
31
5 Using the METER
32
Safely Using the Test Tool
32
Attention
32
Safety Precautions
32
Powering the METER
32
Changing Backlight
32
Making Selections in a Menu
33
Displaying Only CHA
33
Freezing the Screen
34
Changing the Graphic Representation
35
Acquiring the Waveform
35
6 Triggering on a Waveform
37
Setting Trigger Level (on Normal Trigger Mode)
37
Making a Single Acquisition
37
Setting Trigger Mode (Tmode)
38
Setting AUTO Trigger Level
38
Setting Normal Trigger Mode
39
Setting Trigger Slope
39
7 Storing and Recalling Screens
40
Storing Screen
40
Recalling Screen
41
8 Remote Interface Operations
42
USB HID Device Installation
42
System Requirements
42
Operating System
42
Verifying the Computer's USB Port
42
Installing the HID Device
42
To Install Windows Application Software
44
Running the Application Software
45
Oscilloscope Mode
45
9 Maintaining the Test Tool
47
About this Chapter
47
Static Safe Handling
47
Cleaning the Meter
47
Storing the Meter
47
Calibration
47

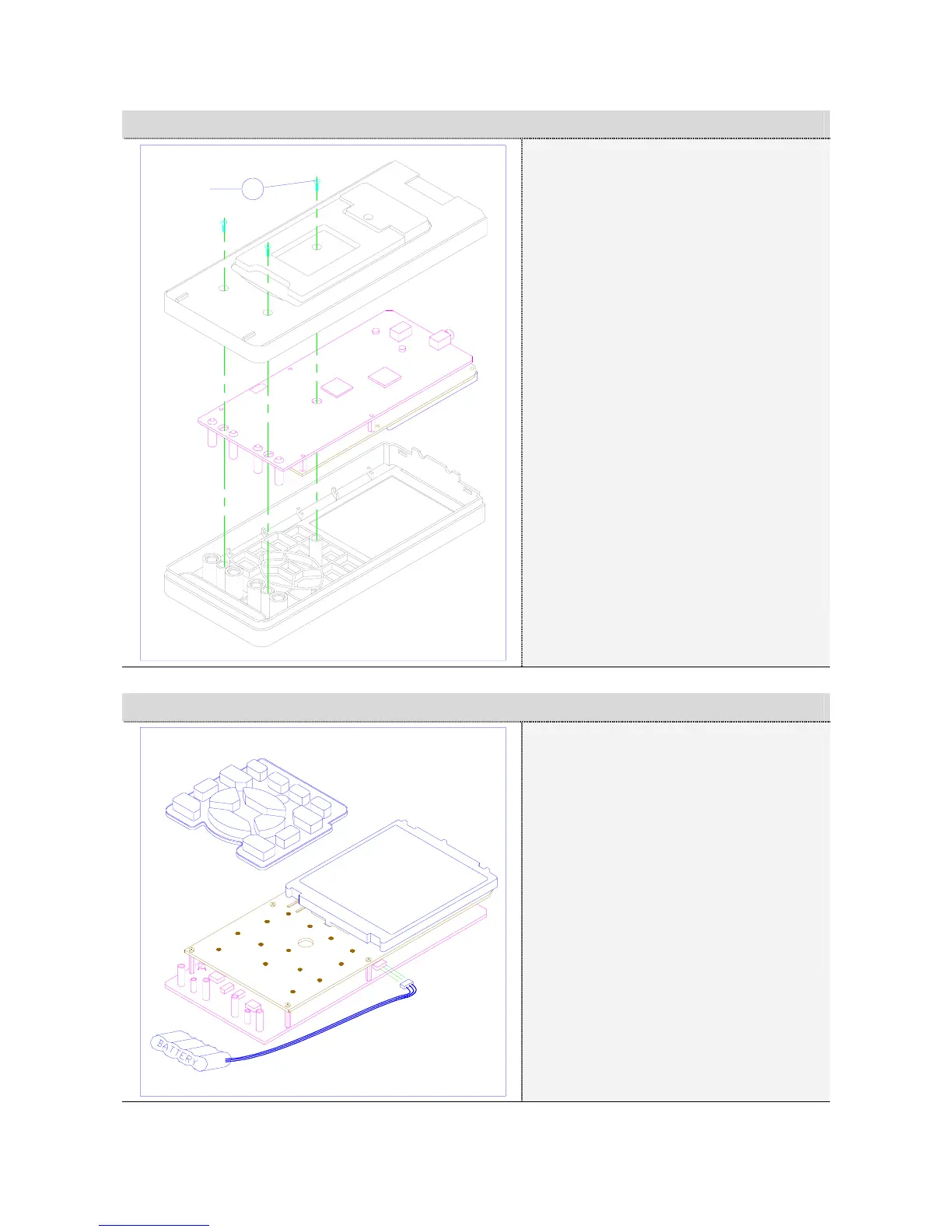

Replacing and Disposing of the Li-ION Battery
48
10 Automotive Test Setup
49
SENSOR Function Test
49
ABS Sensor
50
O2 Sensor
50
ECT Sensor
51
Fuel Temp
51
IAT Sensor
52
Knock Sensor
52
TP Sensor
53
Ckp Mag
53
CKP Lores
54
CKP Hires
54
Cmp Mag
55
CMP Lores
55
CMP Hires
56
Vss Mag
56
VSS Digital
57
MAP Analog
57
MAP Digital
58
MAF Analog
58
MAF HF Digital
59
MAF LF Digital
59
Egr Pfe
60
Egr Dpfe
60
ACTUATOR Function Test
61
Injector C/LIM
62
Injector N/LMT
62
Injector Positive Negative Positive
63
Mixture Solenoid
63
EGR Control Sol
64
ISC Step Motor
64
ISC Motor
65
Isc Sol
65
Trans Sol
66
Turbo Boost Sol
66
Glow Plug Amp
67
IGNITION & ELECTRICAL Function Test
68
Pip
69
Spout
69
DI Primary
70
DI Secondary
70
El Primary
71
El Secondary
71
Power Circuit
72
VREF Circuit
72
Ground Circuit
73
Alt Output
73
Alternator Field VR
74
Alternator Diode
74
Automotive Test Setup Table
75
11 Appendices
76
Troubleshooting Guide
