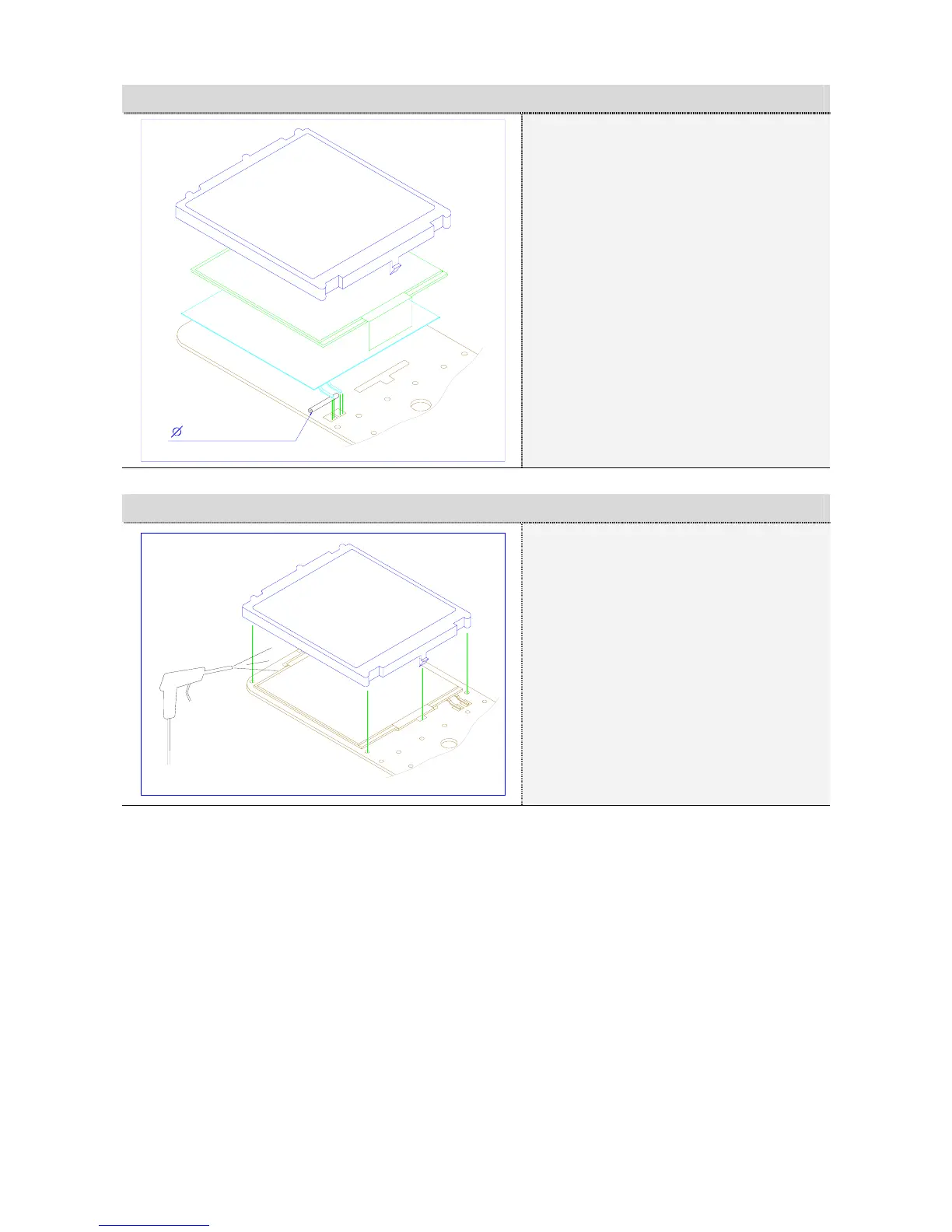

7.5.6. Layout for LCD Assembly
1.6 x 12mm wire
PCB
EL
LCD
LCD Cover
① Layout for LCD:
LCD Cover, LCD, EL,
Electric Wire (to be
inserted) and PCB
7.5.7. Install LCD cover
Air Gun
Air
① Caution
Clean the LCD and Cover
with deionized air and, if
necessary, isopropyl
alcohol. Then gently snap
the Cover into the SUB
PCB tabs.
② Install LCD cover:
