Seintek S2401 - Separate SUB and Main PCB Assembly; Remove LCD Cover

2-11

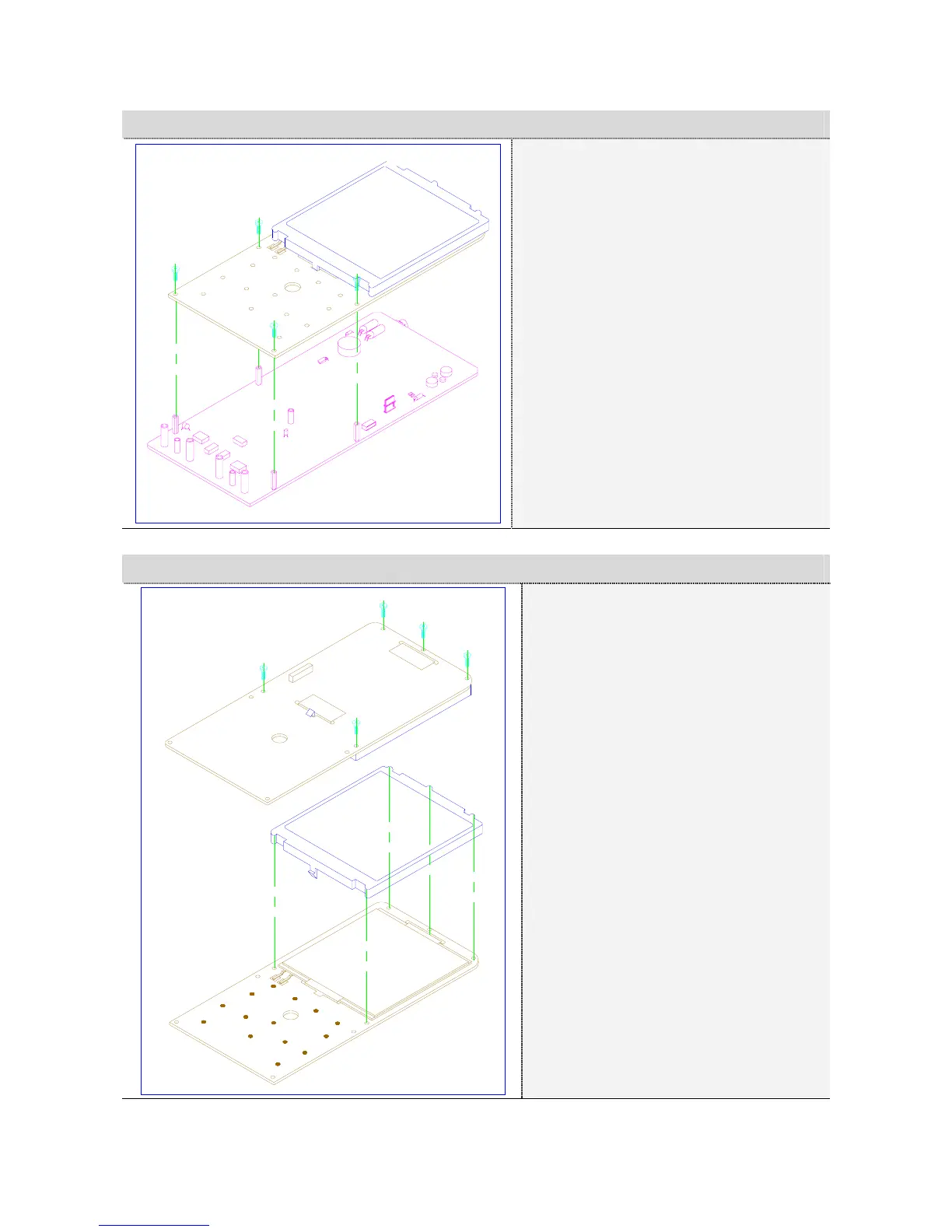

2.5.3. Separate SUB and Main PCB Assembly
① Remove Screw:
Remove the four screw
from the Sub PCB
assembly. (4 Pcs)
② Separate PCB:
The SUB PCB Assembly
can now be lifted away
from the Main PCB
Assembly.
2.5.4. Remove LCD Cover
① Remove screw:
Remove the five screw for
LCD cover. (5 Pcs)
② Rotate the Sub PCB:
Rotate the SUB PCB
Assembly 180 degrees.
③ Remove LCD Cover:
The LCD Cover can now
be lifted away from the
SUB PCB Assembly.
