Seintek S2401 - Install Screw for LCD Cover; Soldering of el Terminal; 7.5.10. Reassembly

7-6

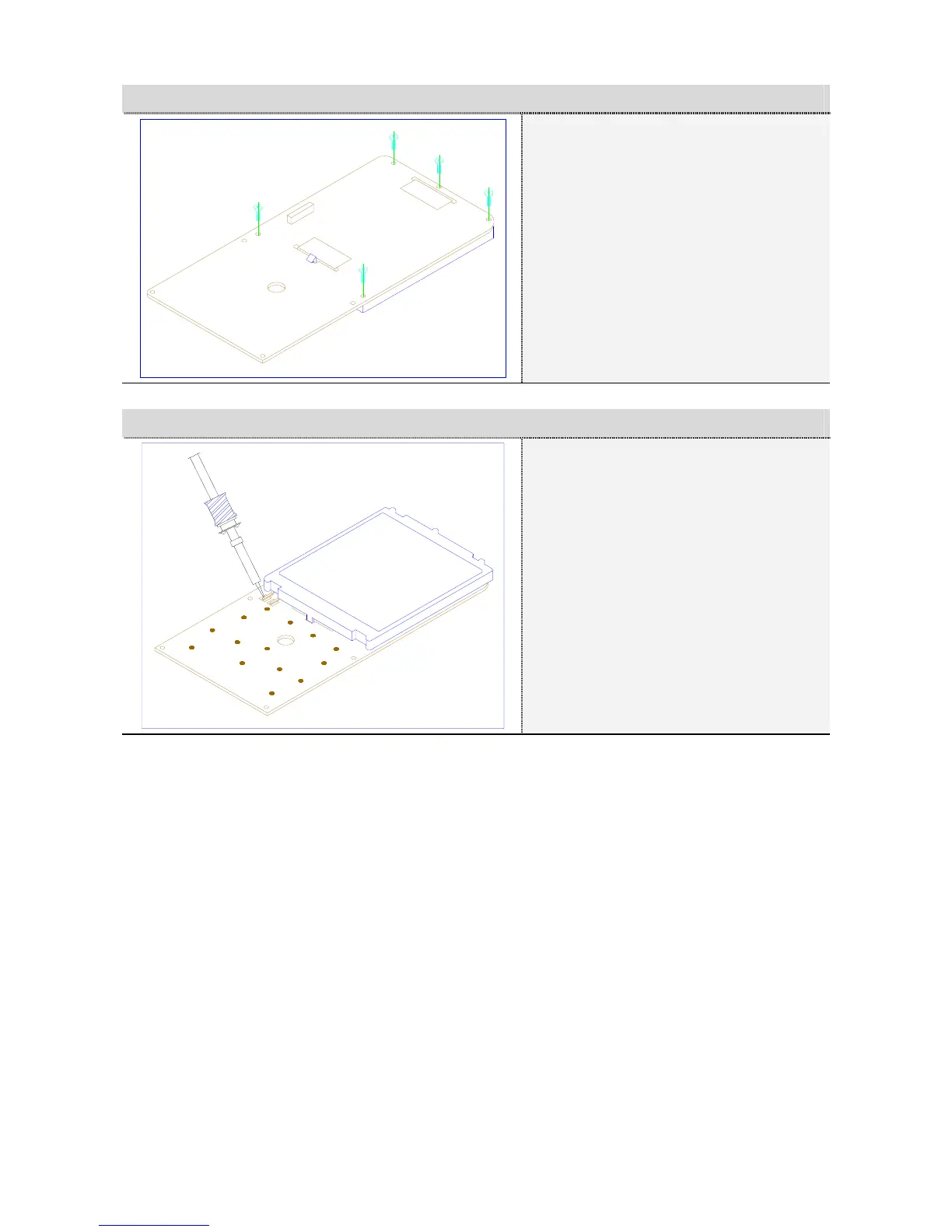

7.5.8. Install screw for LCD cover
① Rotate the Sub PCB:
Rotate the SUB PCB
Assembly 180 degrees.
② Install Screw:
Install the five screw for
LCD cover
7.5.9. Soldering of EL terminal
① Rotate the Sub PCB:
Rotate the SUB PCB
Assembly 180 degrees.
② Soldering:
Soldering EL terminal. (2
points).
7.5.10. Reassembly
Generally, reassembly reverses the disassembly procedure.
