INSTALLATION AND START-UP MANUALFOR KOMPACT AMC DOSING
PUMP

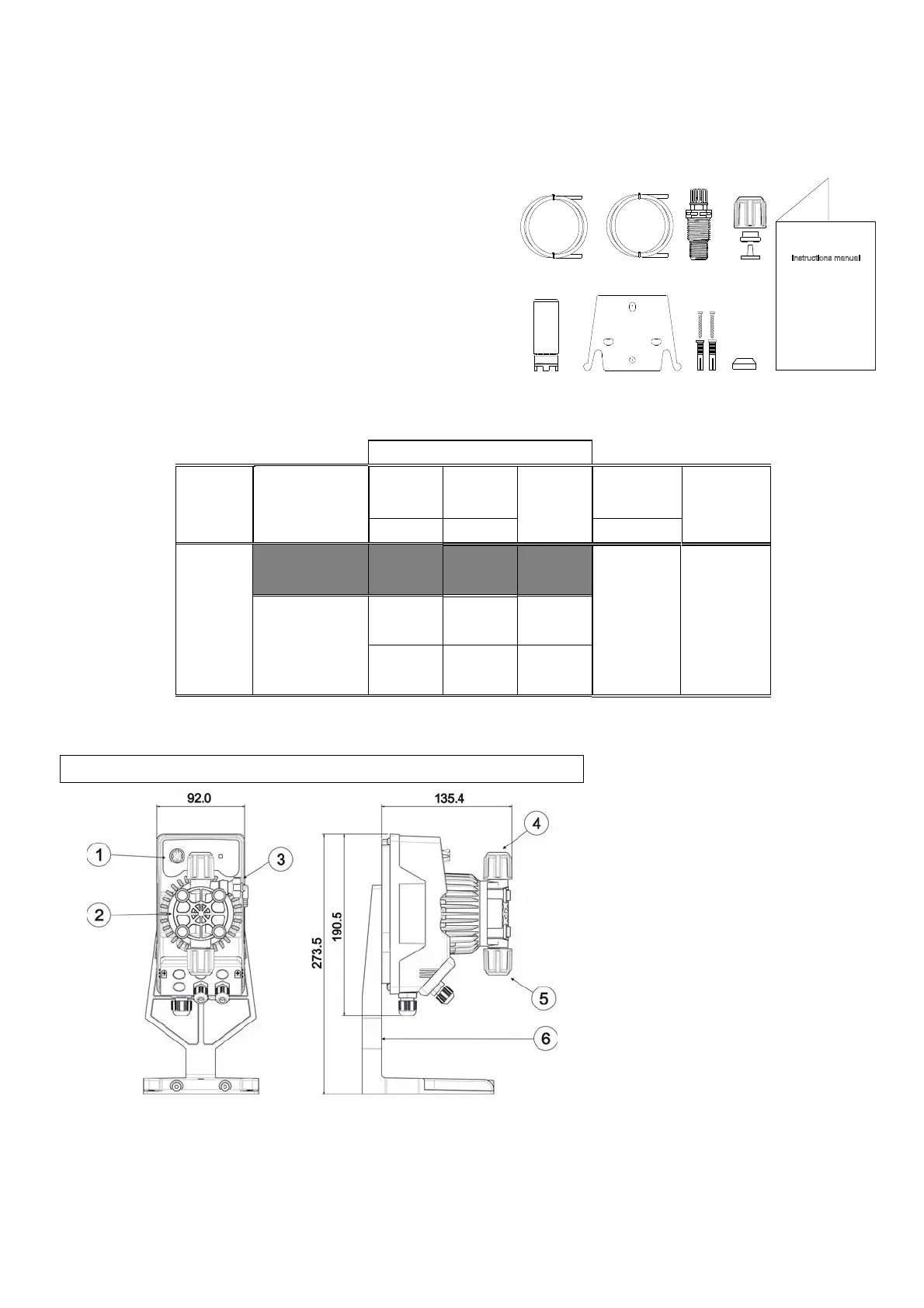

Packing contents:
A. Opaque hose for connecting the pumpʼs outlet to the
injection point
B. Transparent hose for suction and for connecting the
bleeding valve up for manual priming
C. Injection fitting
D. Hose connection kit
E. Bottom filter
F. Wall mounting bracket
G. Anchors for securing the pump to the wall
H. Screw protection caps
I. Instructions Manual
Below are the technical and pump performance data:
PVC
Power supply
Pressure
Flow rate
cc /stroke
Connections
stroke / min
(mm)
bar
l/h
Int / Ext
200
24 VDC
2
7
0,73
4 / 6
160
24 VAC
2
8
0,83
5
6
0,62
INTRODUCTION
The pump is composed of a part that houses the control electronics and the magnet and a hydraulic side always in contact with
the liquid to be dosed.
Check the rating plate of the main features of your pump
1. Adjustments area
2. Dosing head
3. Priming valve
4. Delivery connector
5. Suction connector
6. Base fixing bracket (optional)
We recommend checking the chemical compatibility between the product and the materials in contact.
PUMP HEAD MATERIALS
Pump body: PVC
Valves: PVC
Balls: Ceramic
Diaphragm: PTFE
