Selco Genesis 240 - 5.1) Master switch (a) - input filter...

Description of machine operation 89
NOTE : The radio noise suppression circuit has two purposes:
to keep the machine's radio frequency emissions within limits
specified by standards and to ensure G 240's immunity against
the same type of problems caused by any electronic devices
connected to the same power supply source.
The filter consists of a network of capacitors, some of which are
grounded, and a toroidal inductor.
k)
a)
o)
l)
i)
j)
d) e) f) g)
h)
e)
c)
n)
m)
b)

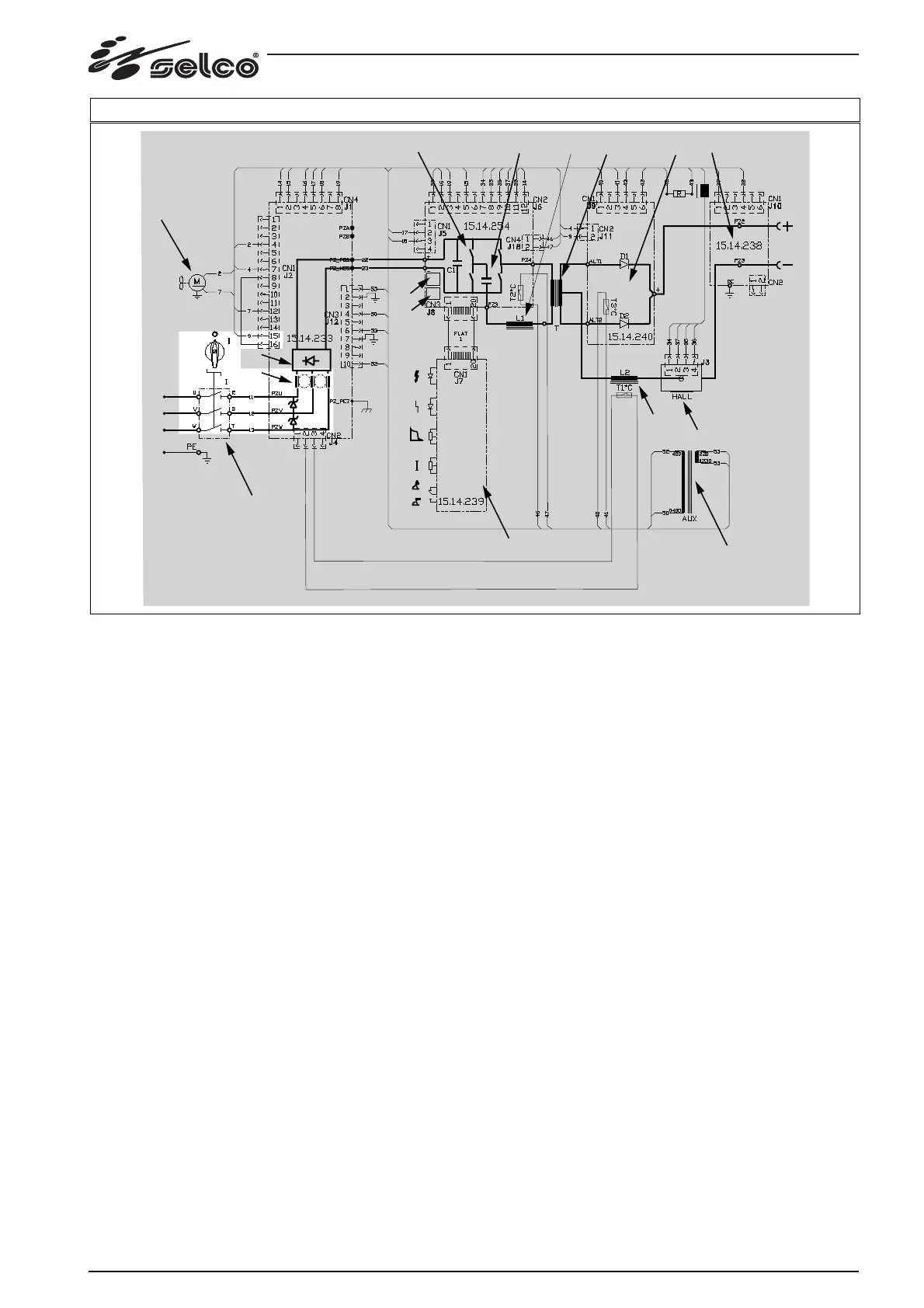

FIG. 4
