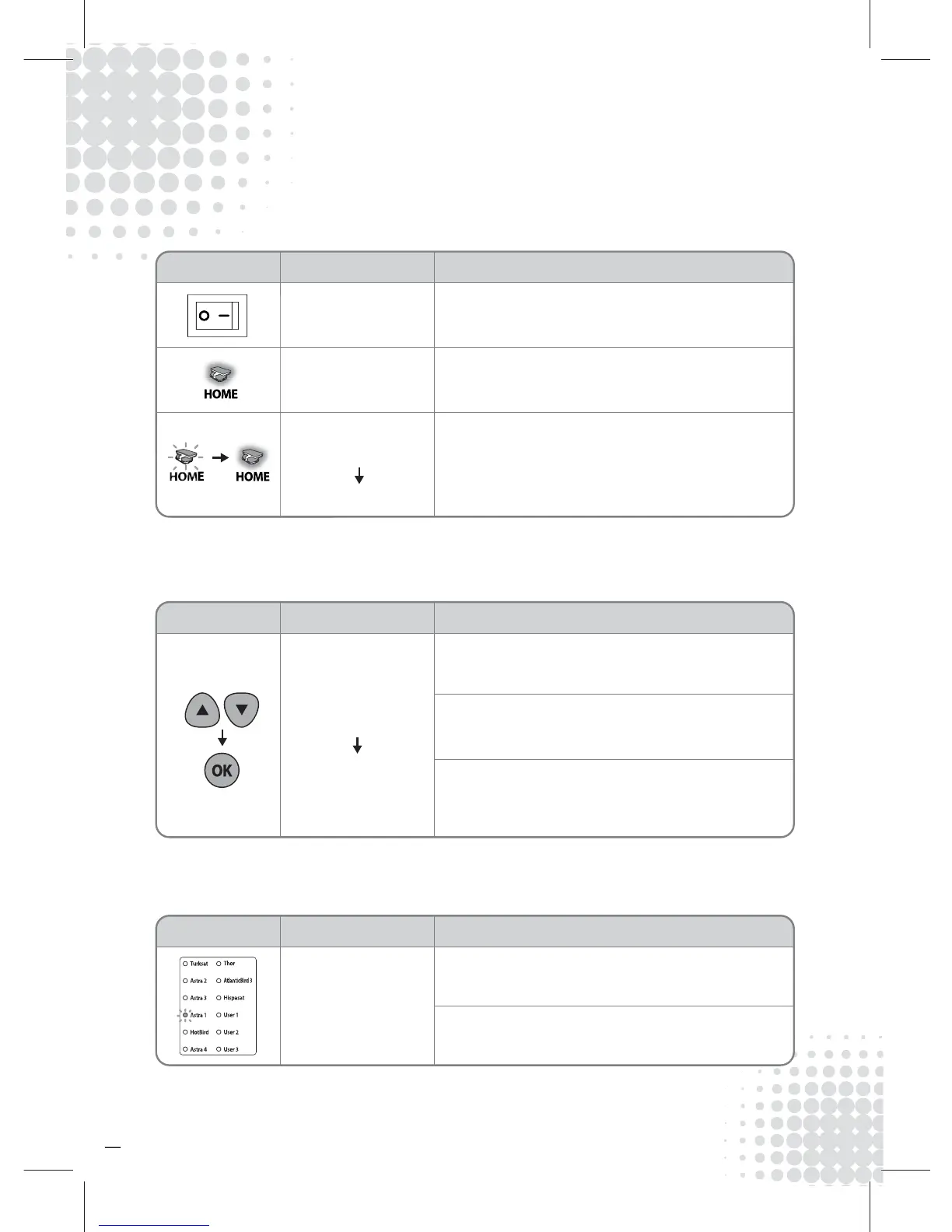

3-2. Functional Description
A. Power On
When the all cable connections are completed, switch on
with the “Power Switch” button on the top of the controller.
◆
The "Home position" means antenna folded completely to the body part which is the basic position for
carrying in hard case.
If the position of antenna was in home position, “Home
state light” will be solid on to show it is ready to use.
If the position of antenna was not in the home position,
“Home state light” will ash, and the antenna will return to
the home position within a maximum 2 minutes. Then
“Home state light” will be solid on.
Function Description
“Power” Switch
“Home State”
Light Solid ON
Solid ON
“Home State”
Light Solid ON
Operation
Once antenna and controller are connected, you can select
& change the satellite as you require.
Select the desired satellite using the “Up/Down” buttons,
then press the “OK” button to accept the setting.
If you select the wrong satellite, you can re-search target
satellite using the “Up/Down” button, then press the “OK”
button to accept the new setting.
i.
ii.
iii.
After the satellite selection, “Home State” light will go o
and the LED light of the selected satellite will start ashing.
Once selected satellite has been found, the LED light of the
satellite will become solid.
Function Description
“Satellite” light
Operation
i.
ii.
i.
ii.
iii.
Function Description Operation
B. Selecting the satellite
“OK” Button
“Satellite
Up / Down button” Light
C. Searching the satellite
To Next Page
