15
UNIVERSAL ROOF GUY KIT (JURGK-1)
If the chimney extends 5 ft. (1600 mm) or more above the roof deck, roof guys
are required. The Roof Guy Kit will provide lateral support to the chimney
above the roof line. The kit contains Telescoping Legs, Support band, Roof
Angle Brackets and hardware package.
The Roof Guy Kit accommodates most models of chimneys with outer
diameters ranging from 7" through 13".
Cage
Nut
Holes used to attach
Telescoping Legs to
Support Band
Holes used to assemble Support
Band
Tab for
2” Bolt
Holes used to assemble
Support Band
Holes used to attach
Telescoping Legs to
Support Band

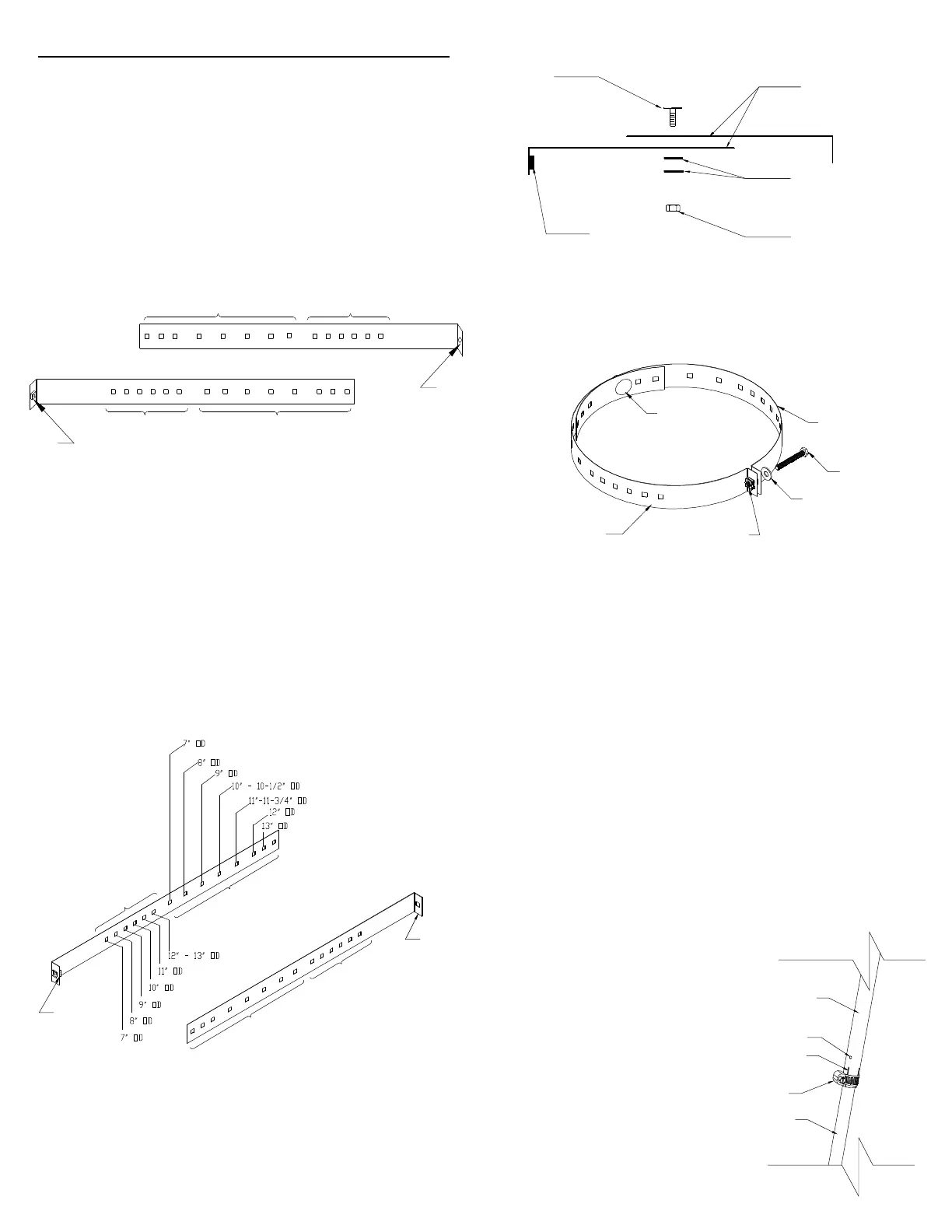

Figure 28 Support Band Holes Identifier
Holes for Telescoping
Legs to Support Band
Holes for Support Band
Cage Nut
Holes for Support Band
Holes for Telescoping
Legs to Support Band
Tab For
2” Bolt
Figure 29
Assembly of Universal
Support Band (2 Halves)
NOTE: Different holes combination can be selected as required.
To Install:
A. Measure the outside (OD) diameter of your chimney.
B. From the single row of holes (see Figures 28 and 29), select the hole in
each half that corresponds to the outside diameter identified with the
chimney being installed. Place the two halves together. Insert an elevator
bolt through the chosen holes (Ex - for a 10” OD chimney, place the
elevator bolt through the holes identified for 10” OD). The elevator bolt
should be oriented as shown in Figure 30. Secure the center bolt with
washers and 1/4” flanged nut (see Figure 30). NOTE: On smaller diameter
chimneys the excess band material can be cut off.
Figure 30 Topview assembly of Support Band -
Elevator Bolt, Washers and Nut
Flanged Nut
Flat Washers
Support Band
Halves
Elevator
Bolt
Cage Nuts
Figure 31
Universal Support Band
formed into a circle
2” Bolt
Cage Nut
One of 2 halves
of Support Band
One of 2 halves
of Support Band
Elevator
Bolt
Flat Washer
Assembly of Support Band:
C. Form the band into a circle (see Figure 31) and loosely connect tabs using
the supplied 2” bolt into the cage nut located on one of the two formed
tabs.
D. Select the hole in each half that corresponds to the OD of the chimney.
Insert an elevator bolt in each of the holes (1 per side).
E. Position the Support Band approximately two thirds of the way up the
chimney height (see Figure 35). The preferred location is next to a joint,
immediately above or below a Locking Band. Secure Support Band by
tightening the 2” bolt. NOTE: Only one chimney joint should be above
a Roof Guy Kit. An additional Roof Brace Kit may be required for taller
systems.
Assembly of Telescoping
Legs with Hose Clamp
Figure 32
Larger Diameter
Telescoping Leg
Pilot Hole for
Securing Screw
Cut Section of Larger
Telescoping Leg
Hose Clamp
Smaller Diameter
Telescoping Leg
F. Assemble the telescoping legs by sliding the supplied hose clamp over
larger diameter leg and then inserting smaller diameter leg into larger
diameter leg. Temporarily hold legs together by tightening the hose
clamp over the cut section of larger diameter leg (see Figure 32). Repeat
for the other telescoping leg assembly.
G. Place a flat washer on the elevator bolts and attach the angled end of each
of the telescoping legs to the 2 elevator bolts on the Support Band with
washer and nut (see Figure 33).
