7. Radio
7.1 Overview
The LR1121 is a half-duplex RF transceiver capable of handling constant envelope modulation schemes such as LoRa,
(G)FSK, and LR-FHSS. The LoRa and (G)FSK modulations are fully compatible with the SX1261/62/68 family for sub-GHz, and
can be configured to be compatible with the SX1280/81 family for 2.4GHz.
The radio system is shown in Figure 7-1: Radio below. It is composed of the frequency synthesizer (also referred as PLL),
three TX paths ( High Power, Low Power and High Frequency), and two RX paths, followed by a high-bandwidth ADC. Both
the ADC and the PLL are tied to the digital subsystem and to the LoRa and (G)FSK modems, and the LR-FHSS modulator.
The PAs are described in a dedicated section, as well as the LoRa and (G)FSK modems, and the LR-FHSS modulation.

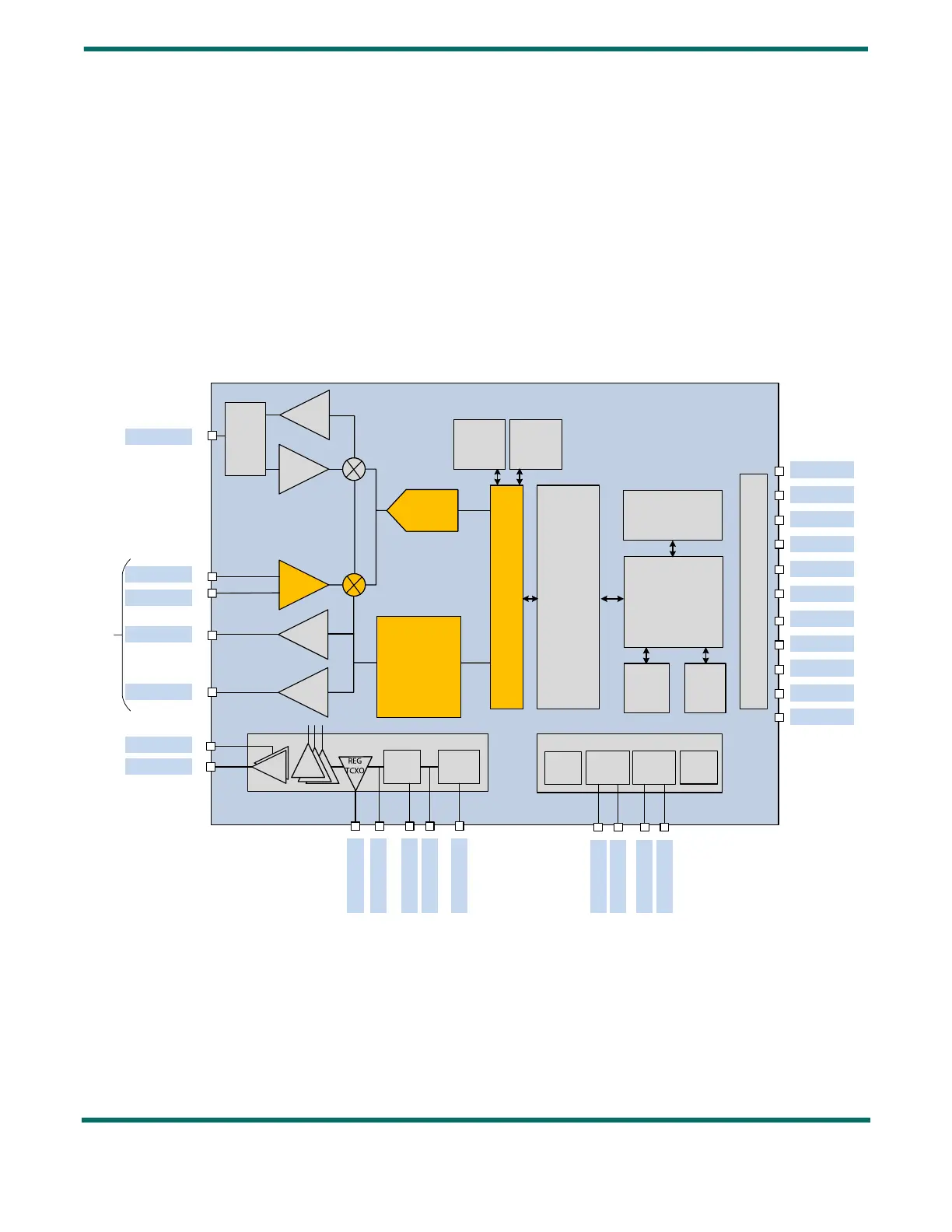

Figure 7-1: Radio
The LR1121 frequency synthesizer allows a continuous operation in the 150MHz-2500MHz frequency range. It is shared
between the sub-GHz radio and HF radio, therefore no simultaneous sub-GHz /HF radio operation is possible.
The LR1121 frequency synthesizer is clocked by a 32MHz reference, provided by either a crystal oscillator, or a TCXO. Refer
to Section 6. "Clock Sources" on page 44 for details.
