SMD 989– User Manual
Page 39 (105)
Configure Modulator – Carrier ID
Carrier ID – DVB CID Global Unique ID: The SDM 989 can optionally provide a carrier added to
the transmission that contains a unique identifier value (DVB CID Global Unique ID). The
identifier value may be used to trace and quickly resolve a satellite interference event to a
transmitting source. The Global Unique Identifier is a fixed value for the equipment manufacturer
and is not editable by the user. It may be derived from a 48 bit MAC address or a 48 bit Space
Data Association modulator identifier.

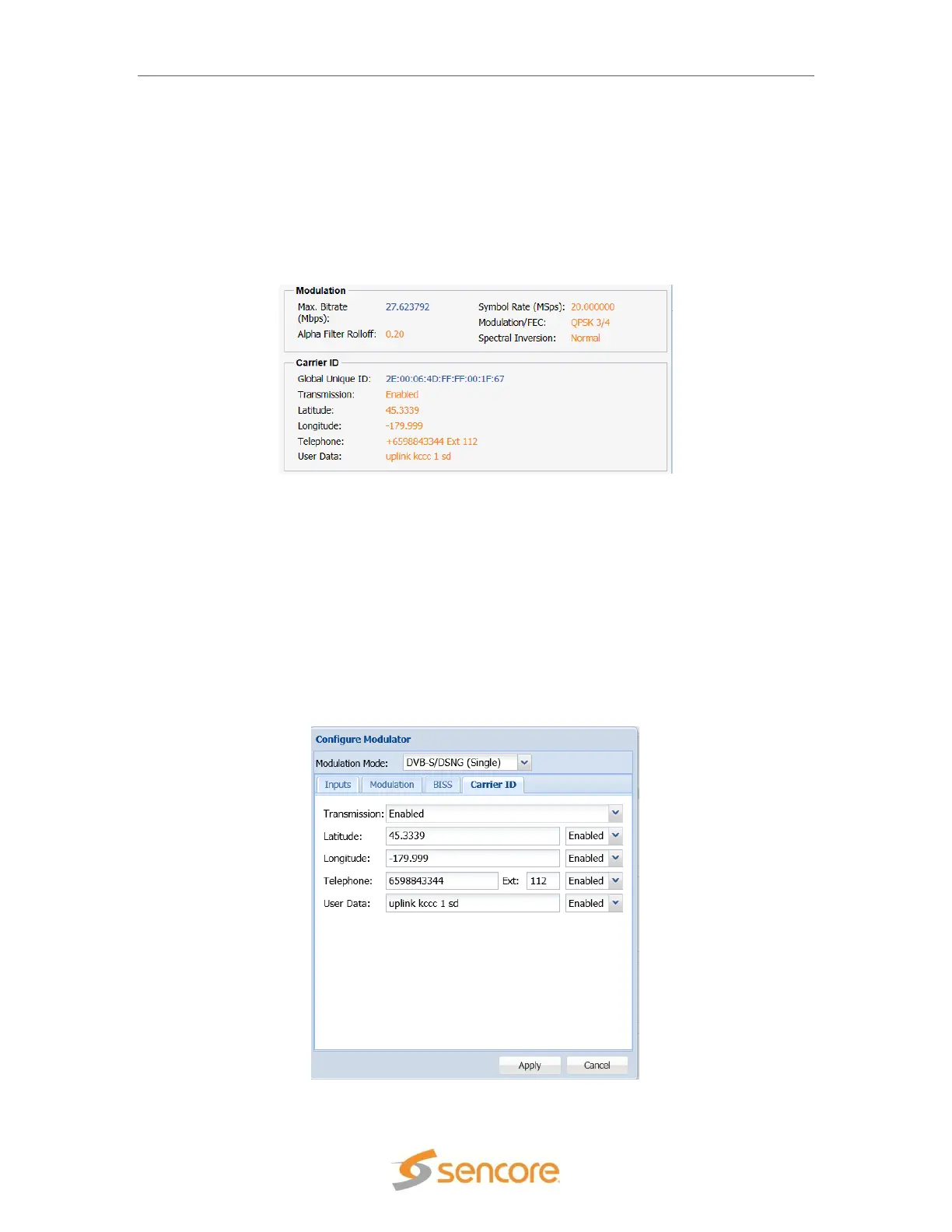

Figure 32: Carrier ID – Global Unique ID
Configure Carrier ID provides a CID control field and an information field. The CID control
provides a means to enable or disable the CID transmission. Optionally an Informational Field
may be populated with latitude, longitude, phone and message data.
Transmission: Provides an enable or disable selection for the CID transmission.
- Enabled
- Disabled
Description: When enabled, a CID transmission is generated and added to the output. When
disable no CID output including the Global Unique ID and Information fields are output.
Figure 33: Carrier ID Configuration
