Electrical Connections

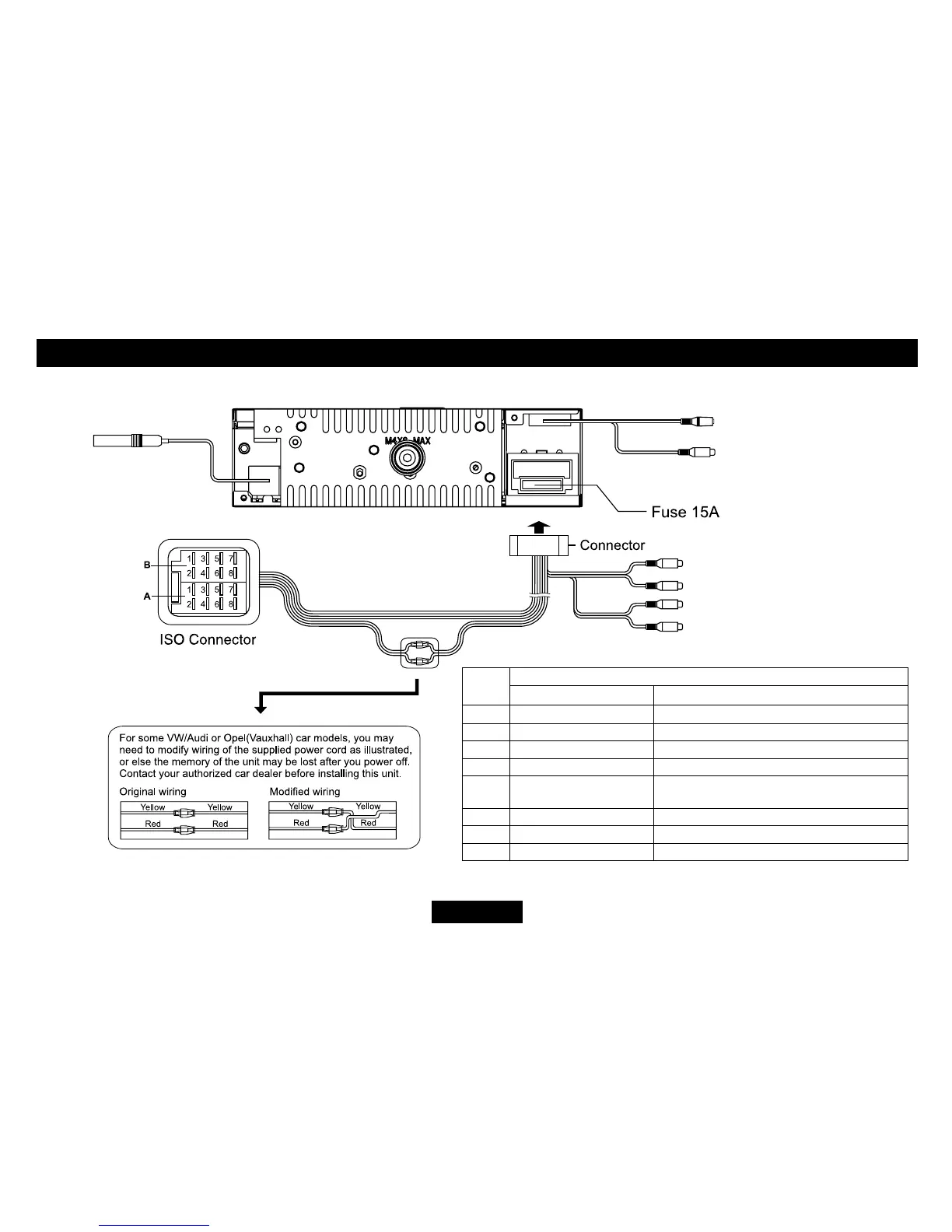

Wiring Diagram
(Black)
SUB-Woofer OUT(Green)
REAR AUDIO OUT R(Red)
REAR AUDIO OUT L(White)
FRONT AUDIO OUT R(Red)
(Brown)
(Grey)
FRONT AUDIO OUT L(White)
(Black)
MIC (Microphone)
(Black)
ANTENNA
Location
Function
Connector A Connector B
1 RearRight(+)/Purple
2 RearRight(-)/PurplewithBlackStripe
3 FrontRight(+)/Grey
4 Battery12V(+)/Yellow FrontRight(-)/GreywithBlackStripe
5
ANT/AMP control / Blue
with white stripe
FrontLeft(+)/White
6 FrontLeft(-)/WhitewithBlackStripe
7 ACC+ / Red RearLeft(+)/Green
8 Ground / Black RearLeft(-)/GreenwithBlackStripe
