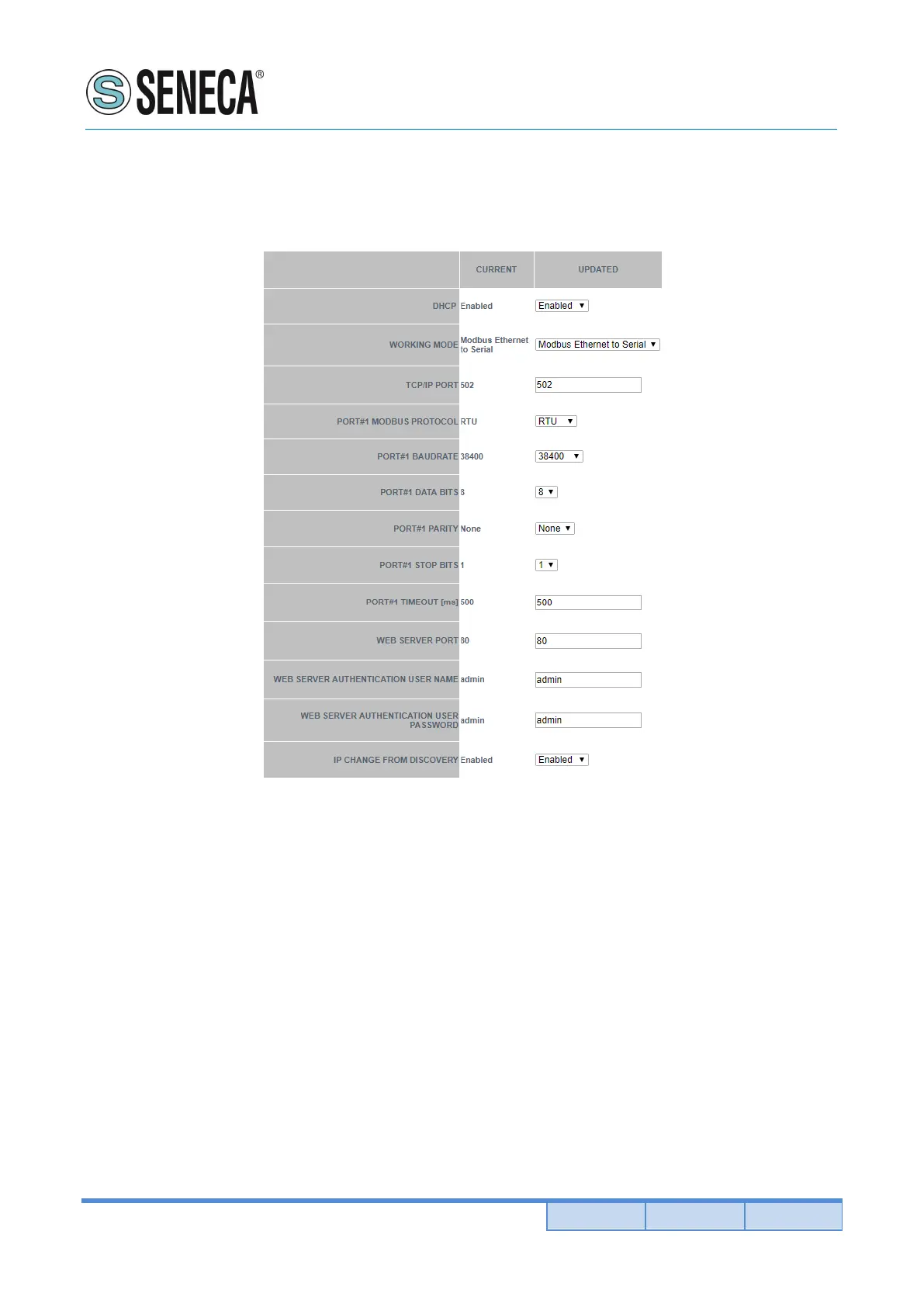

STATIC GATEWAY
Gateway address when DHCP is Disable
When a configuration it’s made you must confirm with “APPLY”, then the new configuration became operative.
WORKING MODE
Select between Modbus Serial to Ethernet or Modbus Ethernet to Serial.
TCP/IP PORT
TCP-IP port for the Modbus TCP-IP protocol used in “Modbus Ethernet to serial” mode (Max 8 clients).
PORT#1 MODBUS PROTOCOL
Select between Modbus RTU or Modbus ASCII protocol.
PORT#1 BAUDRATE
Used to Set the port baudrate
PORT #1 BITS
