Putting the diversity receiver into operation
Mounting the diversity receiver to a camera

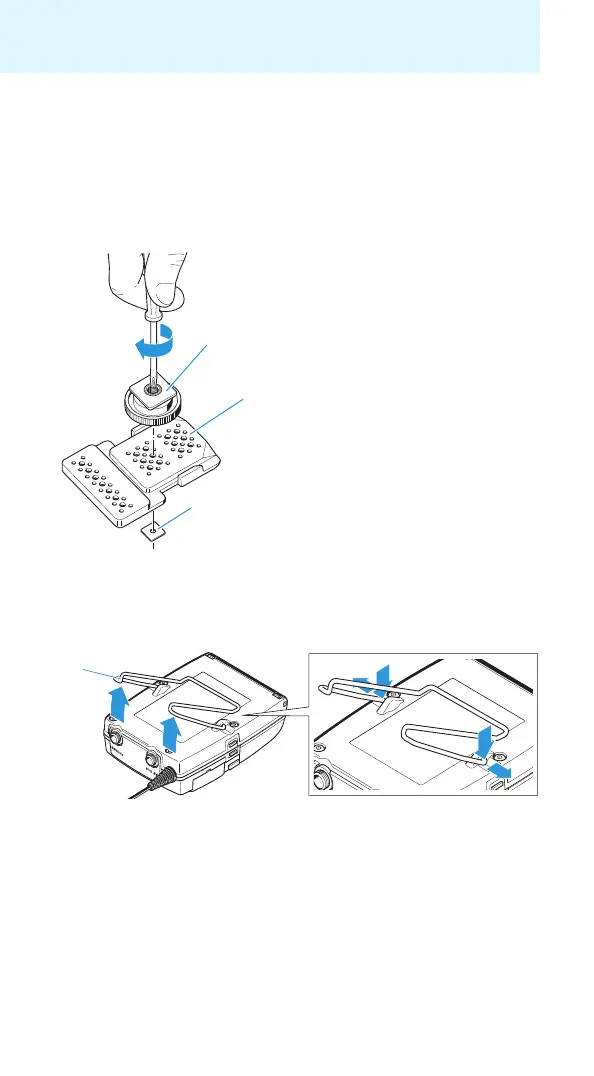

Use the supplied CA 2 camera adapter to mount the receiver to a camera’s
flash mount.
왘 Determine where on the perforated plate 씉 the flash mount
adapter 씊 will need to be fastened so that the receiver can best be
attached to the camera.
왘 At this position, place a square nut 씋 under the perforated plate 씉.
왘 Fasten the flash mount adapter 씊 to the perforated plate 씉 using the
square nut 씋.
왘 Lift one side of the belt clip 씌 as shown.
왘 Press down the belt clip 씌 at one fixing point and pull it out of the
receiver housing.
왘 Repeat for the other side.
