Product overview
Product overview

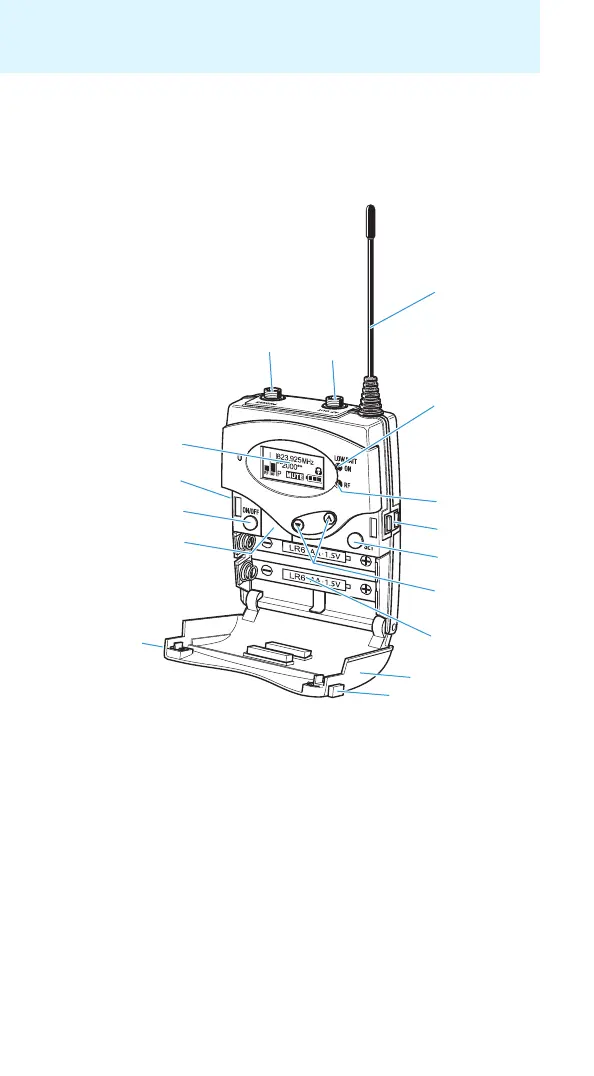

Overview of the EK 2000 diversity receiver
쐃 Headphone output (PHONES),
3.5 mm jack socket, lockable
쐇 Line output (AF OUT),
3.5 mm jack socket, lockable
(the ground contact is used by
antenna II)
쐋 Antenna I
쐏 Operation and battery status
indicator, red LED
(lit = ON, flashing = LOW BATT)
쐄 RF signal indication, green LED
(lit = RF)
쐂 Charging contacts
쐆 SET button
쐊
왖/왔 rocker button
(UP/DOWN)
쐎 Battery compartment
쐅 Battery compartment cover
(metal)
쐈 Battery compartment catches
쐉 Infra-red interface
씈 ON/OFF button
with ESC function (cancel)
씉 Display panel, backlit in orange
