Product overview

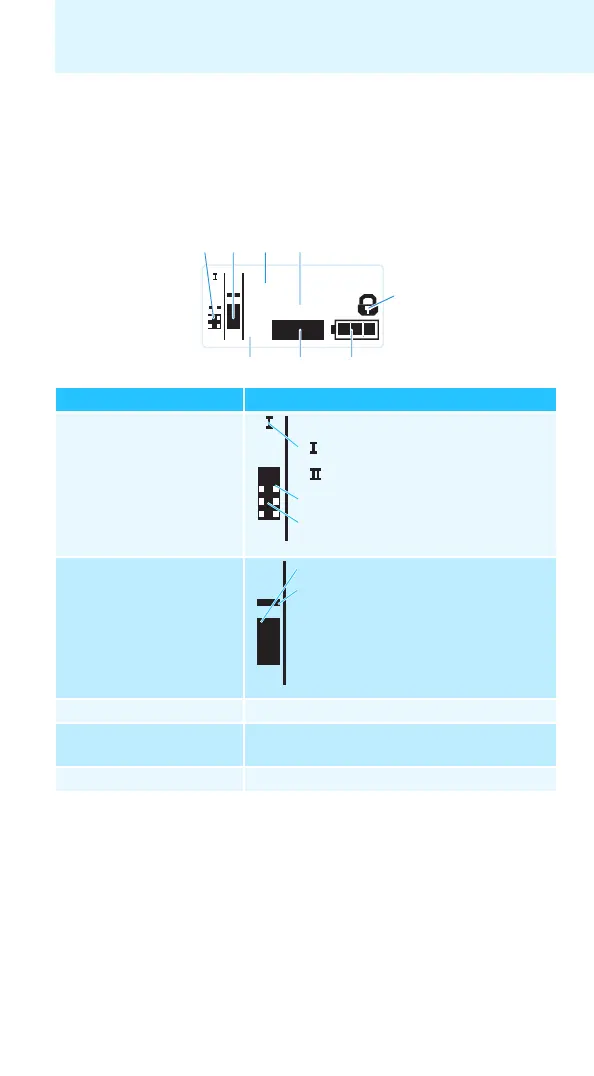

Overview of the displays
After switch-on, the diversity receiver displays the “Frequency/Name”
standard display. For further illustrations and examples of the different
standard displays, refer to page 13.
The display backlighting is automatically reduced after approx. 20 seconds.
Display Meaning
햲 RF level “RF”
(Radio Frequency)
Diversity display:
Antenna input I is active
Antenna input II is active
Squelch threshold level
RF signal level:
Field strength of the received signal
햳 Audio level “AF”
(Audio Frequency)
Modulation of the transmitter
Peak hold function
When the display shows full
deflection, the audio input level
is excessively high.
For details, see page 24.
햴 Frequency Current receiving frequency (see page 25)
햵 Name Freely selectable name of the receiver
(see page 23)
햶 Lock mode icon Lock mode is activated (see page 13)
MHz
823.925
**2000**
P
AFRF
MUTE
햲 햳 햴 햵
햶
햷햸햹
RF
AF
