SENNHEISER ELECTRONIC GMBH & CO. KG
COMPONENT MAINTENANCE MANUAL
HMEC 26-SERIES
Page 3003
Jan 23/13
23-41-48
(8) Remove the cap (040, 070).
(9) Unsolder the leads of the microphone cable (Fig. 2001) from the PCB microphone side.
Unsolder the leads of the headband on both sides, too.
D. Removal of the headband.
NOTE:
REF. CHAP. C, REF. FIG. 2001.
FOR HMEC 26, REFER TO IPL FIG. 1 AND FOR HMEC 26-T, REFER TO IPL FIG. 3.
(1) Desolder all headband leads on both sides.
(2) Remove the headband cable of the strain-relief at the PCB.
(3) Open the headband holder and remove the acoustic units (050, 060).




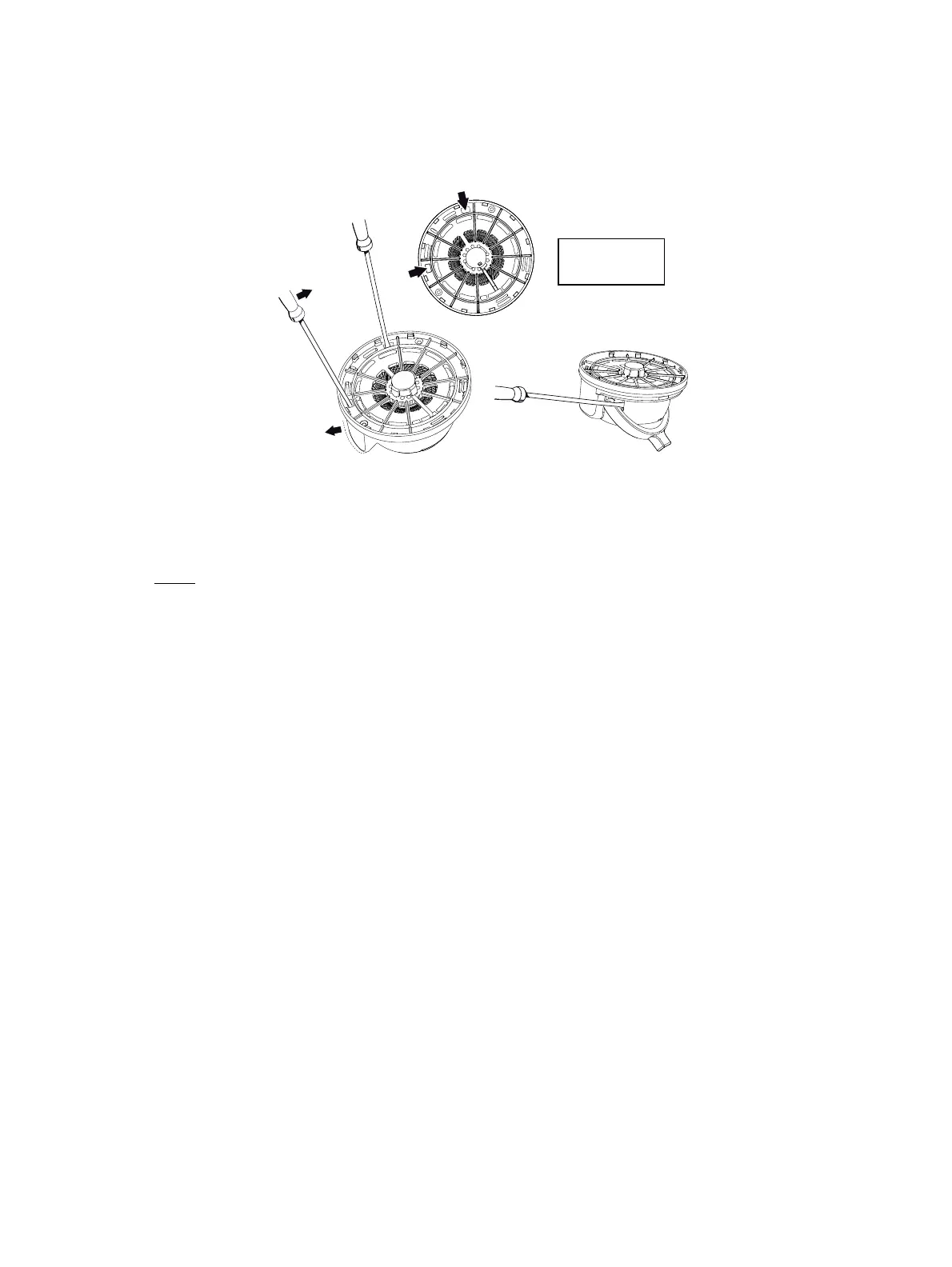

for this procedure use
a small flat-headed
screwdriver only
screw
screw
Drawings are shown as example
Figure 3001
Removal of the caps
Oct 30/08
