(2) Assembly of the yoke (020)
(a) Completely move down the end piece of the headband (010) to the round/oval end piece
stopper.
CAUTION:
DO NOT INSTALL THE HEADBAND CABLE WITH A SHARPEN SCREWDRIVER. YOU
CAN DAMAGE THE HEADBAND CABLE. USE ONLY ROUNDED/STUB TOOLS.
(b) Press the headband cable completely into the headband channel of the end piece (010).
(c) Put the yoke (020) to the end piece of the headband (010).
(d) Press the headband cable into the left part of the headband channel of the yoke (020).

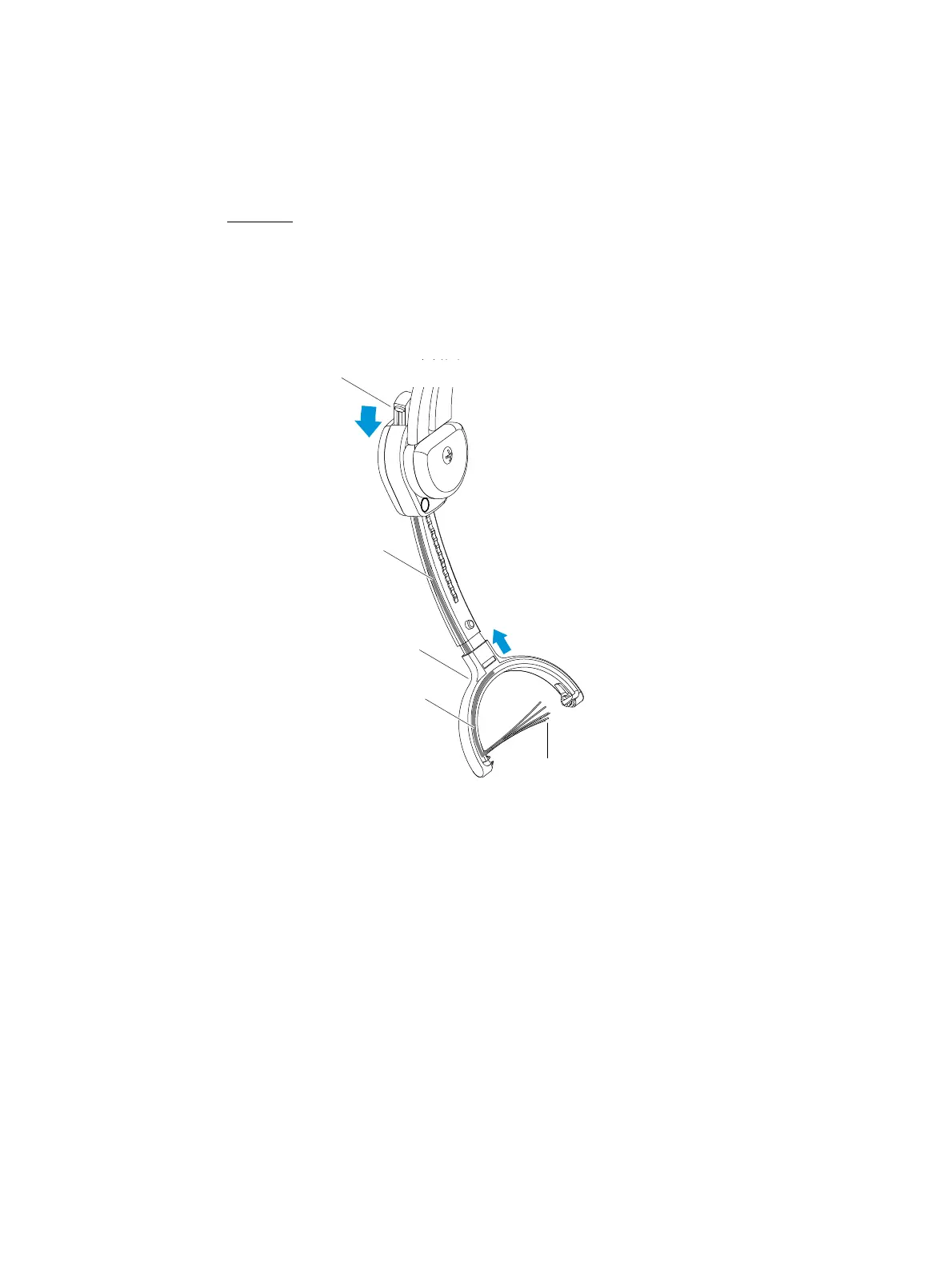

Yoke
Cable channel
of the yoke
Cable channel
of the end piece
Headband cable
End piece stopper
