Sennheiser Set 860 - Overview of the Transmitter

Product overview
Set 860 | 7

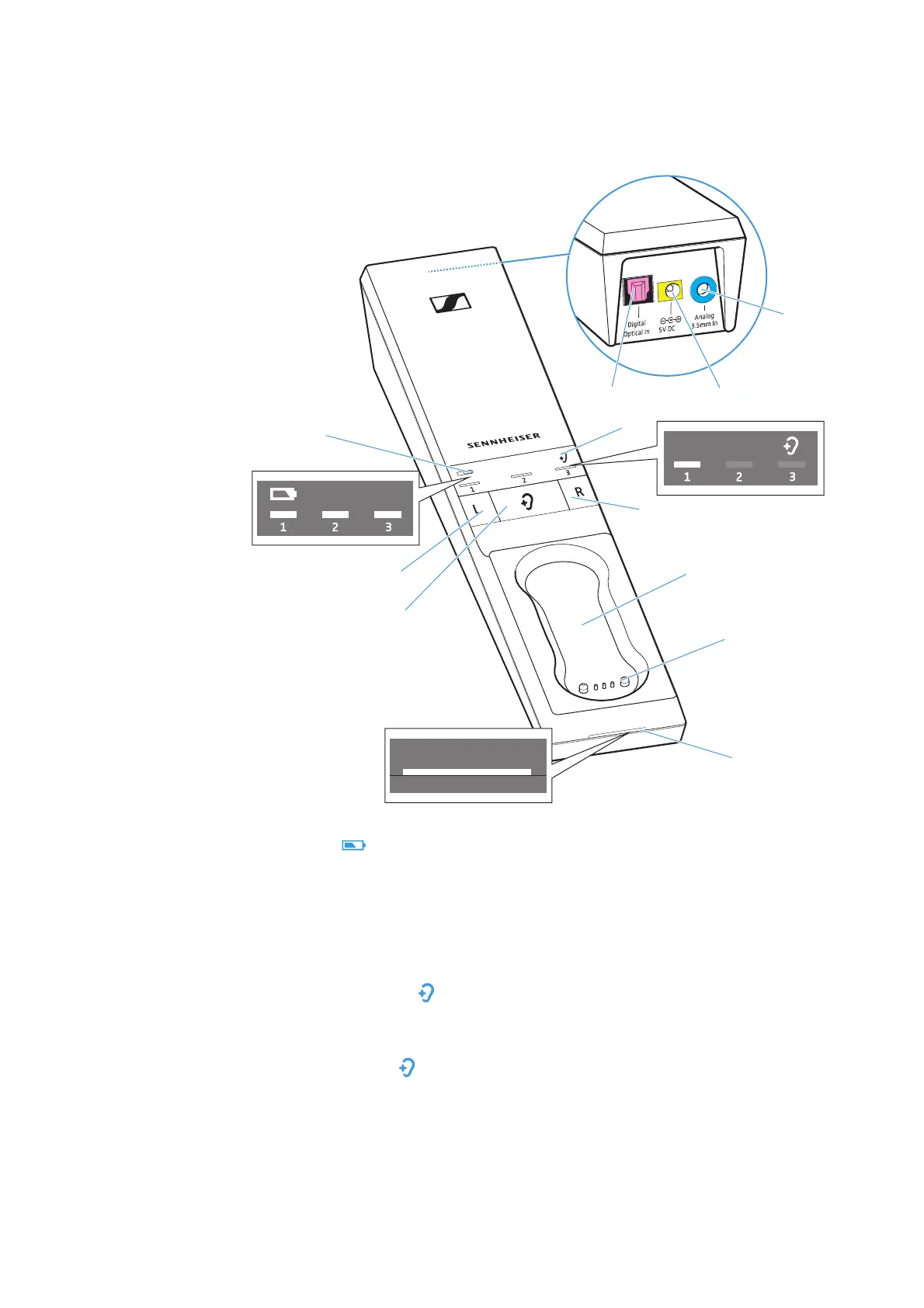

Overview of the transmitter
Model: TR 860
5
6
7
0
9
4
8
1
2
3
2
1A
1 Battery LED ,
indicating the charging process/
remaining operating time of the
receiver (see page 15 and 17)
2 Balance buttons
for right ear
R and left ear L
3 Hearing profile button
for selecting the hearing profiles
(see page 24)
4 Hearing profile LED ,
indicating the activated hearing
profile (see page 24)
5 Charging compartment for ste-
thoset receiver
6 Charging contacts for stethoset
receiver with holding magnets
7 Transmitter status LED
(see page 8)
8 Digital Optical In audio input
(marked pink) for connecting a
digital audio source (optical)
9 5V DC 1A socket (marked yellow)
for connecting the power supply
unit
0 Analog 3.5 mm In audio input
(marked blue) for connecting an
analog audio source (3.5 mm jack
socket)
