Product overview

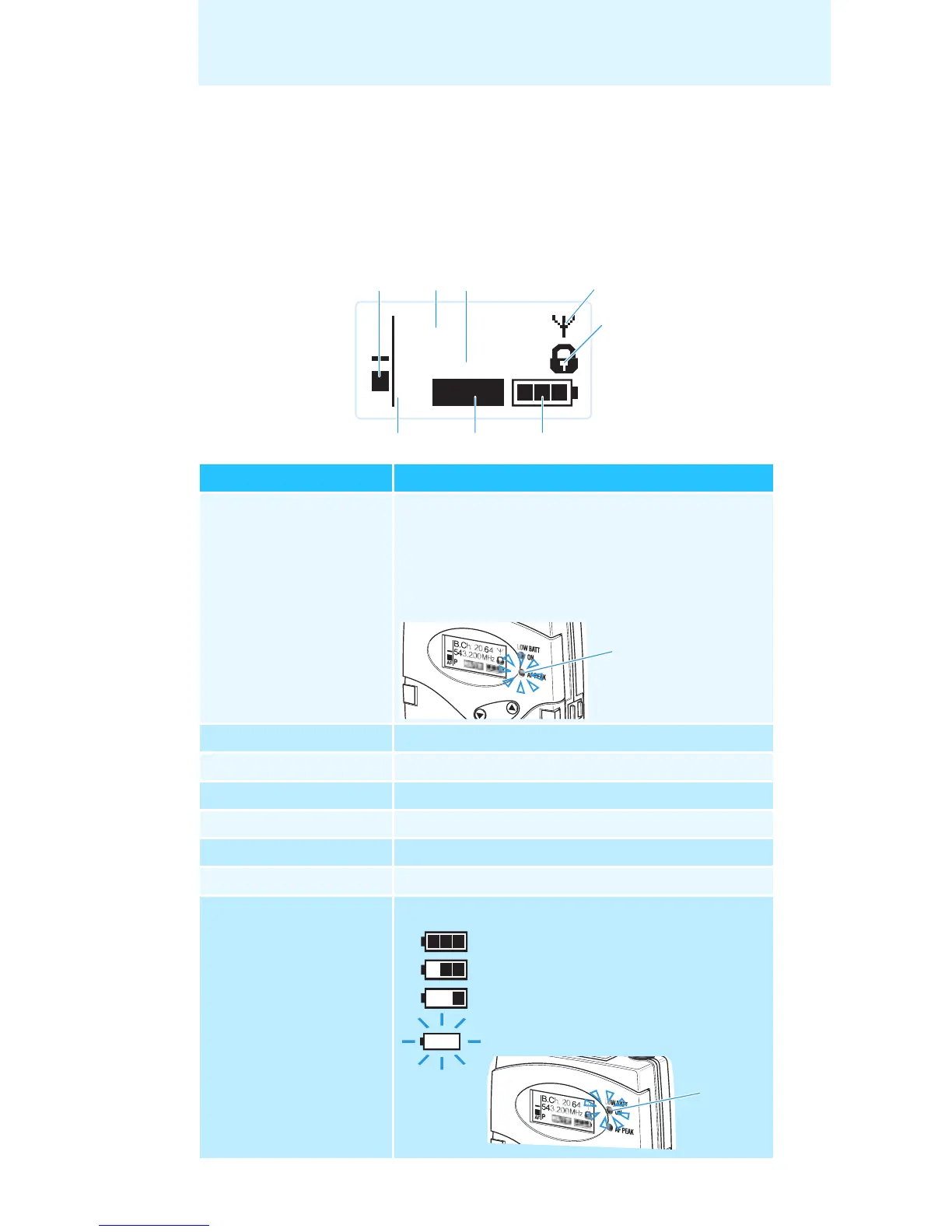

Overview of the displays
After switch-on, the bodypack transmitter displays the “Frequency/
Name” standard display. For further illustrations and examples of the
different standard displays, refer to page 15. The display backlighting is
automatically reduced after approx. 20 seconds.
Display Meaning
Audio level “AF” Modulation of the bodypack transmitter with
peak hold function
When the audio input level is excessively high,
the “AF” display shows full deflection and, in
addition, the yellow AF PEAK LED lights up:
Frequency Current transmission frequency
Name Freely selectable name of the transmitter
Transmission icon RF signal is being transmitted
Lock mode icon Lock mode is activated
“P” (pilot tone) Pilot tone transmission is activated
“MUTE” Microphone or line input is muted
Battery status Charge status:
MHz
543.200
**2000**
MUTE
P
AF
approx. 100%
approx. 70%
approx. 30%
charge status is critical
, the red
LOW BATT LED
is flashing:
