Detectors with 4-20mA output
Detectors with 4-20mA analogue output are either connected to the central unit, directly on the
main board or via one remote 8-input STG/IN8-S module. The module may be connected
remotely to the central unit. For connection, a detector with a 4-20mA analogue output requires a
3-conductor cable: 2 conductors for the power supply (usually from 12 to 28 Vdc - refer to the gas
detector technical manual) and one conductor for the 4-20mA signal. The generally
recommended cable is a shielded 3 x 0.75, which allows up to 100 meters between the gas
detector and STG/IN8-S input module
Detectors with 4-20 mA output directly connected to the central unit

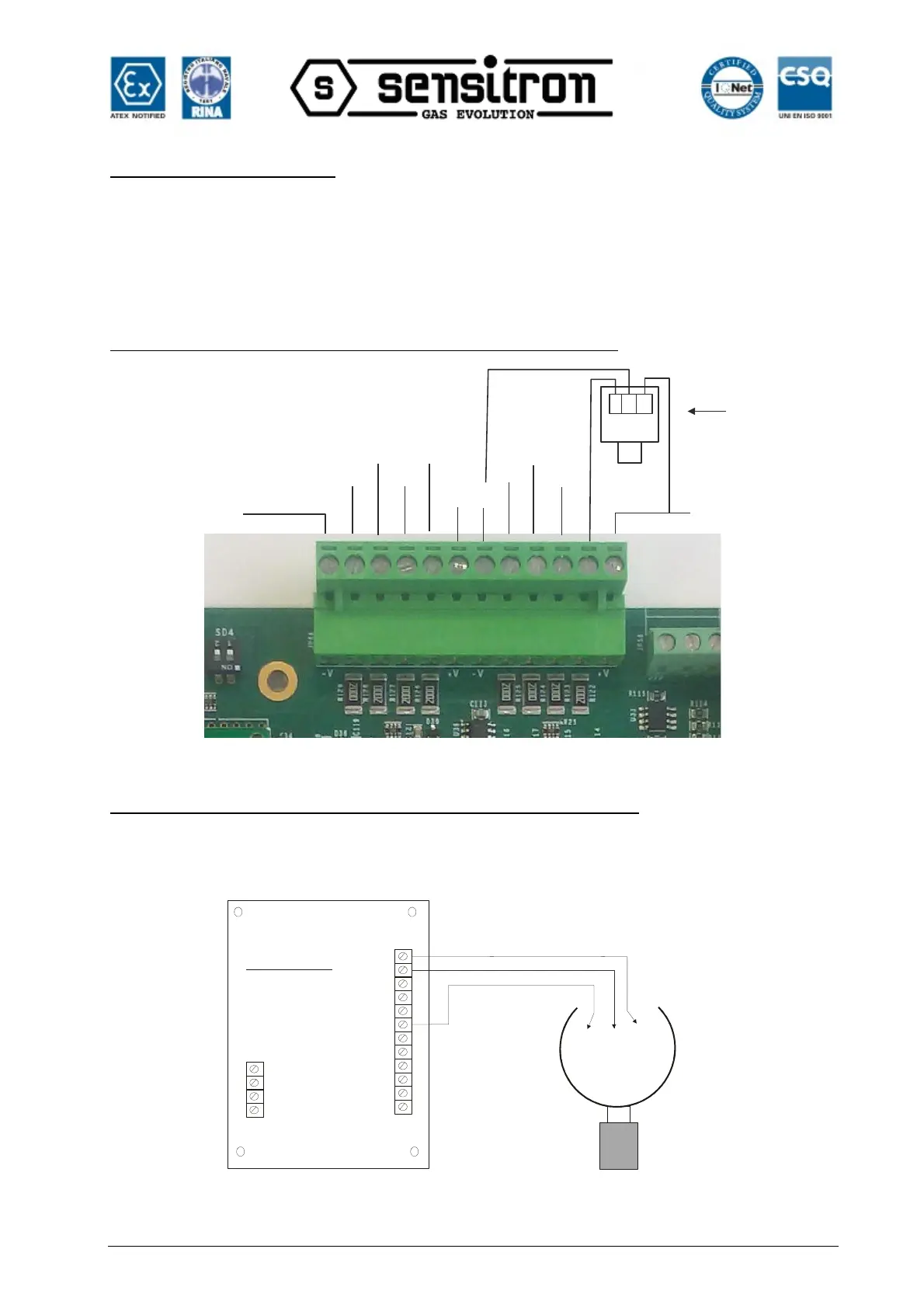

Fig. 2.2.1 a) Connection of the 8 detectors of the central unit
Detectors with a 4-20 mA output connected to the ST.G/IN8-S module
The following diagram shows the connection of a gas detector with a 4-20 mA output to a
STG/IN8-S input module. During system start-up, make sure that each gas detector reaches a
minimum voltage of 12 Vdc.
Fig. 2.2.1 b) Connection of the 8 detectors of the ST.G/IN8-S module
