MT4412E Rev.3 15/10/2019 Page 19 of 30
2.4) STG/OUT16-S remote output modules
STG/OUT16-S remote modules are field mounted and connected to the central unit via RS485
buses. They provide 16 Open Collector outputs (negative switch) with a programmable function
for the remote activation of sirens, solenoid valves, relays, etc. Up to 2 8-relay boards can be
connected to each STG/OUT16-S module, transforming the output from Open Collector to a
voltage-free exchange contact.
See the summary table in para. X for the maximum number of connectable modules to the central
unit. 1) INTRODUCTION
Each module must be addressed using the rotary switches on the PCB. The address must be
univocal and between 1 and 255 (1-247 for the Modbus protocol).

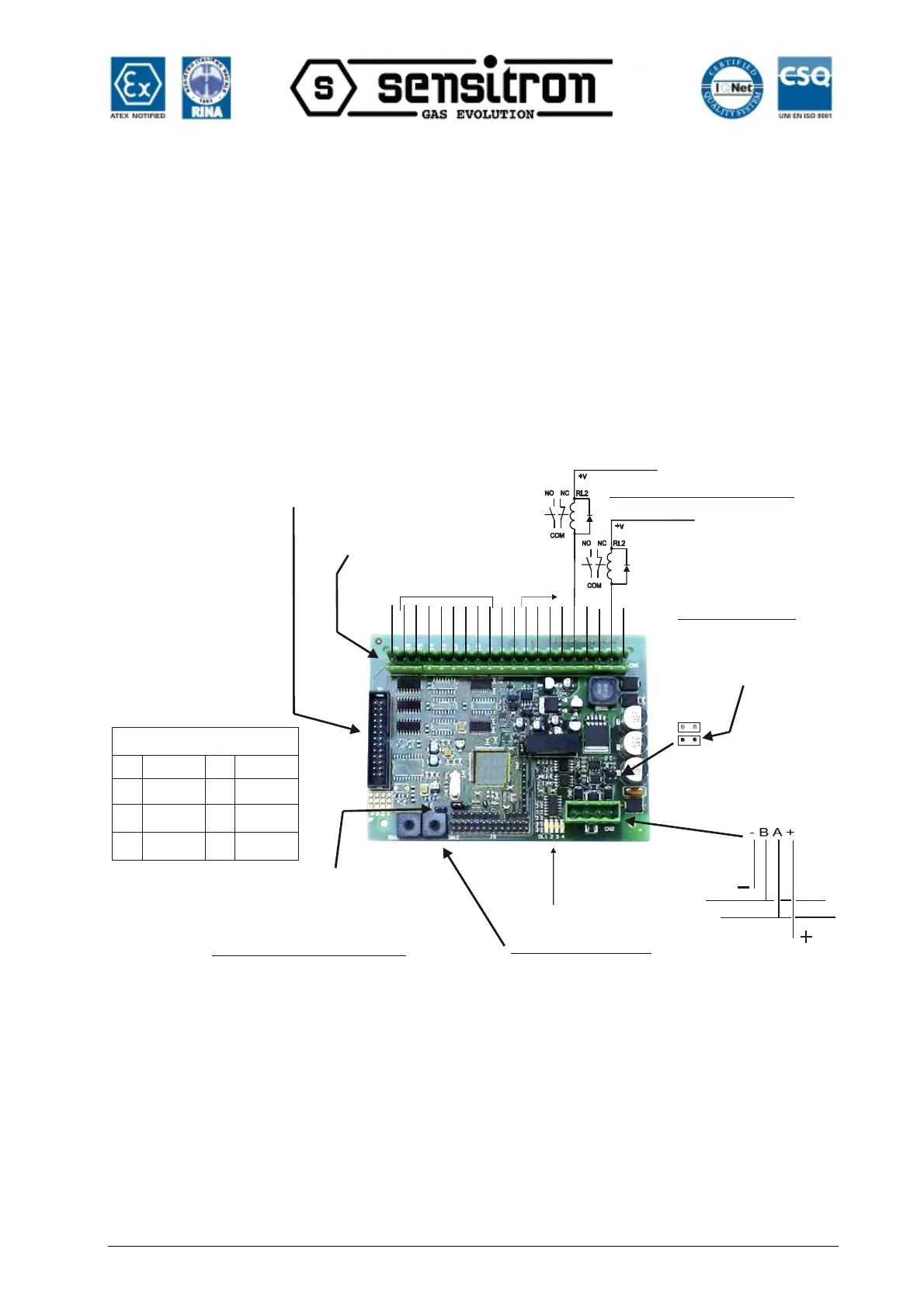

Fig. 2.4) STG/OUT16-S module
Morsettiera alimentazione
e linea seriale
(Power supply and serial line)
Commutatori rotativi per
l’indirizzo del modulo
Jp13 Communication Baud Rate setting:
Closed 115.000 bps
(Multiscan++ control panel
Open 9.600 bps
(old Galileo Multiscan control panel)
Jp13 Settaggio velocità comunicazione:
Chiuso 115.000 bps
(Centrale Multiscan ++)
Aperto 9.600 bps
(vecchia centrale Galileo Multiscan)
Led
DL1: Guasto WD /WD Faul
DL2: TX Data
DL3: RX Data
DL4: RTS
Resistenza di file linea
(EOL resistor)
chiudere s
close i
è l’ultimo della linea /
f the module
is the last of the bus line
e il modulo
-V
+V -V
Morsettiera uscite O/Ci
(O/C output connections)
Outputs 9-16
Out 1-8
A
B
Rs485 serial line
Collegamento scheda relè (opzionale)
/ Relay board connection (optional)
Jumper da non manomettere
/ jumpers not to be touched
Jp5
Jp6
Jp7
Jp8
Jp9
Jp11
Jp12
Closed 1-2
Closed
Closed
Open
Open
Open
Open
Rotary switches
for the module address
+V
+V
+V
Esempio di collegamento relè
Example of relay connection
