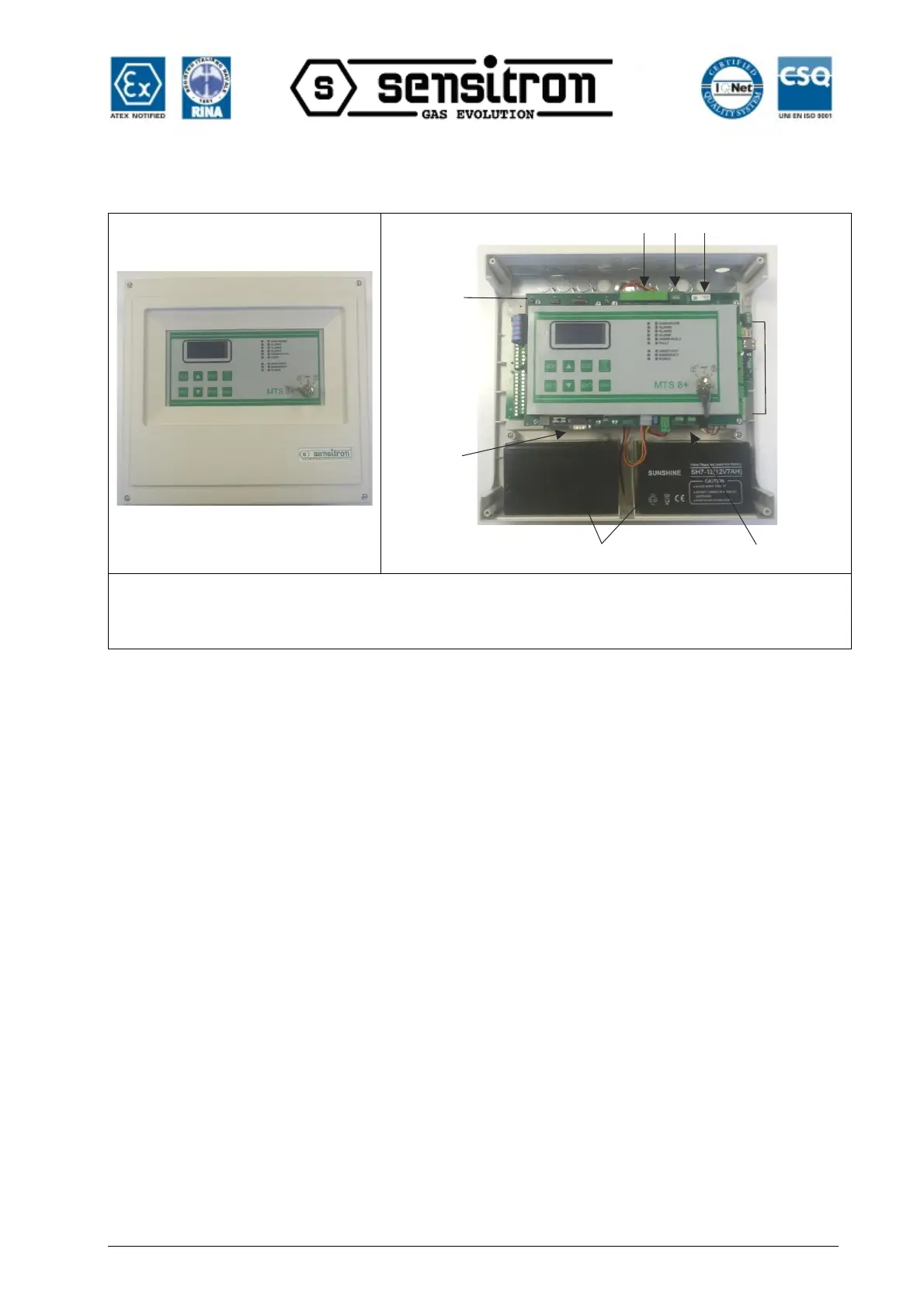

2.1.1) Unit diagram and part identification
1- Power Supply (27 Vdc 4A)
2- 2 x 12V 7Ah batteries (not included)
3- RS232 serial port and USB
4- RS485 serial card
5- Relay outputs (6)
6- 8 inputs, 4-20mA
7- RS485 bus connection
8- Central unit card
Fig. 2.1.1) Unit diagram and part identification
5
4
3
2
1
6 7
8
