PRODUCT INSTRUCTION MANUAL
Page 5 of 35
Part 2 Transmitter Mounting
2.1 Cord Grip Installation

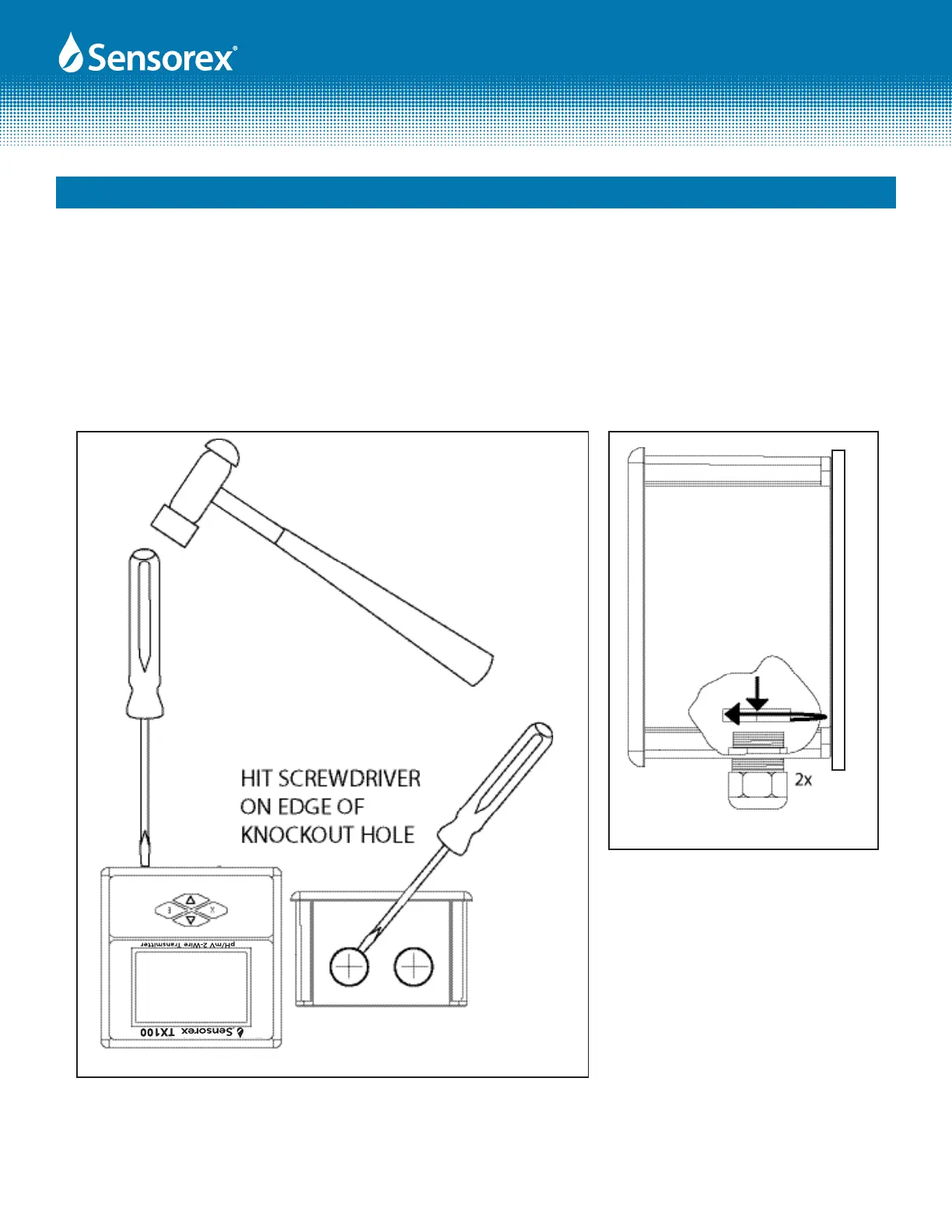

Turn transmitter upside down with display facing you. Punch out either one or two conduit knockouts with
a small hammer and punch as shown below for cord grip mounting. Ensure back cover is installed to provide
mechanical support for the enclosure walls. BE CAREFUL NOT TO DAMAGE THE INTERNAL ELECTRONICS OR
CRACK THE TRANSMITTER CASE while performing this action.
Figure 2.1
Figure 2.2
