Sensorex TX100 - Quick Start Guide

PRODUCT INSTRUCTION MANUAL
Page 3 of 35
1.4 TX100 pH/MV Transmitter - QUICK START GUIDE
The TX100 is supplied with the following preset programming:
Factory Calibrated Values
pH Manual Oset = 0
mV Manual Oset = 0
Temperature Manual Oset = 0
Without TC, Default 25
o
C or 77
o
F
Range Mode [ - ] OFF
Range Mode Lo mV reset to -999 mV
Range Mode Hi mV reset to 999 mV
Range Mode Lo pH reset to 0.00
Range Mode Hi pH reset to 13.99
Hold Mode HLd Lr
Limit Mode O.r. OFF
Clean Probe Timer C.P. OFF
To change any of these parameters, please refer to the specic section in this manual (See Table of Contents).
a. Refer to Section 2 for installation instructions.
b. Connect electrode to transmitter as shown below.
c . Remove front cover from transmitter case by unscrewing four screws in rear corners of transmitter.

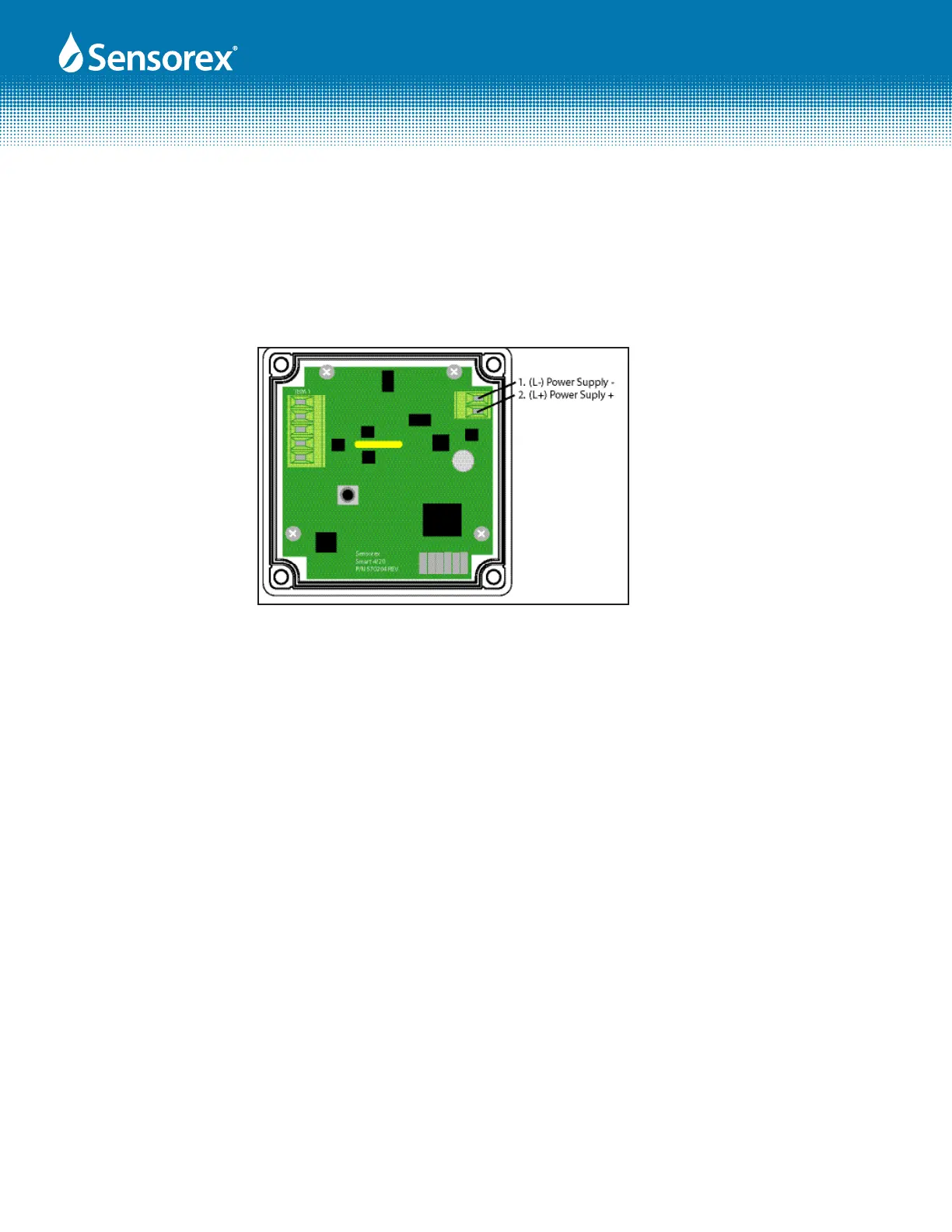

Connect a 12-24V DC, 8 amp maximum power supply as shown above. See page 6 for resistance load vs.
voltage.
d. Transmitter Programming/Setup
