SENTRY II 930TA Series - Drain Line Assembly

29

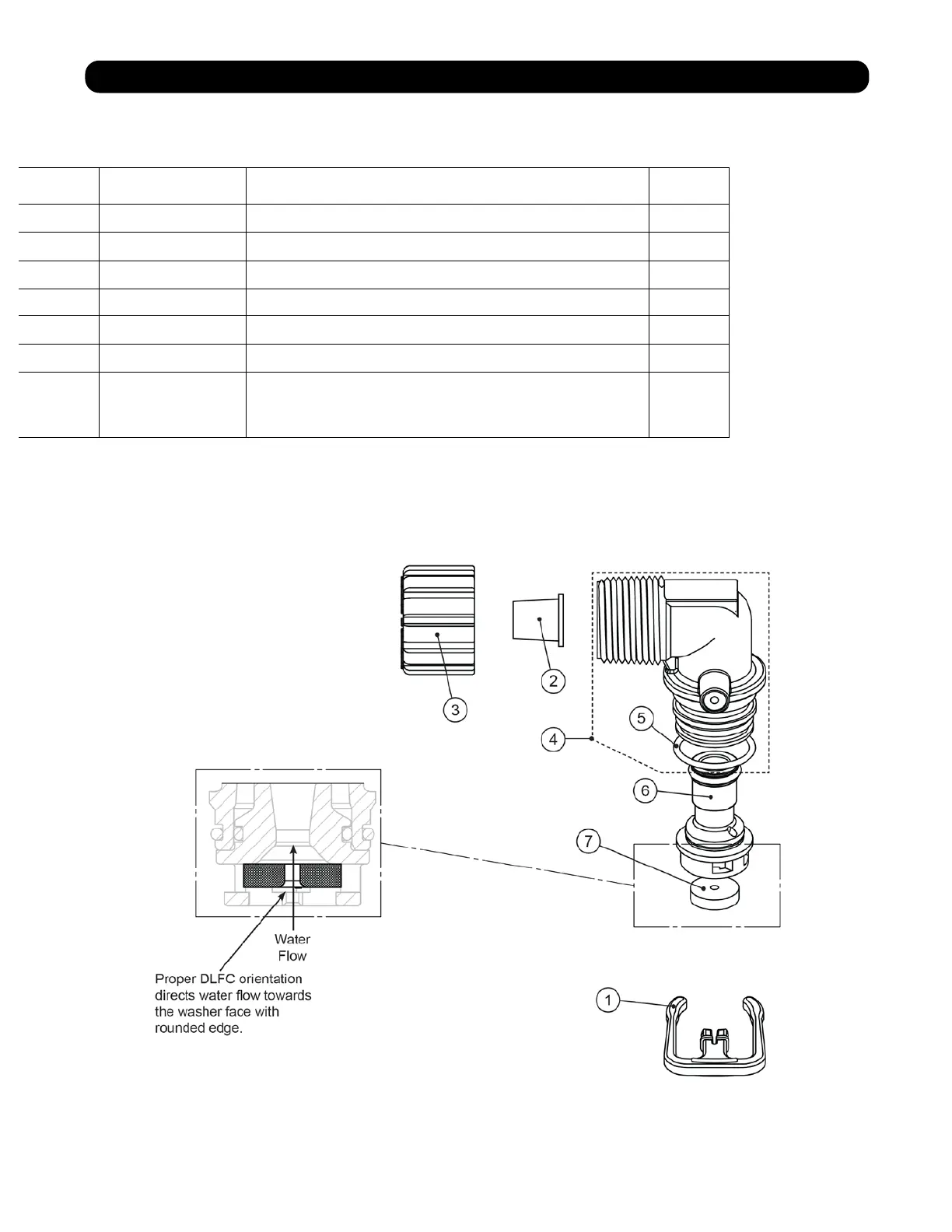

Parts Breakdown
Drain Line Assembly
Drawing
No.
Part No. Description Quantity
1 H4615 Drain Elbow Locking Clip 1
2 PKP10TS8-BULK Polytube Insert 5/8” 1
3 V3192 Drain Elbow Nut 1
4 V3158-01 Drain Elbow "” Male NPT 1
5 V3163 Drain Elbow O-Ring 1
6 V3159-01 Drain Flow Control Retainer Assembly 1
7 V3162-XX
Drain Line Flow Control Button*
*The size of your system will determine which flow
control button is needed.
1
