SENTRY II 930TA Series User Manual

26
Parts Breakdown
Injector Housing Assembly

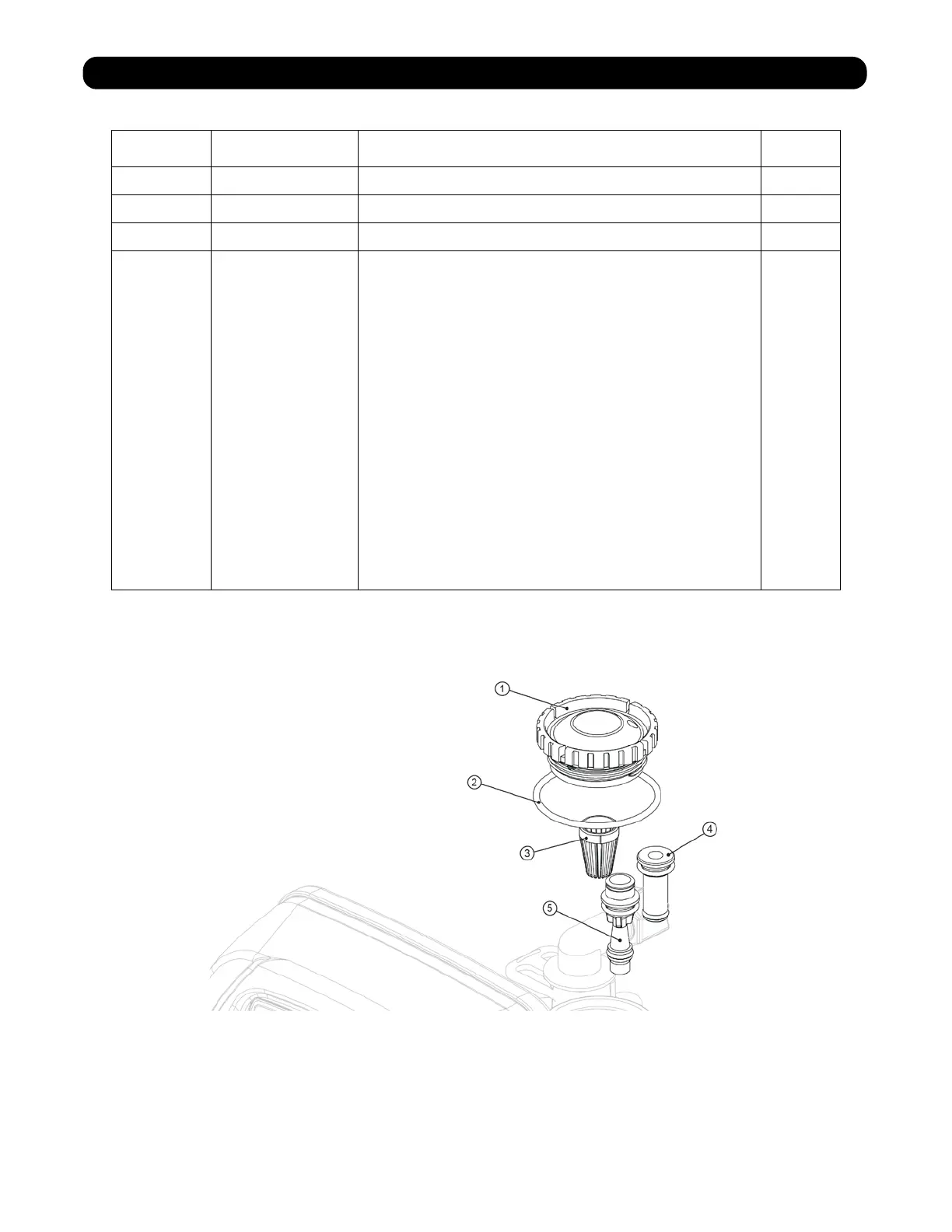

Drawing
No.
Part No. Description Quantity
1 V3176 Injector Cap 1
2 V3152 O-Ring Injector Cap 1
3 V3177-01 Injector Screen 1
4
V3010-1A
V3010-1B
V3010-1C
V3010-1D
V3010-1E
V3010-1F
V3010-1G
V3010-1H
V3010-1I
V3010-1J
V3010-1K
V3010-1Z
Injector Assembly – A Black
Injector Assembly – B Brown
Injector Assembly – C Violet
Injector Assembly – D Red
Injector Assembly – E White
Injector Assembly – F Blue
Injector Assembly – G Yellow
Injector Assembly – H Green
Injector Assembly – I Orange
Injector Assembly – J Light Blue
Injector Assembly – K Light Green
Injector Assembly – Z Plug
1
The size of your system will determine which injector assembly will be needed.
