Wall Console - Fitting the cablesWall Console - Fitting the cables
2 pin header
(AC MAINS)
SUPPLIED MAINS LEAD
WITH PLUG
(Plug fitted varies according
to region and local mains voltage)

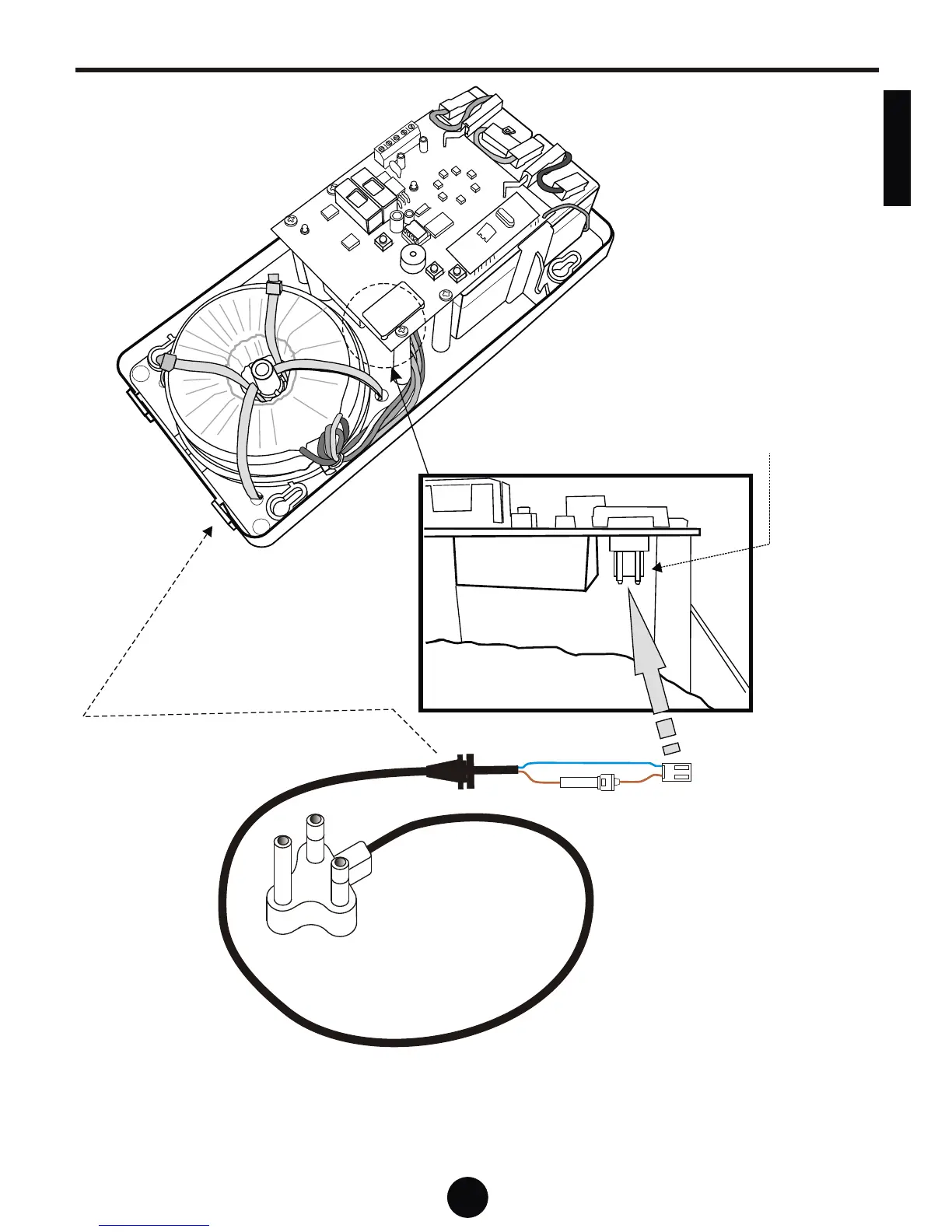

Locate the two pin header on the underside of the wall console PCB as shown
above. Plug the two pin receptacle on the one end of the mains lead, as shown, into
the receptacle. The moulded grommet, on the cable is designed to slot into a mating
receptacle in the base of the wall console as shown above.
