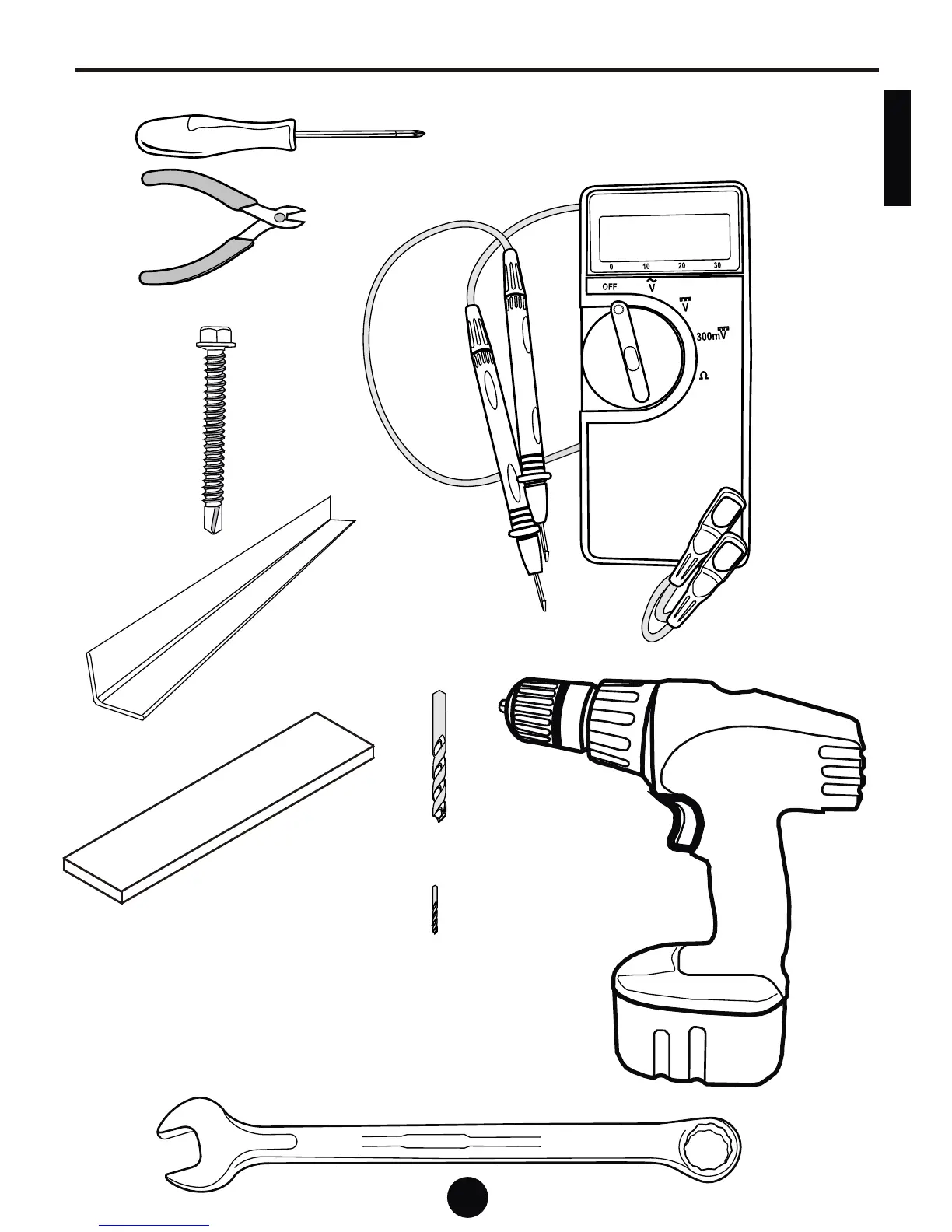

Required Equipment for Installation
Required Equipment for Installation
Philips screwdriver & Flat screwdriver
Small Side Cutter
Multimeter
Impact Drill
Drill with
impact setting
Masonry Drill Bit
(6 ~ 6.5mm)
Spanner set (17 ~ 21)
Tek Screws
Length of
Angled Steel
HSS Drill Bits
(6 ~ 10mm)
Length of
Rectangular steel bar
(To fabricate a base-
plate for KRAZI DOORS)
LISH
E
N
G
9
8
10
Table of Contents
Table of Contents
3
Company Profile
4
Warnings and Cautions for Use
5
Introduction
6
Package Contents
6
Door Types and Considerations
7
Door Checklist
8
Required Equipment
9
Component Details
10
Head Unit
10
Wall Console
11
Fitting Wall Console Cables
12
Fitment of Motor to Door
14
Motor Orientation and Motor Wire Sequence
15
Fitment to Standard Platform Doors
16
Fitment to Other Door Types (KRAZI-DOOR, Etc
22
Fitment of Wall Console
25
System Commissioning
27
Connection Diagram for External Receiver
28
Connection Diagram for IR Beams
29
Connection Diagram for Remote Status LED
30
Powering up the System
31
Setting up Door Limits
33
Adding Weight to very Light Doors
36
Programming Remote Controls
37
Selecting Remote Control Storage Slots
38
Erasing All the Remote Controls
40
Advanced Features
41
Activating and Deactivating Auto-Close
42
Adjusting the Auto-Close Timer
43
Troubleshooting Guide
44
Limit Programming Troubleshooting
44
Operational and General Troubleshooting
45
Error Codes and STATUS LED Flashes
47
Product Specification
48
