Motor Head Unit InstallationMotor Head Unit Installation
The following sections detail how to install the motor head onto the door. Please pay
special attention to the various aspects of installation as failure to do so will lead to
product failure and/or malfunction.
In general, two types of door design exist, the first type is the “Wispeco” type door
where the door pole is mounted on a platform. The second, more common door type
are those doors consisting of a retaining plate. Both types will be covered in the
following sections.
In all cases, you will need to loosen one end of the door, and re-balancing will
inevitably required once the motor is fitted.
The motor may be mounted either side, where space permits, however pay special
attention to the motor polarity wires as this will need to be changed according to which
side the motor is installed.

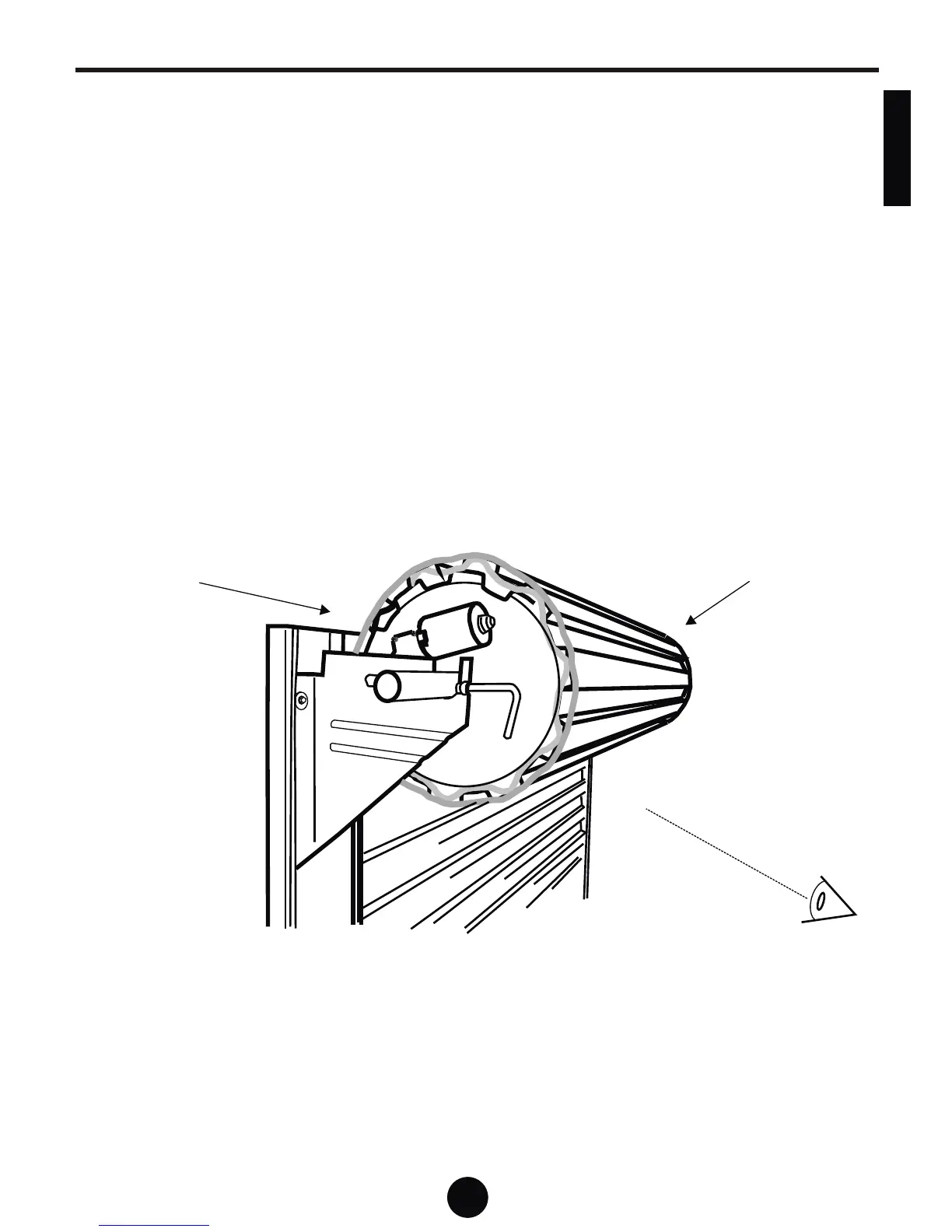

Determining which side of the door is the left and right
Left Hand Side Right Hand Side
From inside the garage, i.e. where the roll is situated, looking at the door as shown,
the left hand side is to your left, the right hand side is to your right. The motor is
factory shipped by default for a left hand side install. If you would like to install
the motor on the right hand side, it is necessary to swap the motor wires on the motor
PCB as shown on the next page.
