Motor Head Unit InstallationMotor Head Unit Installation
Once you have determined where you would like to install the motor, and have
changed the motor wires accordingly (if necessary) the next step required is to loosen
the desired end of the door. The tube is moved away from the door support so that the
motor can be slipped onto the tube.
Most doors, predominantly the WISPECO™ doors are platform mount doors i.e.
the tube rests on platforms to which it is affixed with u-bolts. Many other doors
have different types of fixing systems, but the principle remains the same.

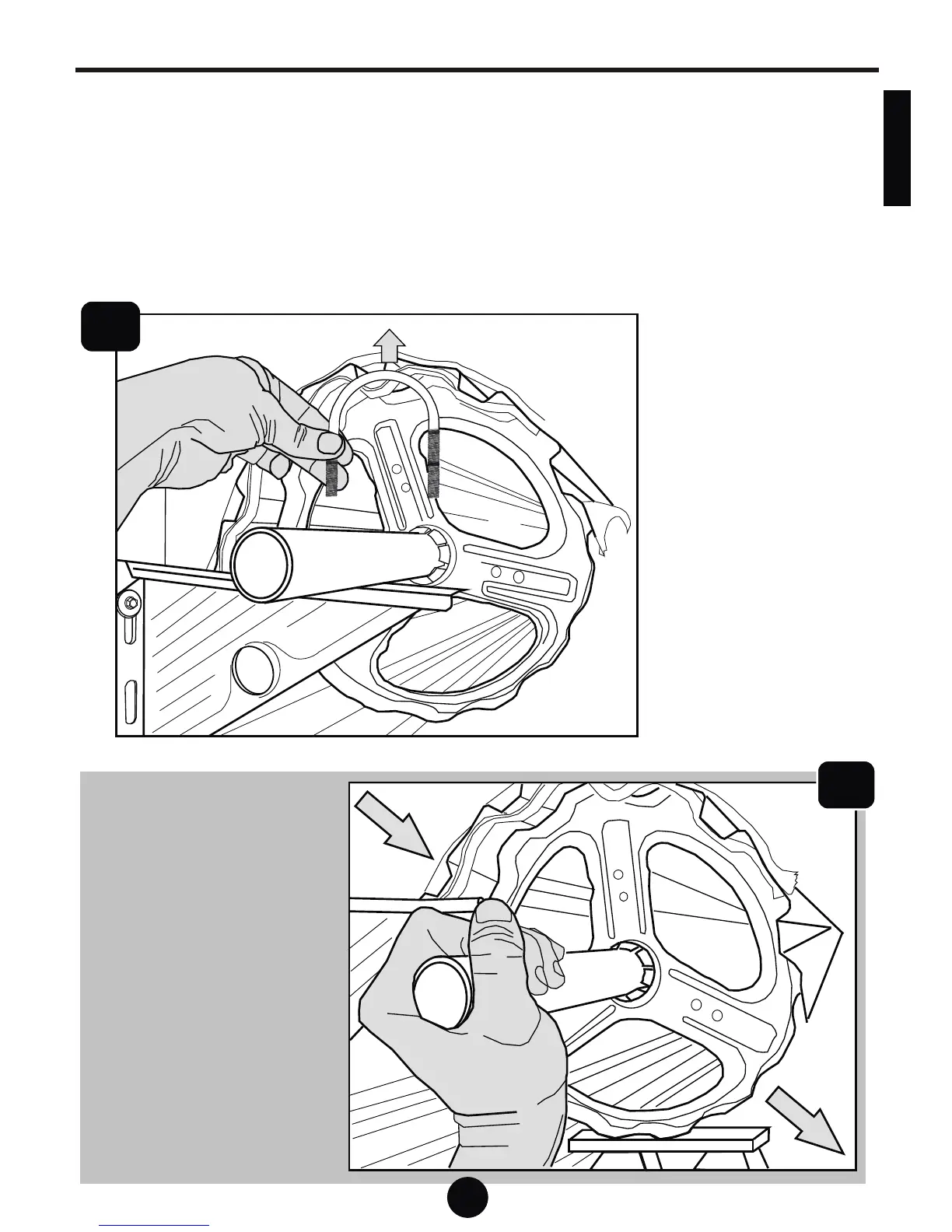

Loosen and remove
the existing u-bolt
completely.
LISH
E
N
G
1
Lift tube off from the
platform and away from it
and lower downwards as
shown.
Support using a trestle or
scaffold, ensure
enough space to fit motor.
Note: Other types of doors
do not have platforms but
side panel brackets, the
procedure is the same, lift
the tube off the bracket
and support it as shown.
2
16
