13
12
horizontal plane

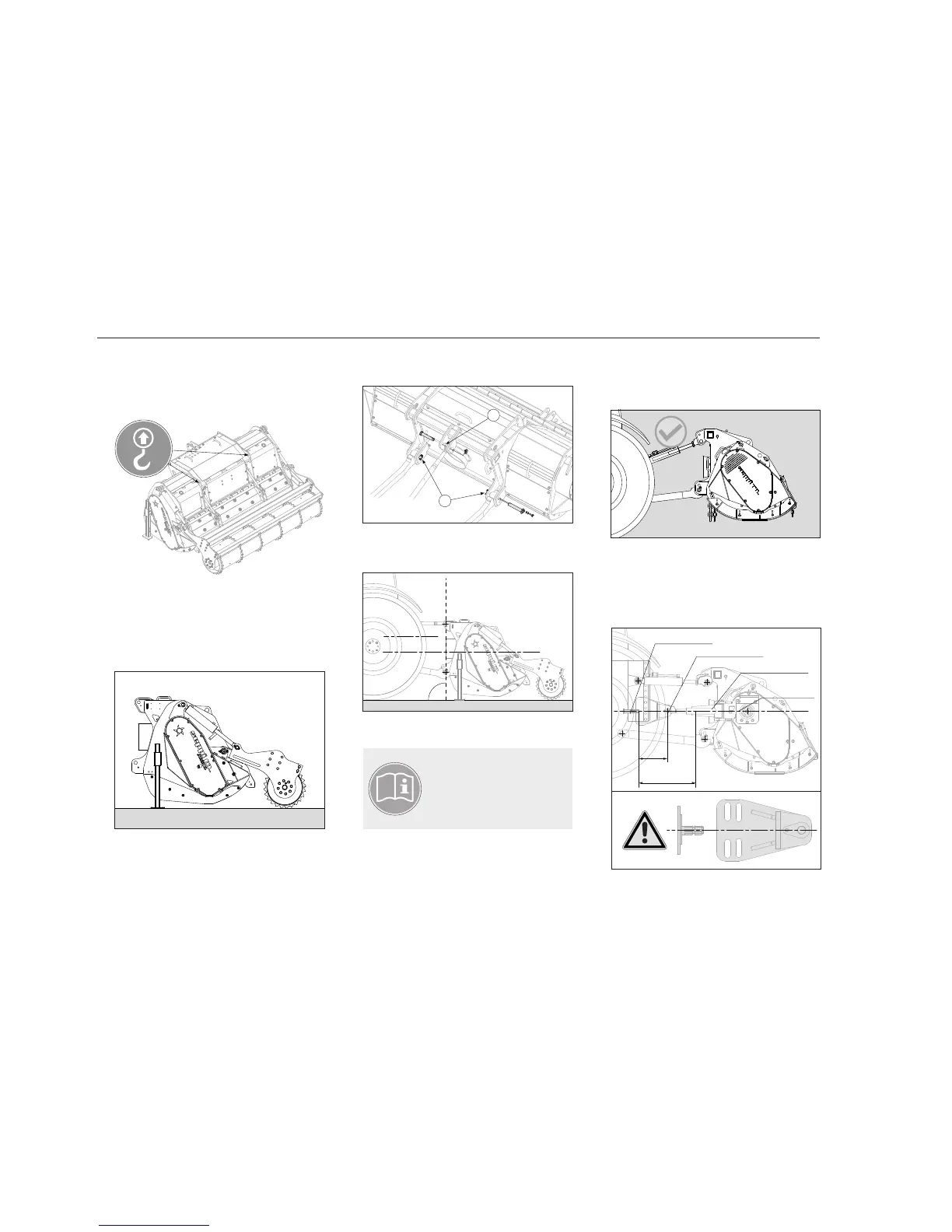

4. HANDLING AND COMMISSIONING
Lift the machine using only the specific hooks
indicated.
NEVER lift the machine from the rotor!
1) Set the machine on a flat plane with a stable
bottom.
5) If applicable, fix the side outriggers of the tractor
4) Adjust the third point so that, when the
machine is flat, the PTO
is parallel to the inlet shaft of the mulcher.
It is not recommended
to use the third hydraulic point
without the ADAM™
alignment system
4.1 Handling, lifting and unloading
4.2.2 Application of the machine with
ADAM™ system
4.2 Commissioning
4.2.1 Applying machine to
tractor's 3-point linkage
2) Connect the hubs of the bottom lifting arms to
the bottom lifting pins (A)
3) Connect the joint of the third point to the pin of
the third point (B)
B
A
90°
PTO //
inlet shaft //
If the machine has the ADAM™ alignment
system, it can be connected as described in the
previous paragraph. Then you must:
1) Check that the tractor side support is suitable
to the tractor in use. The tractor side support
must be mounted so that the position of the
joint pin is at the same height as the PTO
and in the middle between the PTO and
gearbox inlet shaft.
L
joint pin
PTO
inlet shaft
PTO - Pin axis
L/2
