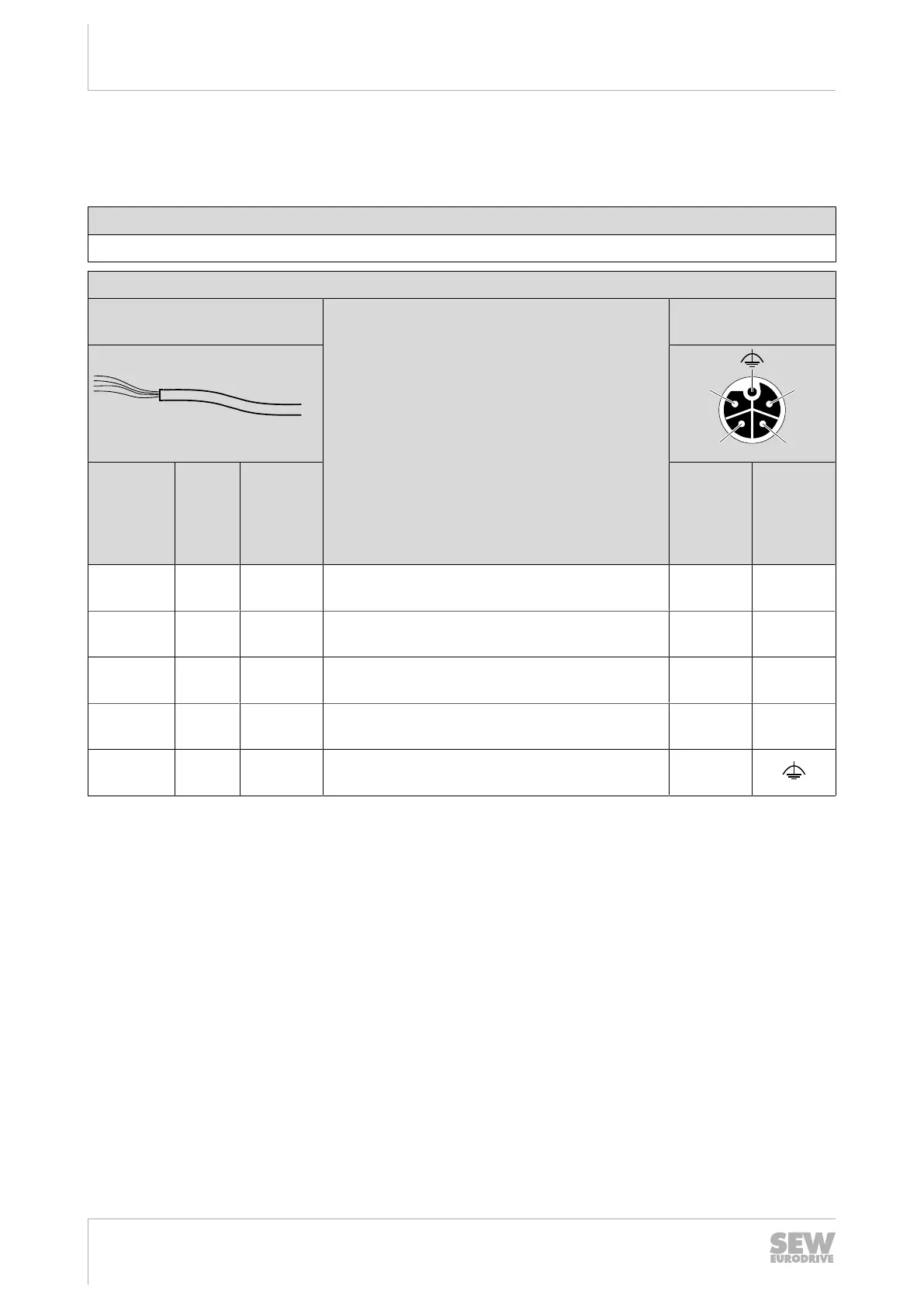

Page #108 background image
5
Electrical installation
Assignment of the optional plug connectors
Operating Instructions – MOVIMOT
®
flexible
108
Connection of cables with open end
The following table shows the conductor assignment of cables with the following part
number:
Part numbers
28117786
Assembly
Open cable end Description Prefabricated plug
connectors
4
1
3
2
Core
color/
Core
cross sec-
tion
Identi-
fication
Assembly Signal Contact
Black
2.5mm
2
1
Not pre-
fabricated
DC24V output/L1
(for backup voltage/supply)
+24V/L1 1
Black
2.5mm
2
2
Not pre-
fabricated
0V24 reference potential/N2
(for DC 24V /BES brake rectifier)
0V24/N2 2
Black
2.5mm
2
3
Not pre-
fabricated
0V24 reference potential/N1
(for backup voltage/supply)
0V24/N1 3
Black
2.5mm
2
4
Not pre-
fabricated
DC24V output/L2
(for DC 24V /BES brake rectifier)
+24V/L2 4
Black
2.5mm
2
5
Not pre-
fabricated
Functional earth FE
29128668/EN – 12/2019
