SEW-Eurodrive MOVIMOT flexible MMF1 C/DSI Series User Manual

5
Electrical installation
Assignment of the optional plug connectors
Operating Instructions – MOVIMOT
®
flexible
109

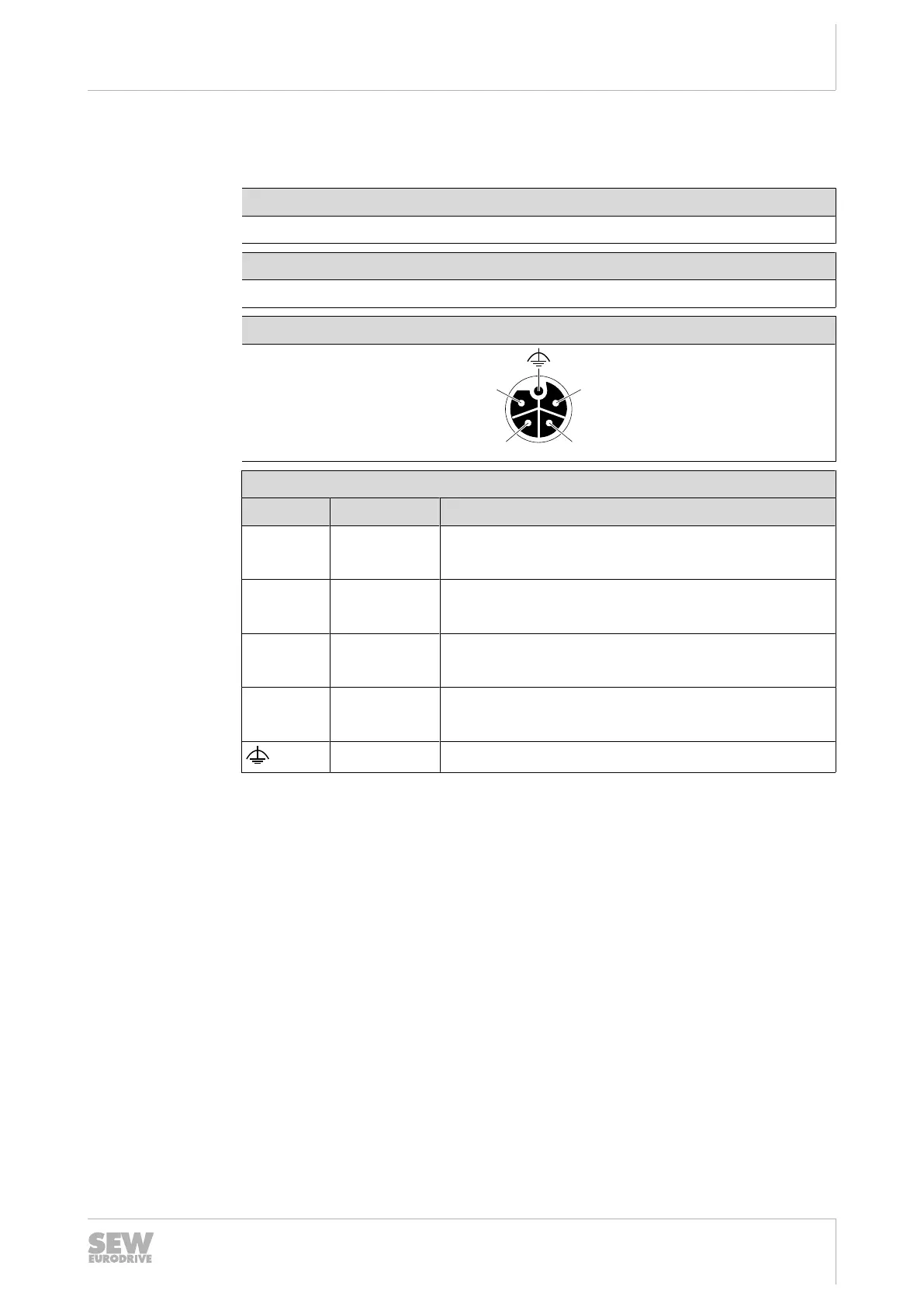

5.11.6 X2313: DC24V output backup voltage
The following table shows information about this connection:
Function
DC 24V output backup voltage
Connection type
M12, 5‑pin, female, L‑coded, color: light gray
Connection diagram
4
1
3
2
Assignment
Contact Signal Description
1 +24V/L1 DC24V output/L1
(for backup mode)
2 0V24/N2 0V24 reference potential/N2
(for DC24V /BES brake rectifier)
3 0V24/N1 0V24 reference potential/N1
(for backup mode)
4 +24V/L2 DC24V connection/L2
(for DC24V /BES brake rectifier)
FE Functional earth
29128668/EN – 12/2019
