5
Electrical installation
Plug connector assignment at the electronics cover
Operating Instructions – MOVIMOT
®
flexible
140

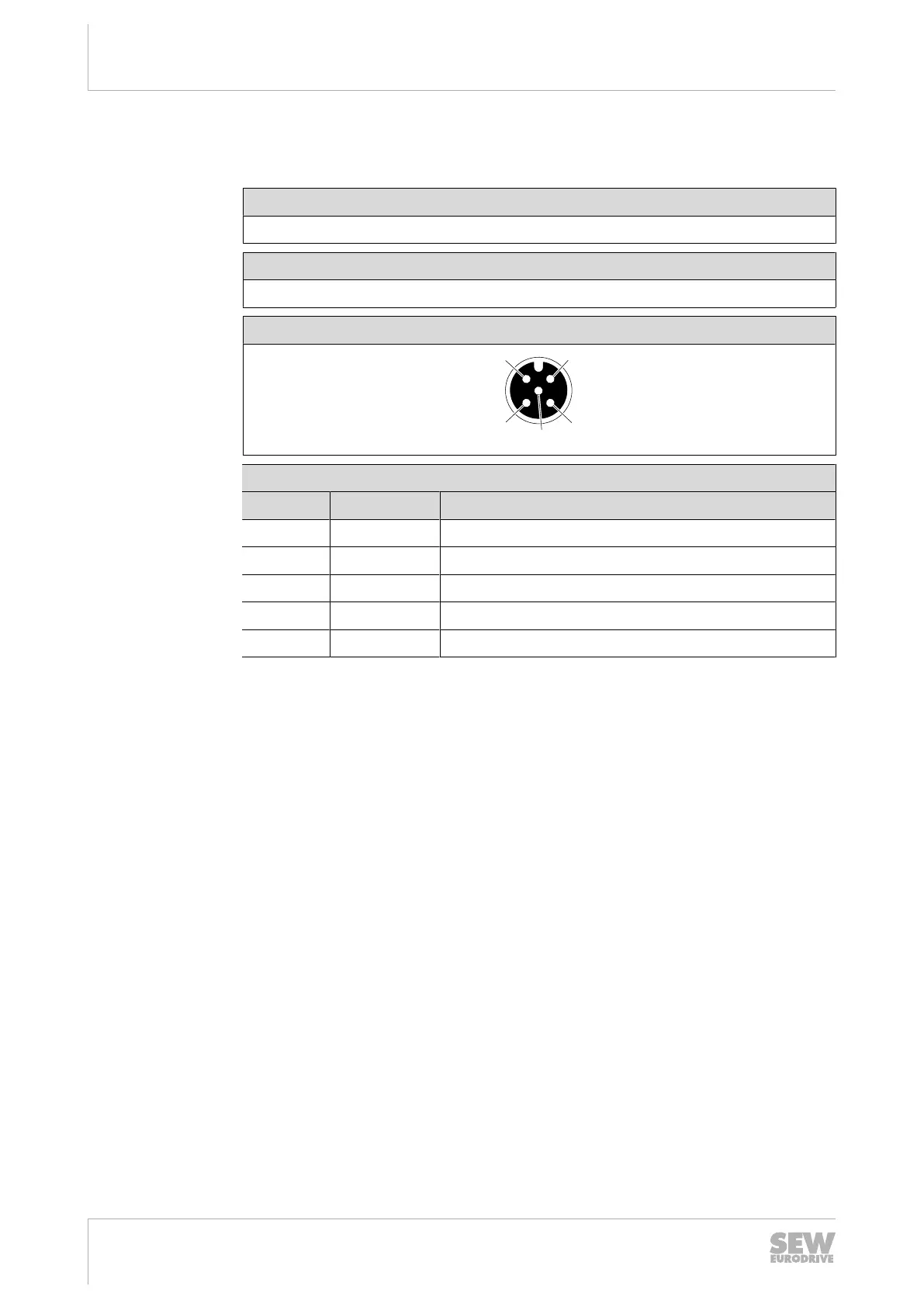

5.12.3 X5133_3: Digital inputs/outputs
The following table shows information about this connection:
Function
Digital inputs/outputs
Connection type
M12, 5‑pin, female, A‑coded, color: black
Connection diagram
1
4
3
2
5
Assignment
Contact Signal Description
1 +24V DC24V sensor/actuator supply
2 DIO02 Sensor input DIO02/actuator output DIO02
3 0V24 0V24 reference potential for sensors/actuators
4 DIO01 Sensor input DIO01/actuator output DIO01
5 FE Functional earth
29128668/EN – 12/2019
