Electrical installation
Plug connector assignment at the electronics cover
Operating Instructions – MOVIMOT
®
flexible
141

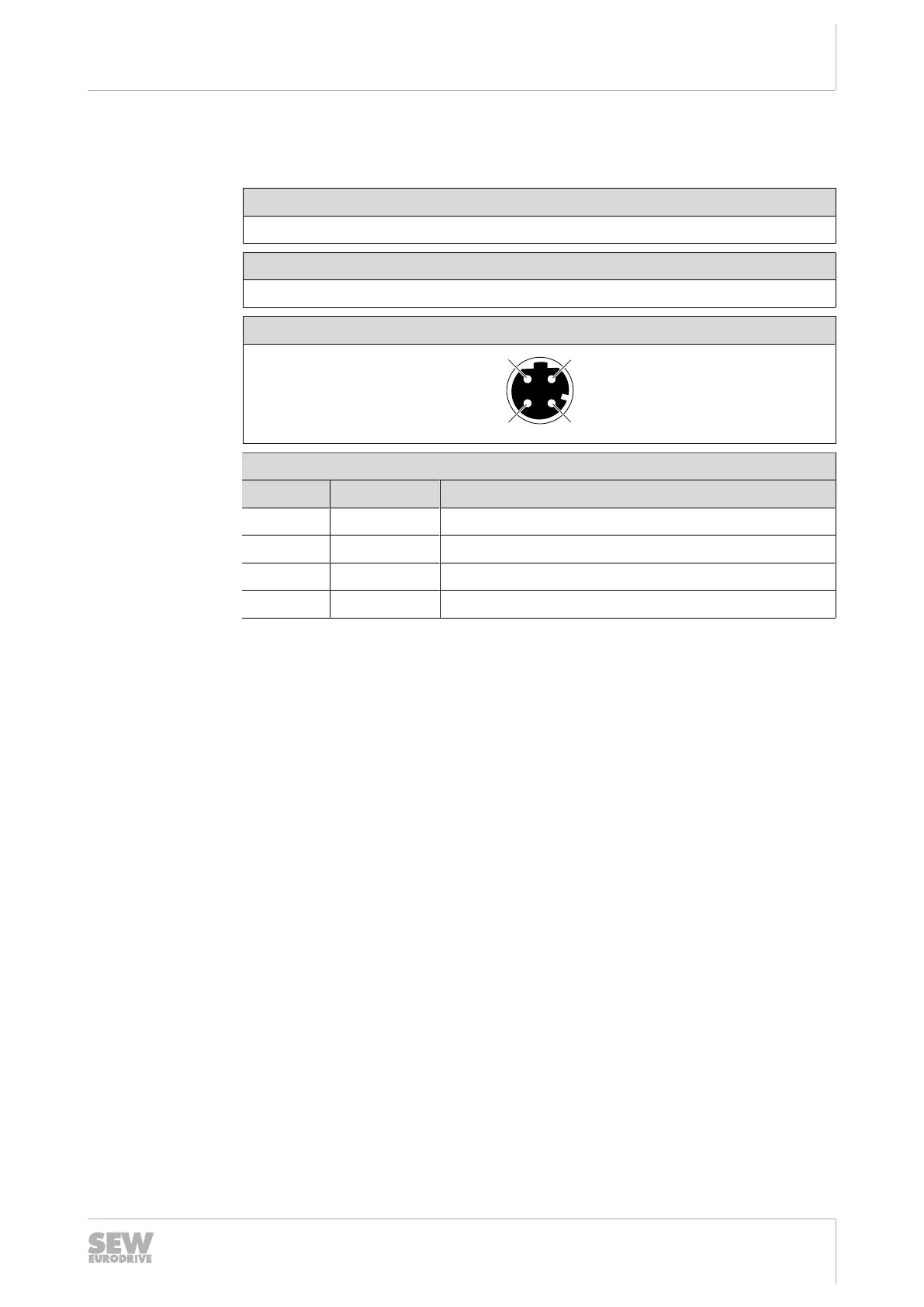

5.12.4 X4233_1: EtherCAT
®
/SBus
PLUS
interface, IN
The following table shows information about this connection:
Function
EtherCAT
®
/SBus
PLUS
interface, IN
Connection type
M12, 4‑pin, female, D‑coded, color: black
Connection diagram
2
4 3
1
Assignment
Contact Signal Description
1 TX+ Transmit line (+)
2 RX+ Receive line (+)
3 TX- Transmit line (-)
4 RX- Receive line (-)
29128668/EN – 12/2019
