5
Electrical installation
Plug connector assignment at the electronics cover
Operating Instructions – MOVIMOT
®
flexible
142

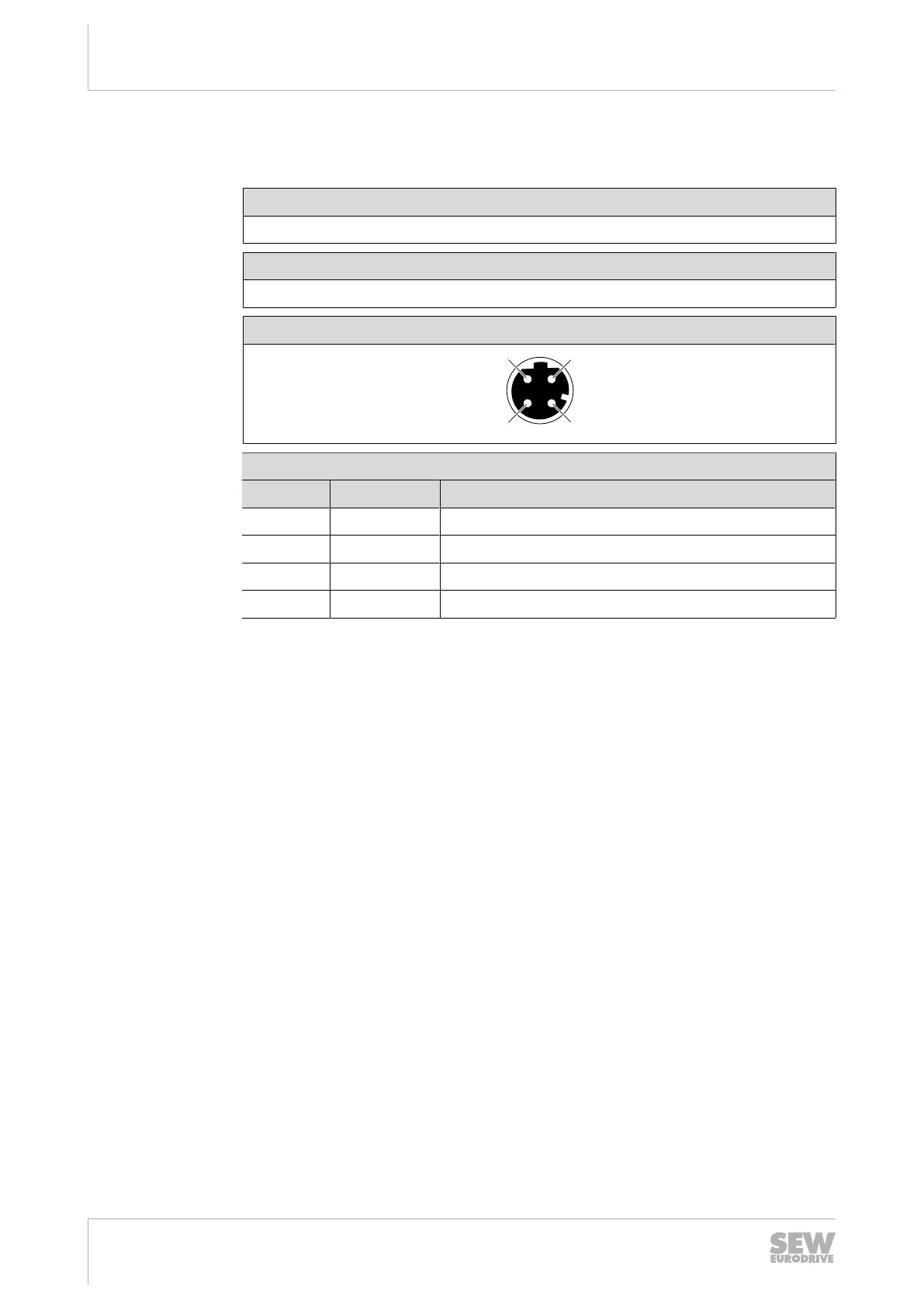

5.12.5 X4233_2: EtherCAT
®
/SBus
PLUS
interface, OUT
The following table shows information about this connection:
Function
EtherCAT
®
/SBus
PLUS
interface, OUT
Connection type
M12, 4‑pin, female, D‑coded, color: black
Connection diagram
2
4 3
1
Assignment
Contact Signal Description
1 TX+ Transmit line (+)
2 RX+ Receive line (+)
3 TX- Transmit line (-)
4 RX- Receive line (-)
29128668/EN – 12/2019
