Sewha SI 410 - INPUT;OUTPUT INTERFACE DETAILS; 6-2. External input; 6-3. Relay output

- 63 -
6-2. External input
Each external input’s function is selectable from function 156~161.

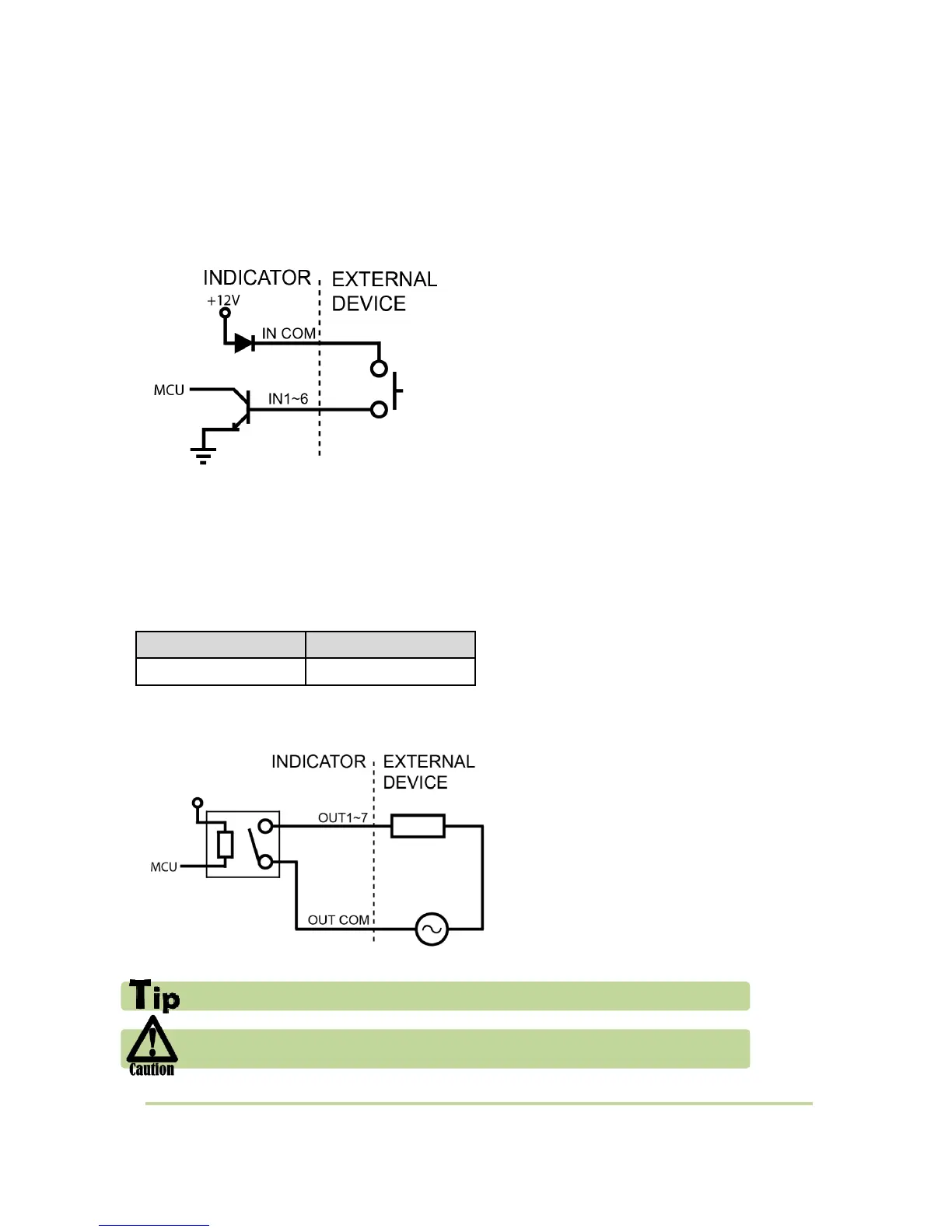

6-2-1. External input circuit composition
6-3. Relay output
7pcs relay out A dry : Each relay output’s function is selectable from function 140~147.
6-3-1. Specification
Contact Ratings VDC
Contact Ratings VAC
24V 3A
250V 3A
6-3-2. Relay output circuit composition
If you enter to Calibration or Test mode, Relay output will be off except OUT7
If you use higher voltage than relay specification, indicator might be damaged.
