Sewha SI 410 - Out

- 46 -

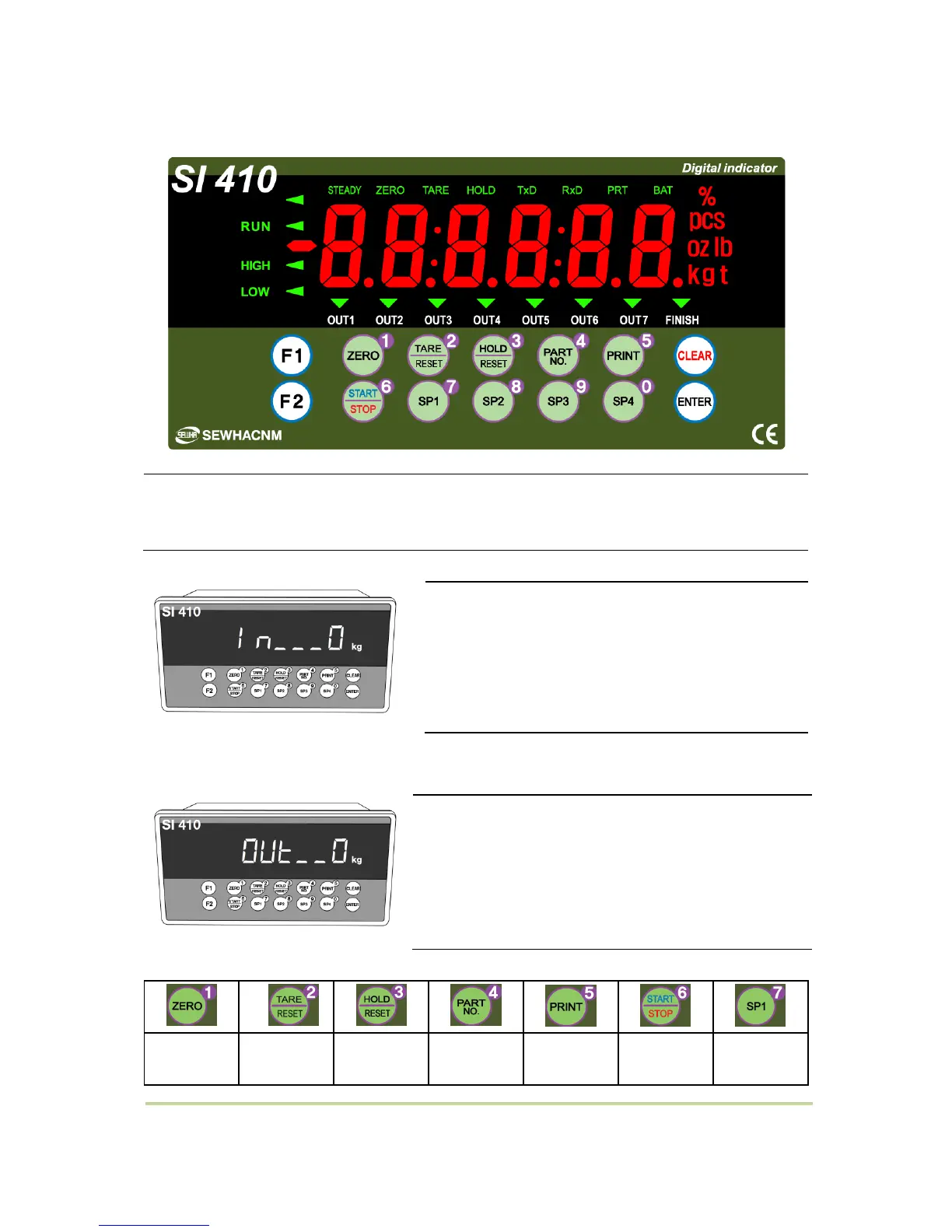

5-6-4 Display check mode
(1) Test FND
(2) Turn on the FND by 1 segment gradually.
(3) After Turn on all of segment, turn off all of segment. Then repeat step (2) and (3).
5-6-5 External Input Check Mode
Show which External input is working.
5-6-6 Relay Output Check Mode
It is able to check Output relay working by pressing
Numeric Key.
(Don’t connect any device with relay output terminal.)
OUT1
ON/OFF
OUT2
ON/OFF
OUT3
ON/OFF
OUT4
ON/OFF
OUT5
ON/OFF
OUT6
ON/OFF
OUT7
ON/OFF
