SEWOO WTP-150 - Page 9

4.85mm
0.141mm
79.5±0.5mm
<80mm {3.15"} paper width model>
2.65mm
576 dots
72mm(dot #1-#576)
59.5±0.5mm
<60mm {2.36"} paper width model>
0.125mm
2.65mm
2.35mm
420 dots
54.5mm(dot #1-#436)

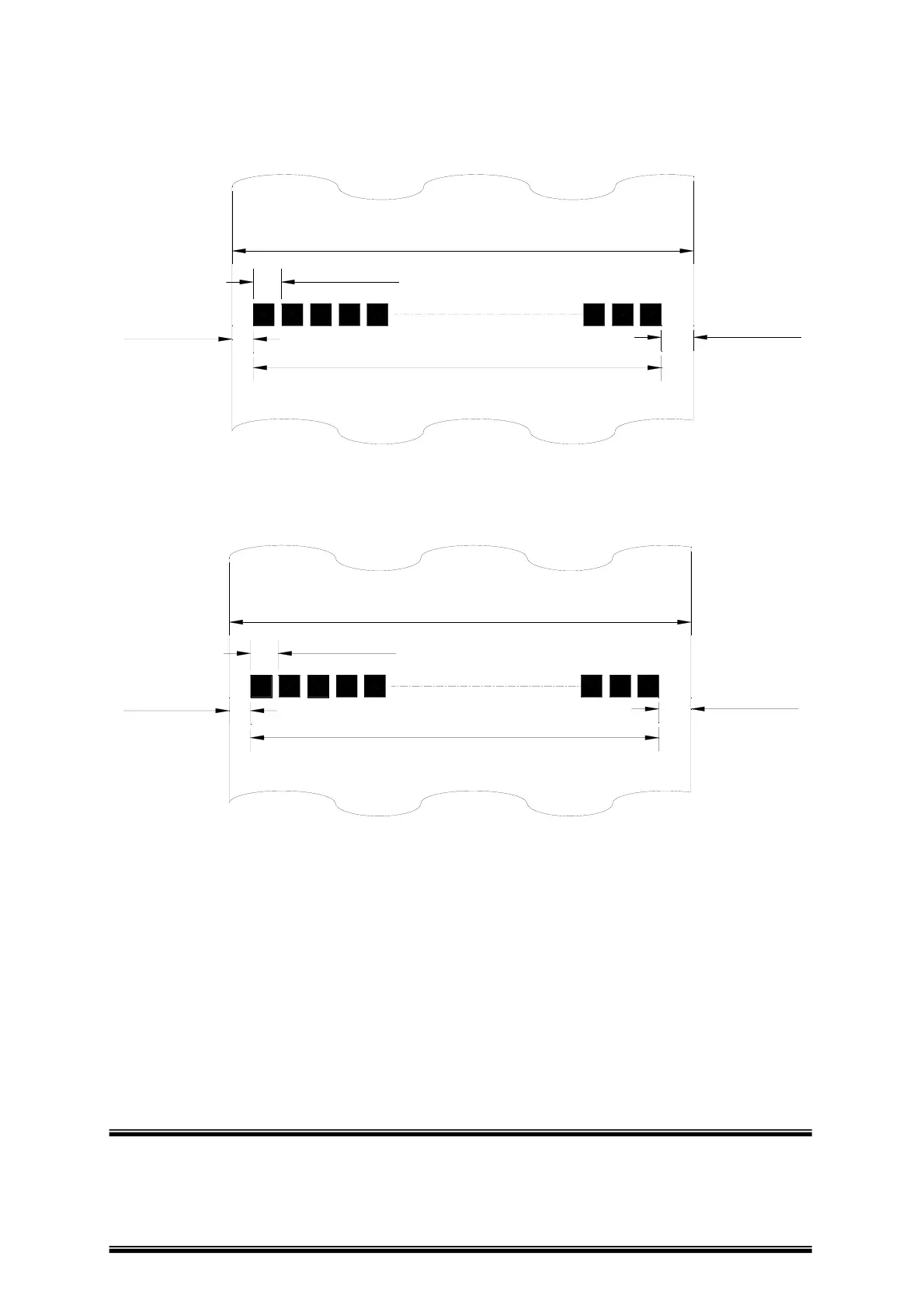

Figure 1.6.3 Printable Area for STAR Emulation (When the Paper Width Is Changed)
NOTE : The numeric values used here are center values to be used in designing. The
printable area may be out of alignment by 2 mm maximum to the left or right, due to the
paper position or tolerance of parts.
TITLE : WTP-150
Page -8 -
