SGS SC90B - Parts Diagram; Parts List

PAGE 17
PAGE 16

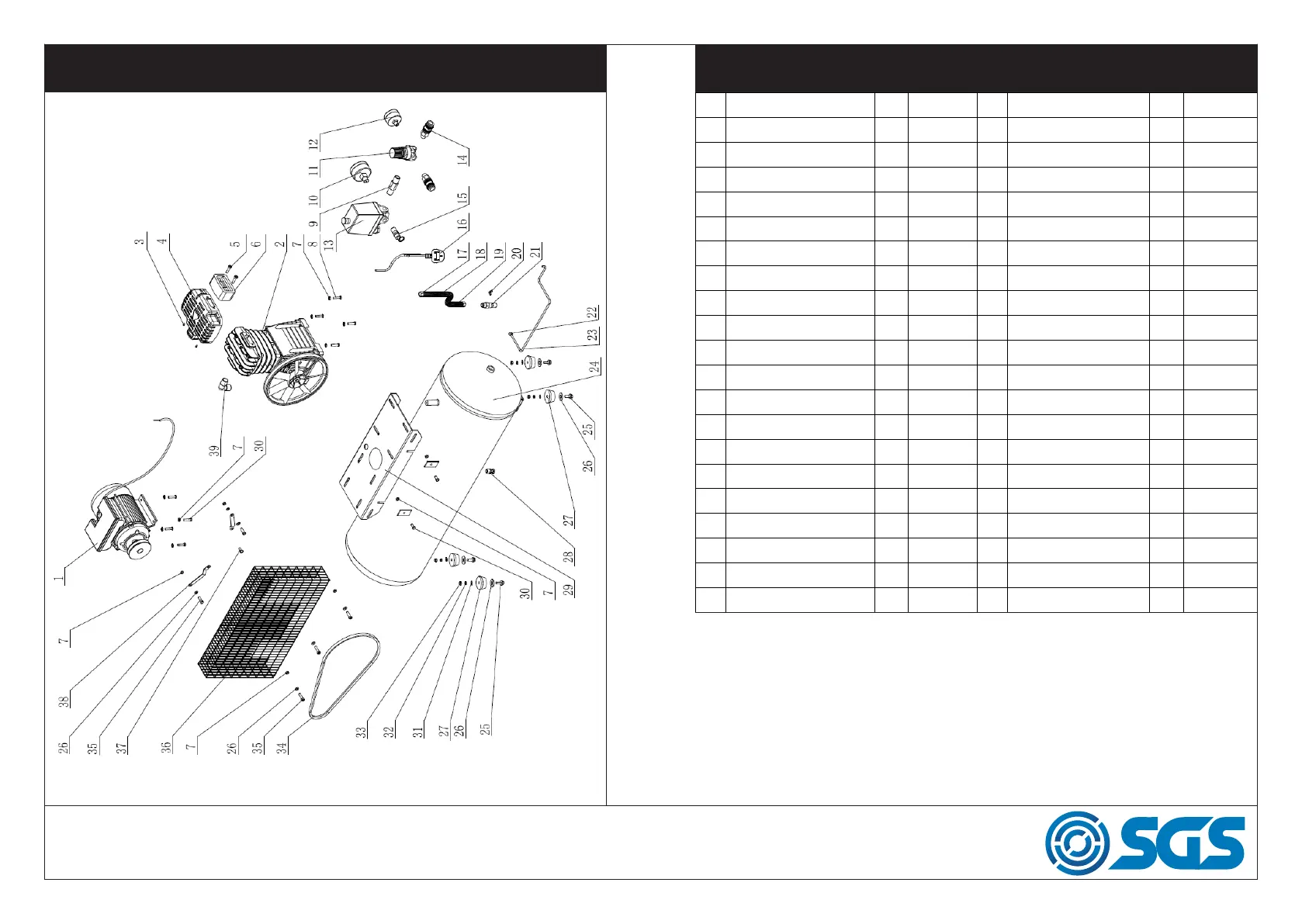

PARTS DIAGRAM PARTS LIST
NO. Description QTY Part No NO. Description QTY Part No
1 Motor Group 1 902689 21 Check Valve 1 902709
2 Pump 1 902690 22 Nut 1 902710
3 Screw 2 902691 23 Aluminum Pipe 1 902711
4 Cylinder Cover 1 902692 24 Tank 1 902712
5 Screw 2 902693 25 Screw 4 902807
6 Air Filter 1 902694 26 Plain Washer 4+5 902808
7 Nut 16 902695 27 Foot Pad 4 902809
8 Screw 4 902696 28 Drain Cock 1 902716
9 Connector 1 902697 29 Pump Board 1 902810
10 Pressure Gauge 1 902698 30 Screw 8 902718
11 Pressure Regulator 1 902699 31 Plain Washer 4 902811
12 Pressure Gauge 1 902700 32 Gasket 4 902812
13 Pressure Switch 1 902701 33 Nut 4 902813
14 Quick Coupler 2 902702 34 Belt 1 902723
15 Safety Valve 1 902703 35 Screw 5 902724
16 Power Wire 1 902704 36 Belt Cover 1 902726
17 Screw 2 902705 37 Screw 1 902727
18 Copper Pipe 1 902706 38 Belt Cover Support 2 902728
19 Cooling Fin 1 902707 39 Elbow 1 902729
20 Elbow 1 902708
