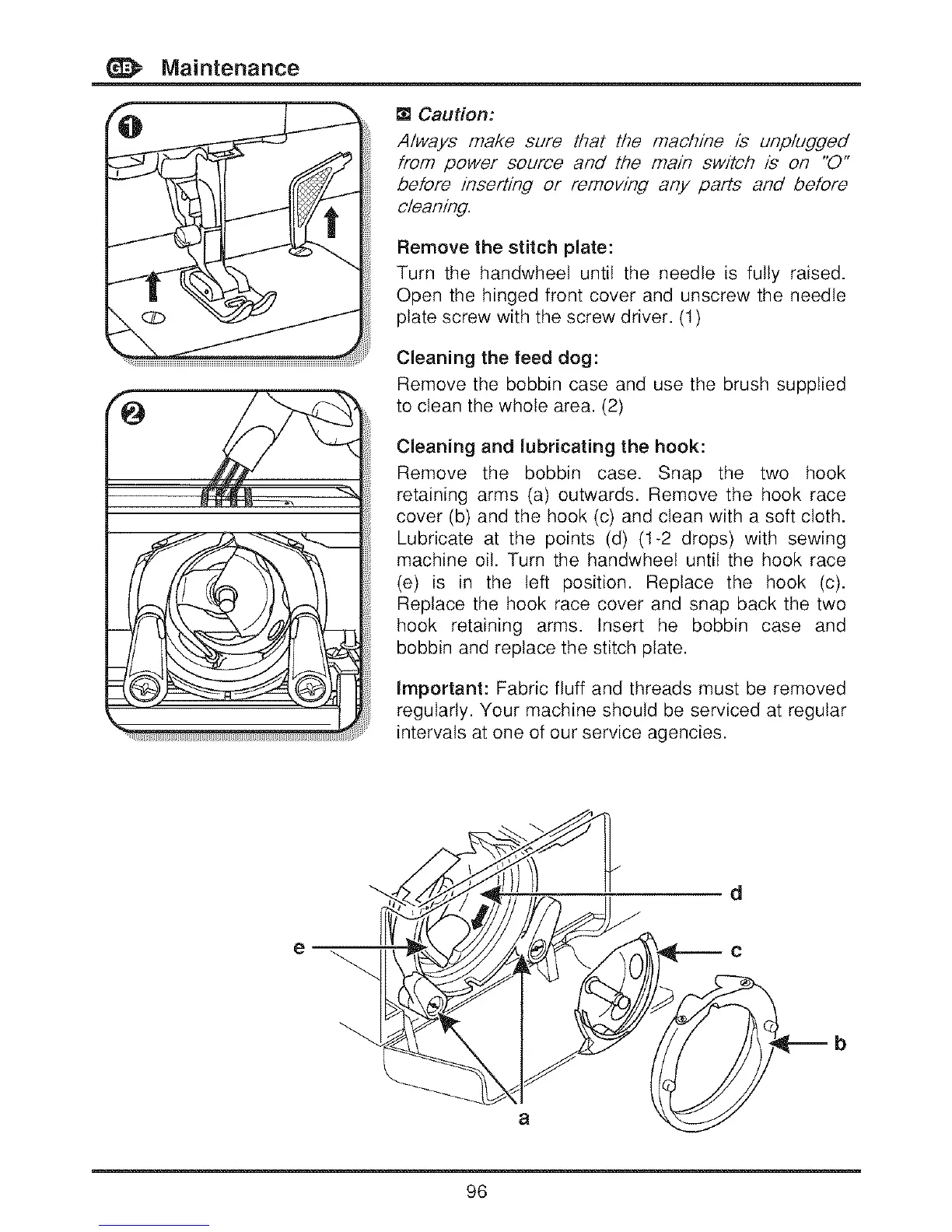

Maintenance
Caution:
Always make sure that the machine is unplugged
from power source and the main switch is on "0"
before inserting or removing any parts and before
cleaning.
Remove the stitch plate:
Turn the handwheet until the needle is fully raised.
Open the hinged front cover and unscrew the needle
plate screw with the screw driver. (1)
Cleaning the feed dog:
Remove the bobbin case and use the brush supplied
to clean the whole area. (2)
Cleaning and lubricating the hook:
Remove the bobbin case. Snap the two hook
retaining arms (a) outwards. Remove the hook race
cover (b) and the hook (c) and clean with a soft cloth.
Lubricate at the points (d) (1-2 drops) with sewing
machine oil. Turn the handwheet until the hook race
(e) is in the left position. Replace the hook (c).
Replace the hook race cover and snap back the two
hook retaining arms. Insert he bobbin case and
bobbin and replace the stitch plate.
important: Fabric fluff and threads must be removed
regularly. Your machine should be serviced at regular
intervals at one of our service agencies.
d
c
96
