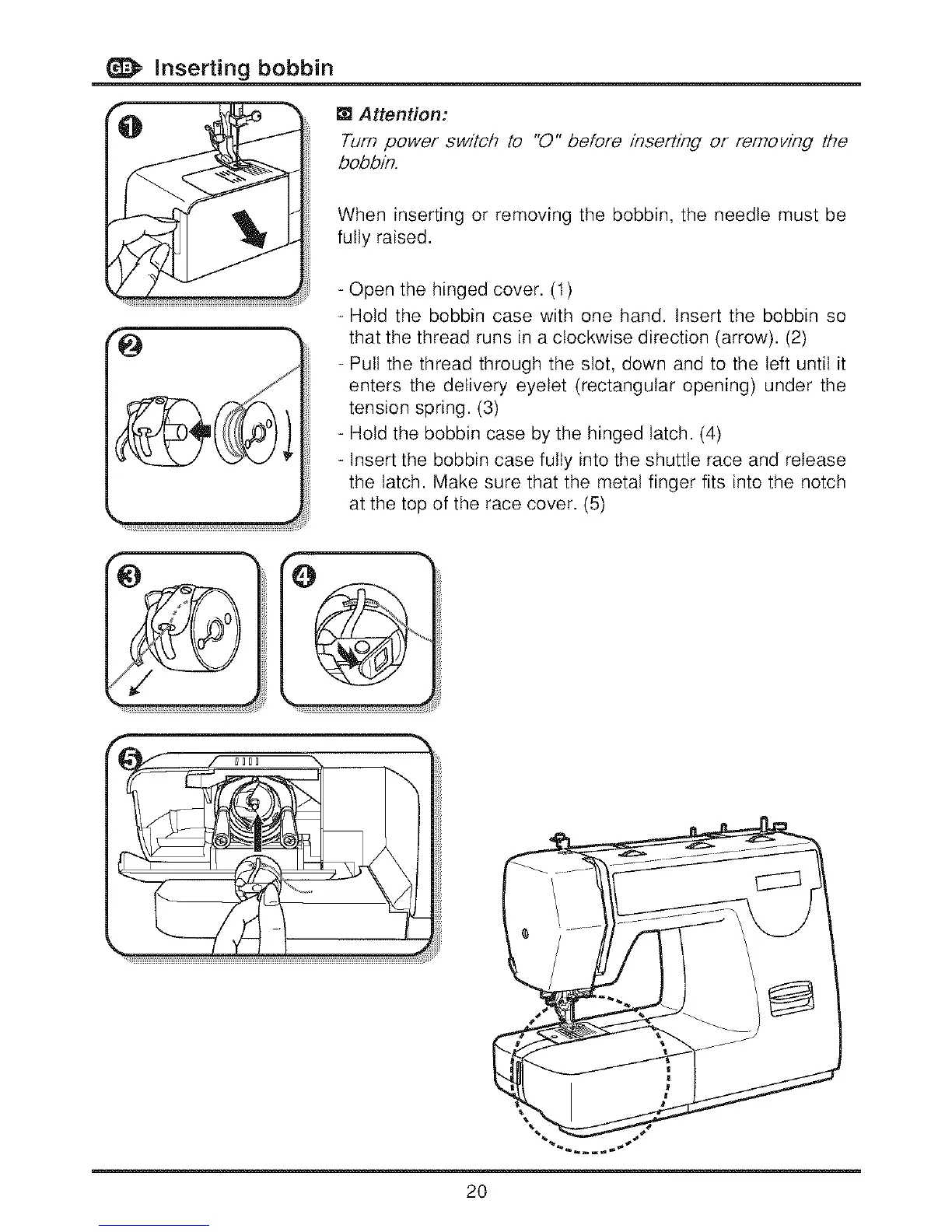

inserting bobbin
[] Attention:
Turn power switch to "0" before inserting or removing the
bobbin.
When inserting or removing the bobbin, the needle must be
fully raised.
- Open the hinged cover. (1)
Hold the bobbin case with one hand. Insert the bobbin so
that the thread runs in a clockwise direction (arrow). (2)
Putl the thread through the slot, down and to the left until it
enters the delivery eyelet (rectangular opening) under the
tension spring. (3)
Hold the bobbin case by the hinged latch. (4)
Insert the bobbin case fully into the shuttle race and release
the latch. Make sure that the metal finger fits into the notch
at the top of the race cover. (5)
2O
