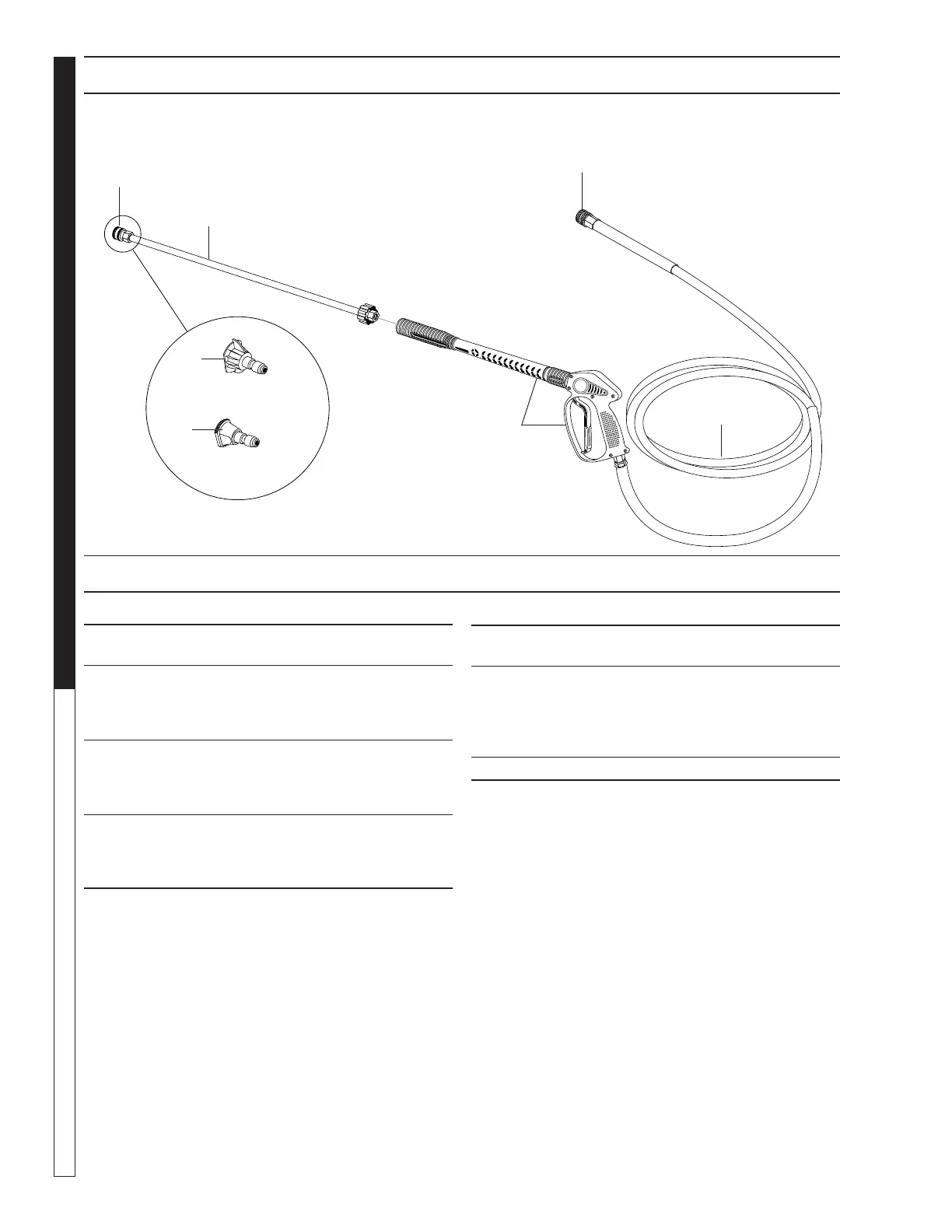

HOSE & SPRAY GUN ASSEMBLY
HOSE & SPRAY GUN ASSEMBLY PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 2-2002 Coupler, 3/8" Female 1
2-0121 ▲ Quick Coupler O-Ring 1
2 4-0203030C Hose, 30' x 3/8" w/Coupler (ET,
ZE Models) 1
4-020930BSC Hose, 30’ x 3/8” w/Coupler (HE
TE Models) 1
3 4-011137 Spray Gun, Shut-Off (ET, ZE
Models) 1
4-01246 Spray Gun, Shut-Off (HE, TE
Models) 1
4 4-011106 Wand, Straight (ET, ZE
Models) 1
4-0110531 Wand, SS 15.5” (TE, HE
Models) 1
5
3
1
2
6
7
Pressure Nozzle
Brass Soap
Nozzle
4
ITEM PART NO. DESCRIPTION QTY
5 2-2000 Coupler, 1/4” Female 1
2-0119 Quick Coupler O-Ring 1
6 4-12803015 Nozzle, 3.0 15° Yellow
(201406D, 201507D
2-11026D) 1
Nozzle, 4.0 15° Yellow (201006D,
201007D) 1
7 4-16540 Nozzle, Brass Soap 1
▲ Not Shown
