Shark HE Series User Manual

96-723, 97-715, 97-716, 97-717 • REV. 2/04
OPERATOR’S MANUAL
PRESSURE WASHER
6

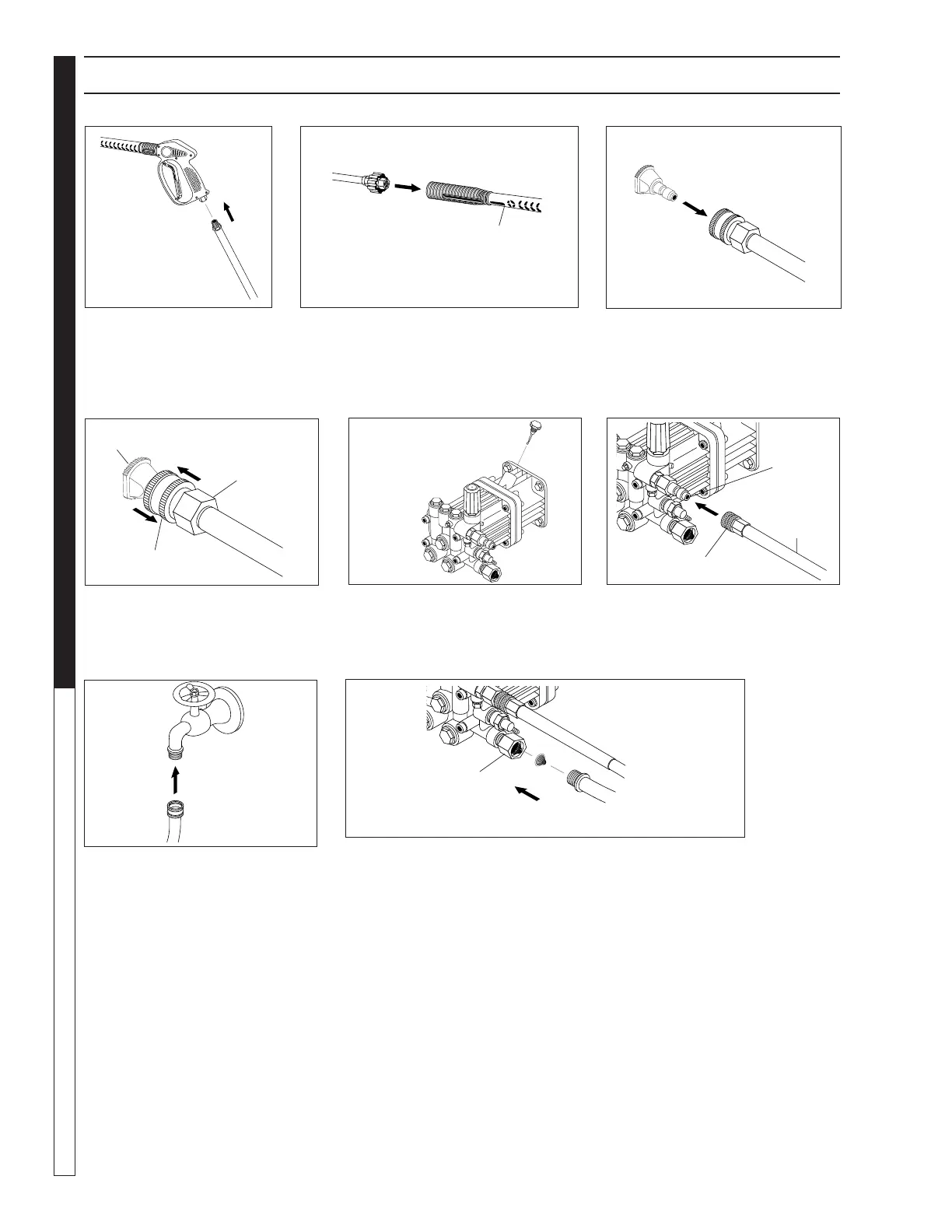

ASSEMBLY INSTRUCTIONS
STEP 1: Attach the high
pressure hose to the spray
gun using teflon tape on
hose threads.
STEP 4: Release the coupler col-
lar and push the nozzle until the
collar clicks. Pull the nozzle to
make sure it is seated properly.
STEP 6: Connect the high pressure
hose to the pump discharge fitting.
Push coupler collar forward until
secure.
STEP 2: Attach nozzle extension to spray
gun/wand. Tighten both by hand.
STEP 3: Pull the spring-loaded col-
lar of the wand coupler back to in-
sert your choice of pressure nozzle.
STEP 7: Connect garden hose to
the cold water source.
STEP 8: Connect the garden hose to pump water inlet. In-
spect inlets. CAUTION: Do not run the pump without wa-
ter or pump damage will result.
Safety
Latch
Spray
Gun
High Pressure
Hose
Nozzle
Extension
Spray Gun/
Wand
Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle
Wand
Coupler
Wand
Collar
Pump
Discharge
Fitting
High
Pressure
Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden
Hose
Coupler Collar
STEP 5: Remove shipping cap and
install oil dipstick. Check pump oil
level by using dipstick. Use 30 wt.
non detergent oil.
Dipstick
